Removal and Installation of Rear Wiper Motor: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear wiper arm. Refer to "REMOVAL AND INSTALLATION OF REAR WIPER ARM, ADJUSTMENT OF REAR WIPER ARM STOP LOCATION  ".
  2. Remove pivot cap.
  3. Remove back door finisher lower. Refer to "REMOVAL AND INSTALLATION ".
  4. Disconnect rear wiper motor connector.
  5. Remove rear wiper motor mounting bolts, and remove rear wiper motor.

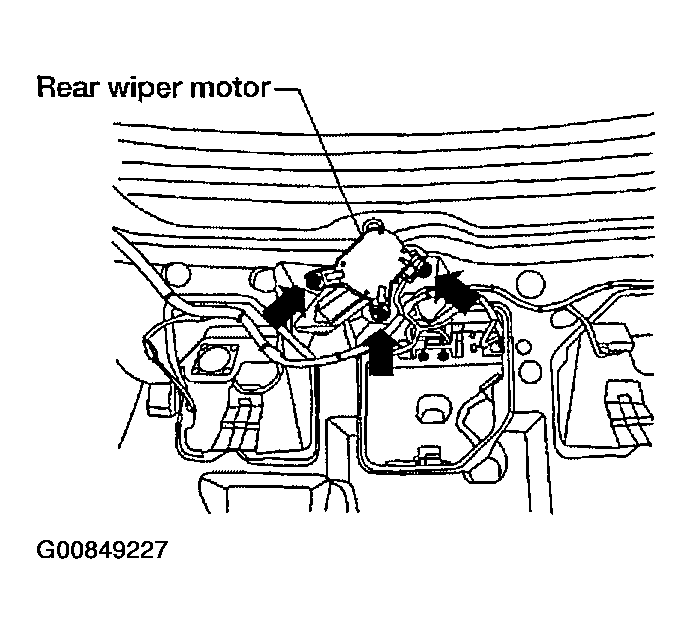

    Fig 1: Removing Rear Wiper Motor Mounting Bolts
    G00849227Courtesy of NISSAN MOTOR CO., U.S.A.
