Removal and Installation of Rear Wiper Motor: Notes

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

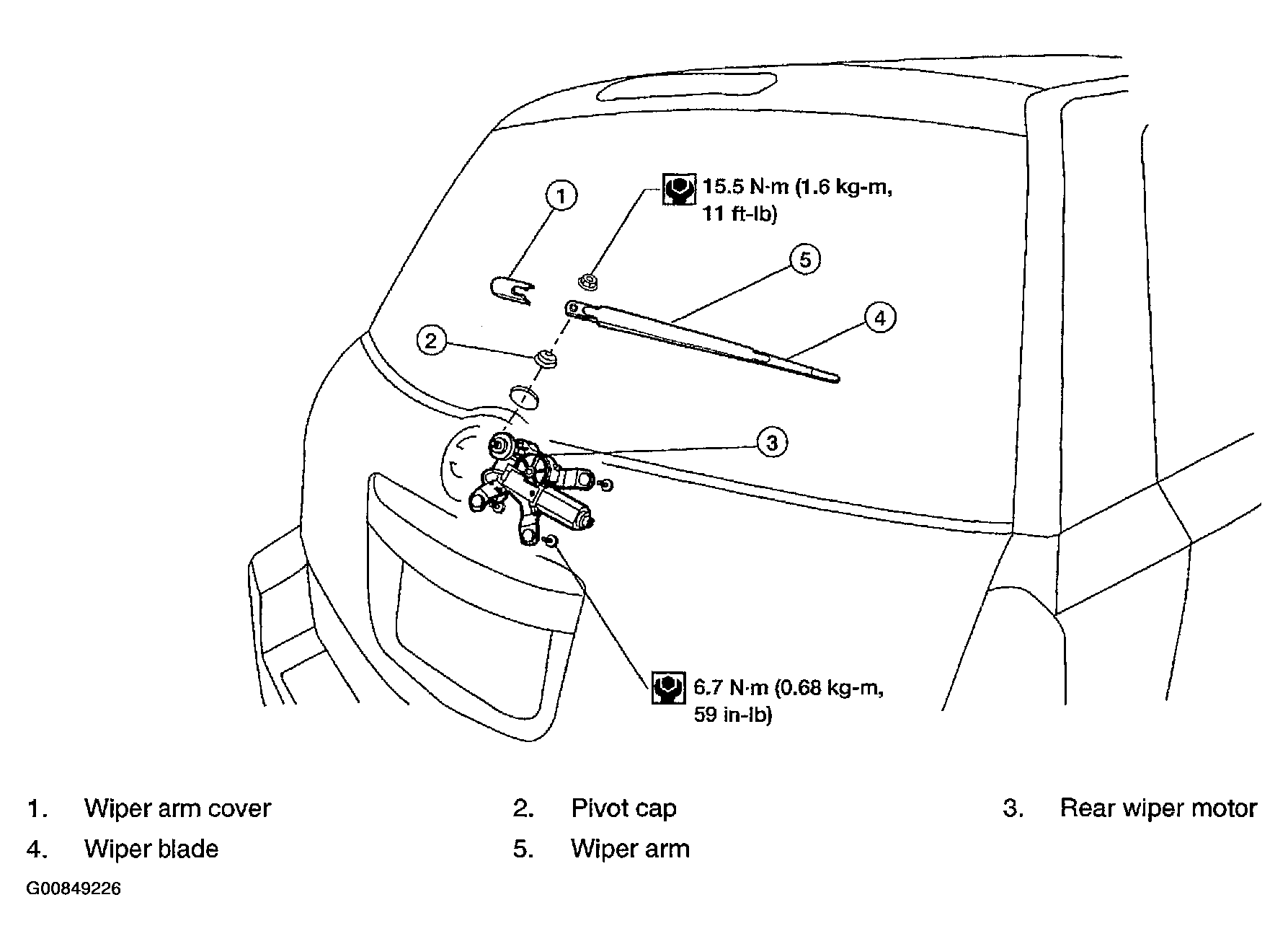

Fig 1: Removing Rear Wiper Motor
G00849226Courtesy of NISSAN MOTOR CO., U.S.A.
