Removal and Installation of Rear Wiper Motor: Installation
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not drop the wiper motor or cause it to contact other parts.

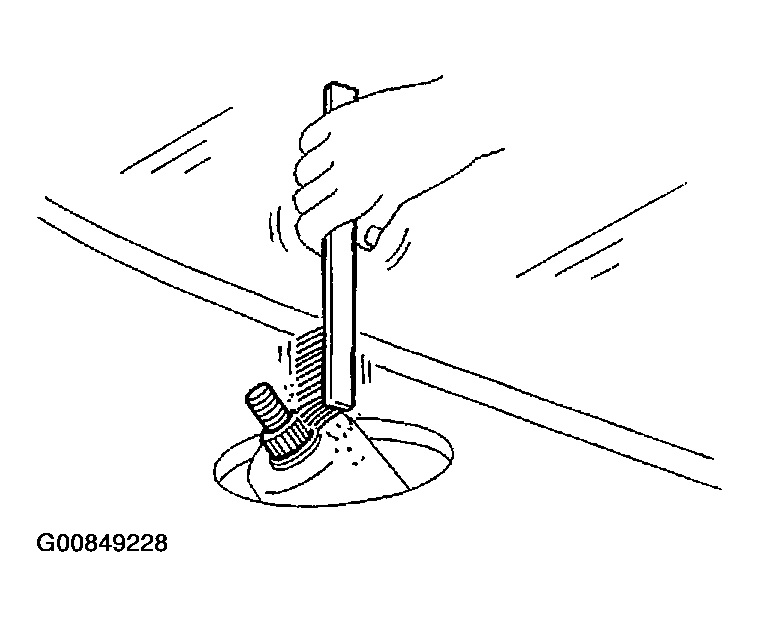

- Clean up the pivot area as illustrated. This will reduce possibility of wiper arm looseness.
- Install rear wiper motor to the vehicle.
- Attach pivot cap.
- Connect rear wiper motor connector.
- Install back door finisher lower. Refer to "REMOVAL AND INSTALLATION ".
- Attach wiper arm. Refer to "REMOVAL AND INSTALLATION OF REAR WIPER ARM, ADJUSTMENT OF REAR WIPER ARM STOP LOCATION ".
