Removal and Installation for Rear Washer Nozzle: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door finisher upper. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove rear washer tube from nozzle.
  3. Release retaining clips, and remove washer nozzle.

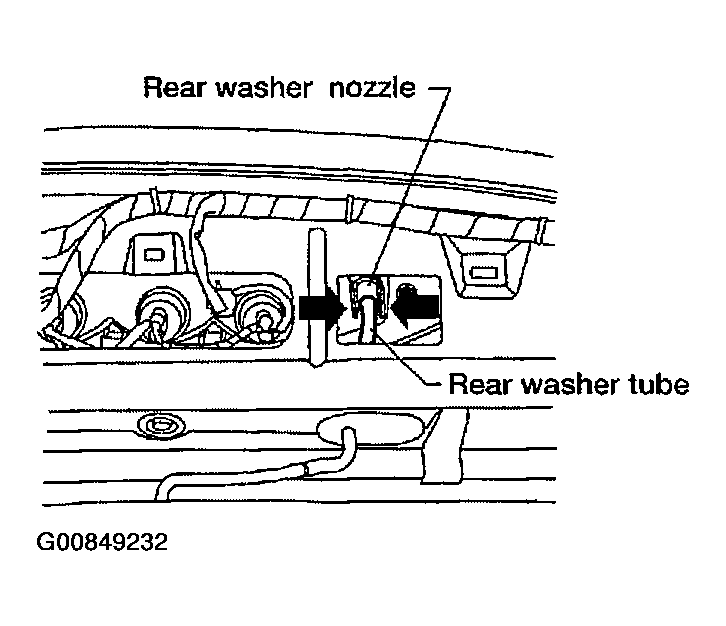

    Fig 1: Removing Rear Washer Tube From Nozzle
    G00849232Courtesy of NISSAN MOTOR CO., U.S.A.
