Rear Wiper Stop Position Is Incorrect

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-II. With "WIPER" data monitor, make sure "RR WIPER STOP" turns ON-OFF according to wiper operation.

When wiper switch is OFF: RR WIPER STOP OFF

OK or NG
1. OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
2. NG: GO TO 2.

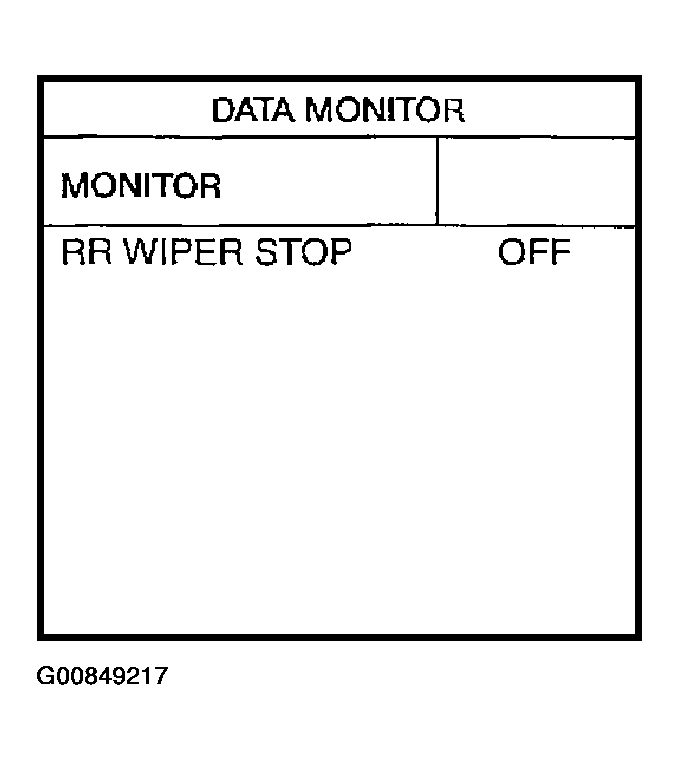

  Fig 1: Displaying "RR WIPER STOP" With Consult-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK REAR WIPER MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear wiper motor connector.
3. Check continuity between BCM harness connector M20 terminal 59 (BR) and rear wiper motor harness connector D507 terminal P (BR).
  Continuity should exist.
OK or NG
1. OK: GO TO 3.
2. NG: Repair harness or connector.

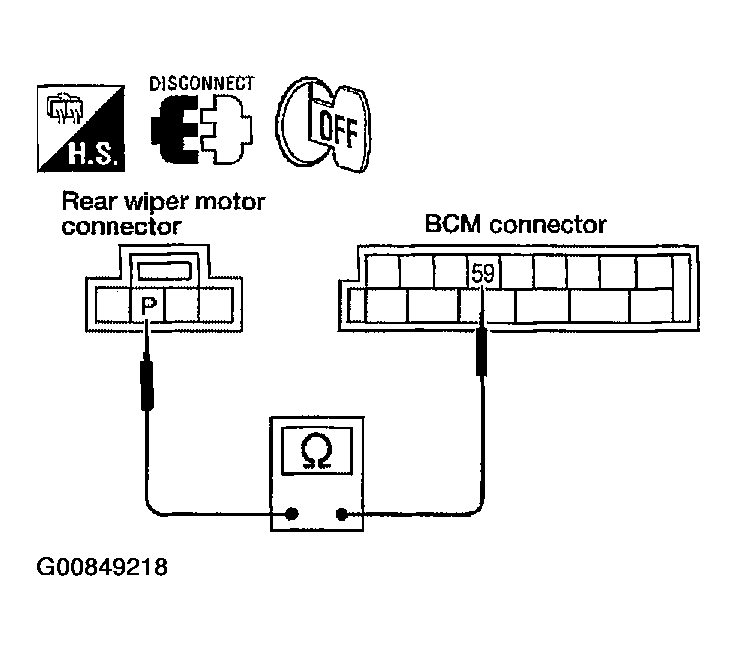

  Fig 2: Checking Continuity Between BCM Connector M20 Terminal And Rear Wiper Motor Connector D507
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK REAR WIPER MOTOR SHORT CIRCUIT
Check continuity between rear wiper motor harness connector D507 terminal P (BR) and ground.

Continuity should not exist.

OK or NG
1. OK: GO TO 4.
2. NG: Repair harness or connector.

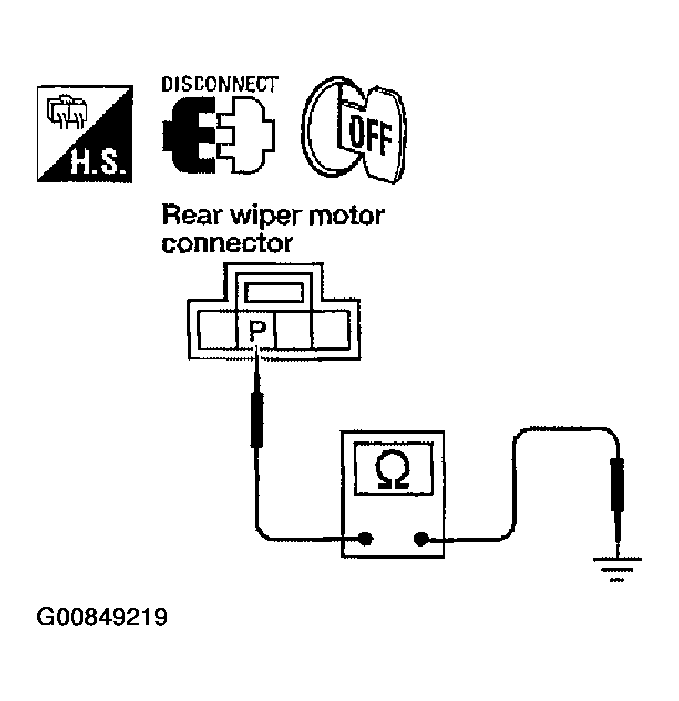

  Fig 3: Checking Continuity Between Rear Wiper Motor Harness Connector D507 Terminal P And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK GROUND CIRCUIT
Check continuity between rear wiper motor harness connector D507 terminal E (B) and ground.

Continuity should exist.

OK or NG
1. OK: GO TO 5.
2. NG: Repair harness or connector.

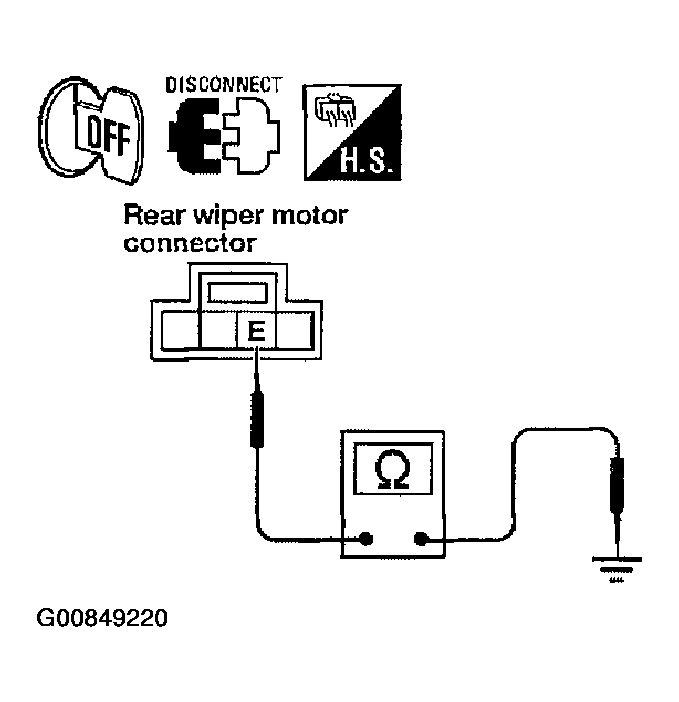

  Fig 4: Checking Continuity Between Rear Wiper Motor Harness Connector D507 Terminal E And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK AUTO STOP SIGNAL
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between rear wiper motor harness connector D507 terminal P (BR) and ground.
  Battery voltage should exist.
OK or NG
1. OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
2. NG: Replace rear wiper motor. Refer to "REMOVAL AND INSTALLATION OF REAR WIPER MOTOR ".

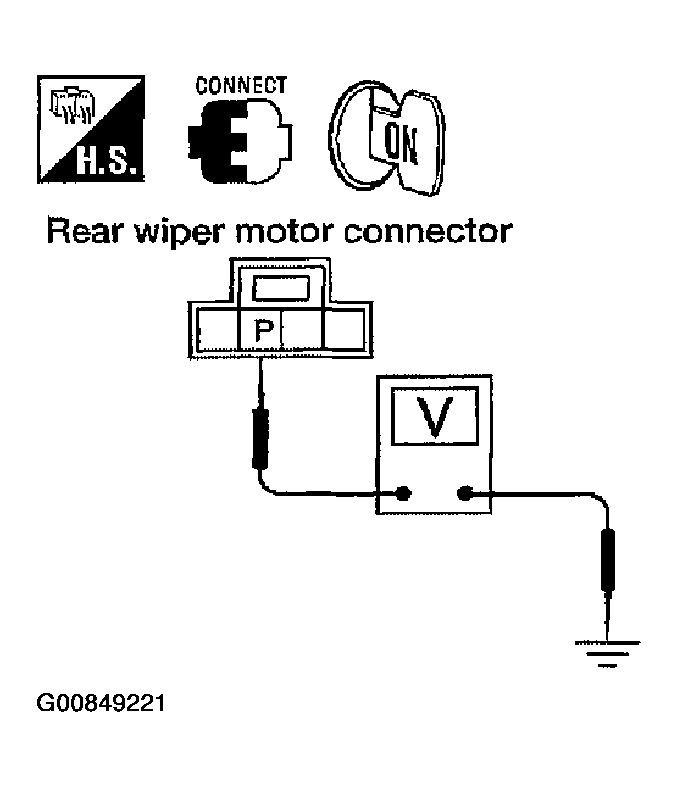

  Fig 5: Checking Voltage Between Rear Wiper Motor Harness Connector D507 Terminal P And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
