Rear Washer Nozzle Adjustment

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Adjust washer nozzle with suitable tool as shown in the figure.
Adjustable range: +/-15° (In any direction)

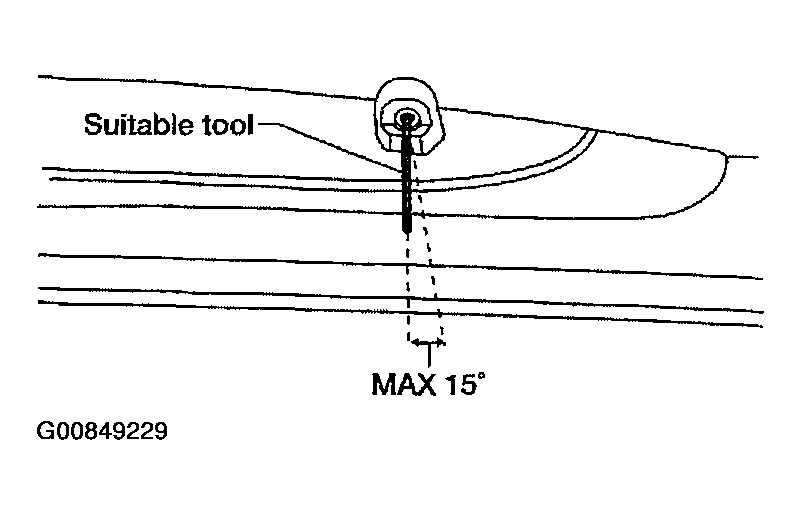

Fig 1: Adjusting Washer Nozzle With Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

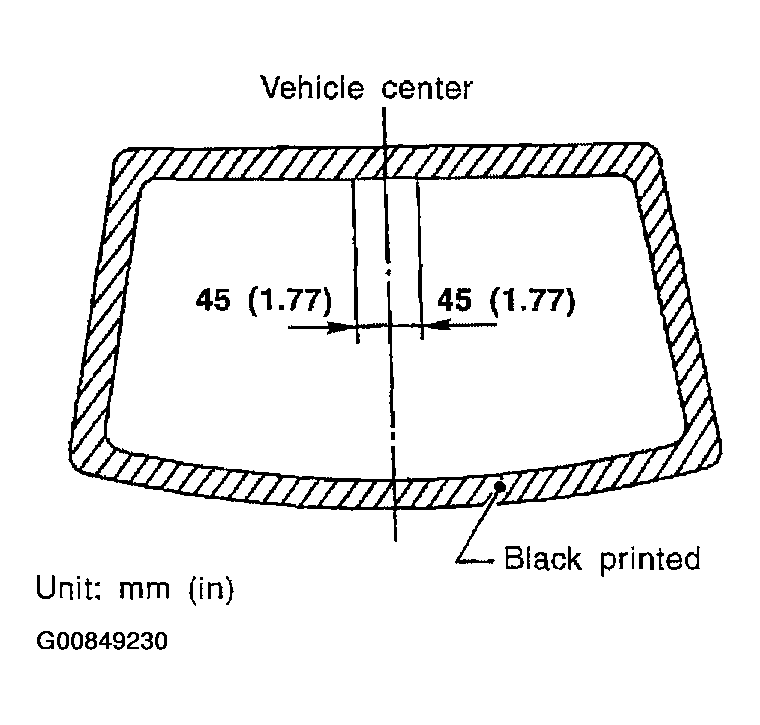

Fig 2: Identifying Vehicle Center Distance
Courtesy of NISSAN MOTOR CO., U.S.A.
