Only Rear Wiper Intermittent Does Not Operate

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK COMBINATION SWITCH INPUT SIGNAL

    Select "BCM" on CONSULT-II. With "WIPER" data monitor, make sure "RR WIPER INT" turns ON-OFF according to operation of wiper switch.

    When rear wiper switch is in INT: RR WIPER INT ON position

    OK or NG

    1. OK: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
    2. NG: Check the wiper switch. Refer to "BCM WIPER SWITCH READING FUNCTION  ".

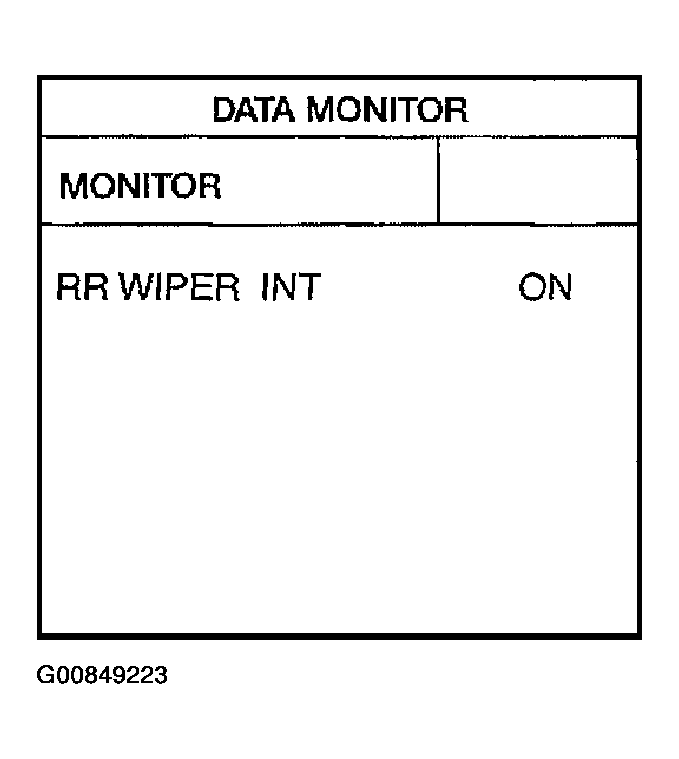

      Fig 1: Displaying "RR WIPER INT" With Consult-II
      G00849223Courtesy of NISSAN MOTOR CO., U.S.A.
