Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "WIPER" on "SELECT TEST ITEM" screen.
  2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
  3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.

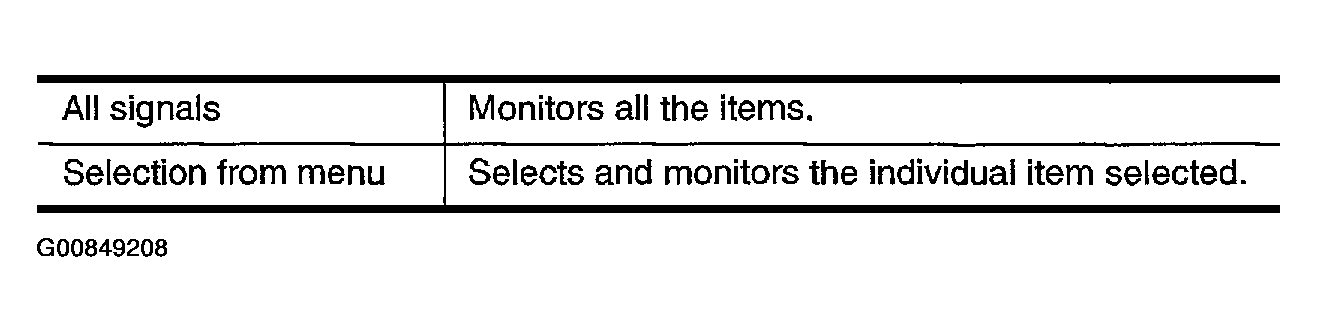

    Fig 1: All Signal Description Table
    G00849208Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START".
  5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is selected, all the items will be monitored.
  6. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".


  1. Touch "WIPERS" on the "SELECT TEST ITEM" screen.
  2. Touch "ACTIVE TEST" on the "SELECT DIAG MODE" screen.
  3. Touch item to be tested and check operation of the selected item.
  4. During the operation check, touching "BACK" deactivates the operation.
