BCM - Operation Table of Combination Switches

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

BCM reads operation status of combination switch using combinations shown in table below.

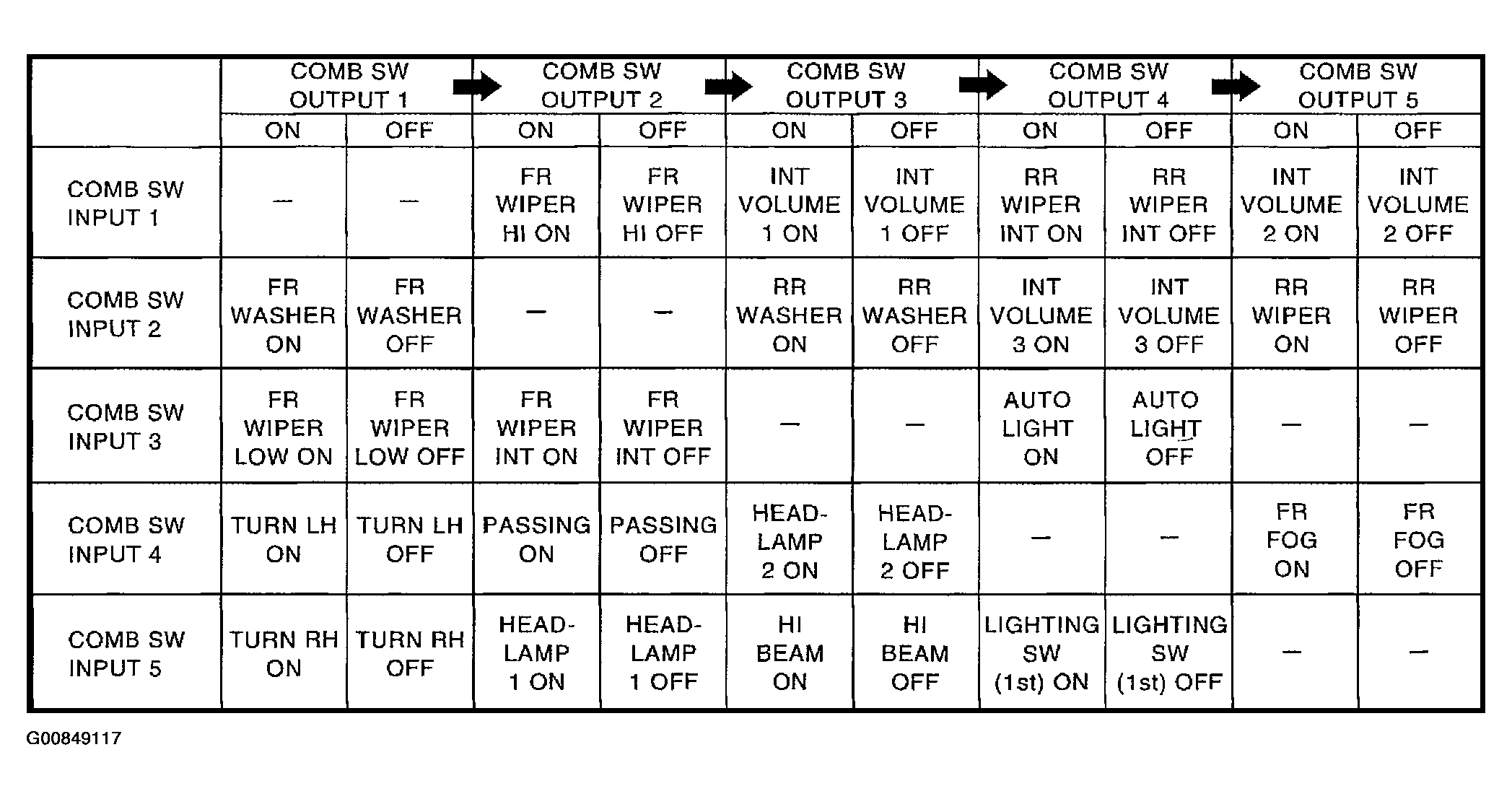

Fig 1: BCM - Combination Switches Operation Table
Courtesy of NISSAN MOTOR CO., U.S.A.
