Removal and Installation for Wiper Motor and Linkage: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the wiper motor, and stop it at the auto stop position.
  2. Remove wiper arms from the vehicle. Refer to "REMOVAL AND INSTALLATION FOR FRONT WIPER ARMS, ADJUSTMENT FOR WIPER ARMS STOP LOCATION ".
  3. Remove the cowl top extension. Refer to "REMOVAL AND INSTALLATION ".
  4. Disconnect wiper motor connector.
  5. Remove wiper frame assembly mounting bolts, and remove wiper frame assembly.
  6. Remove wiper motor from wiper frame assembly.

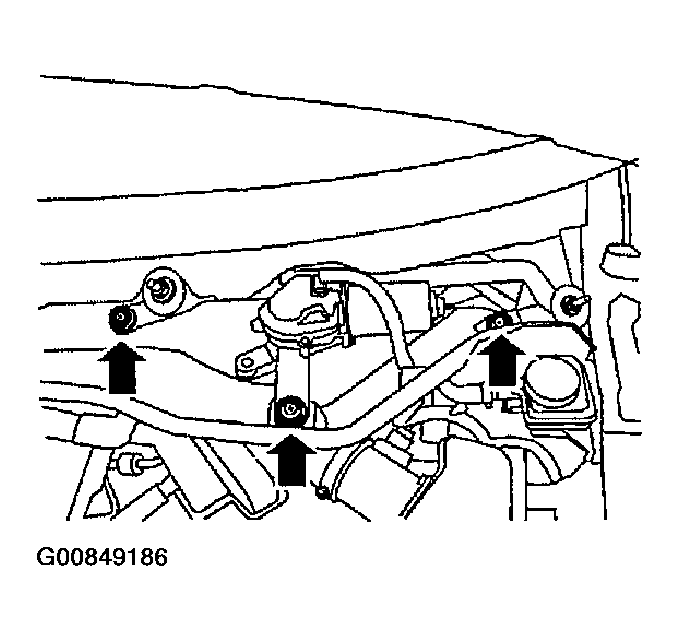

    Fig 1: Removing Wiper Frame Assembly Mounting Bolts, And Wiper Frame Assembly
    G00849186Courtesy of NISSAN MOTOR CO., U.S.A.
