Removal and Installation for Washer Tank

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Pull out washer tank inlet.
Remove fender protector. Refer to "REMOVAL AND INSTALLATION ".
Remove front and rear washer motor connector and washer fluid level sensor connector.
Remove washer tank screws.
Remove front and rear washer hoses, and remove the washer tank from the vehicle.

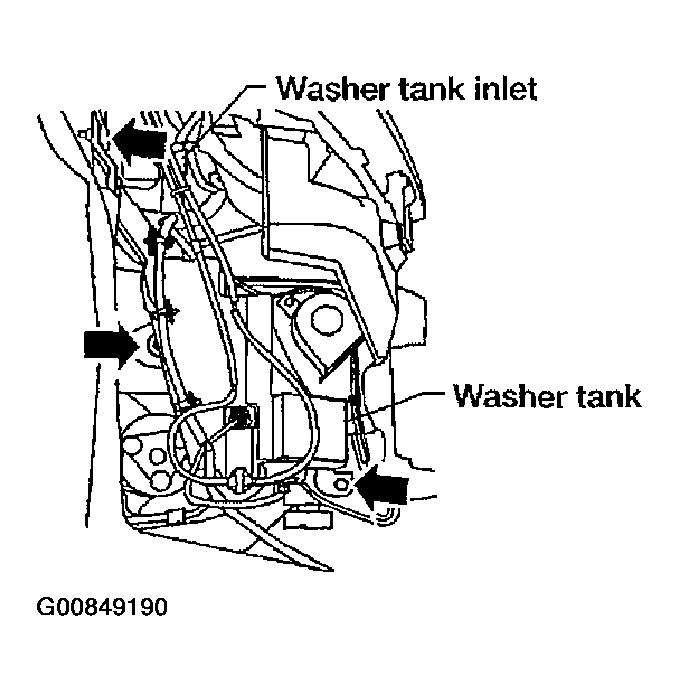

Fig 1: Identifying Front And Rear Washer Hoses, And Washer Tank
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: After installation, add water up to the upper level of the washer tank inlet, and check for water leaks.

Washer tank installation screw

Tightening torque: 5.5 N.m (0.56 kg-m, 49 in-lb)
