Removal and Installation for Washer Motor

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fender protector. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove front and rear washer motor connector and front and rear washer hoses.
  3. Pull out front and rear washer motor in the direction of the arrow as shown, and remove the front and rear washer motor from the washer tank.

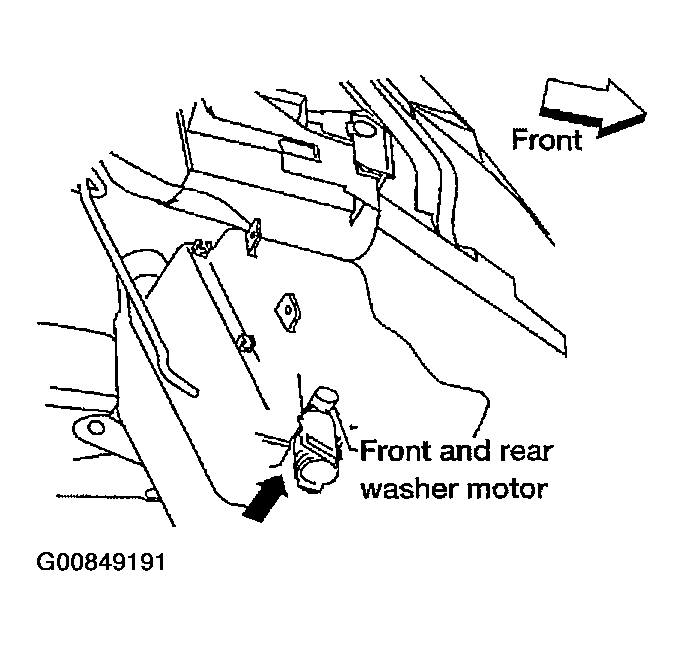

    Fig 1: Identifying Front And Rear Washer Motor
    G00849191Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: When installing front and rear washer motor, there should be no packing twists, etc.
