Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "WIPER" on the "SELECT TEST ITEM" screen.
  2. Touch "DATA MONITOR" on the "SELECT DIAG MODE" screen.
  3. Touch "ALL SIGNALS", "MAIN SIGNALS" or "SELECTION FROM MENU" on the "DATA MONITOR" screen.

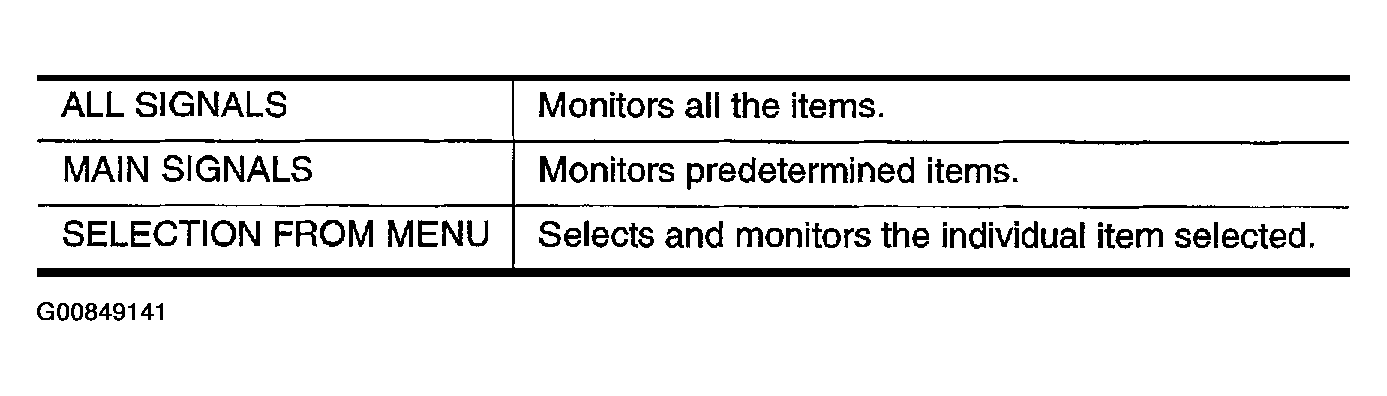

    Fig 1: Data Monitor Operation Procedure
    G00849141Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START".
  5. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is selected, all the items will be monitored.
  6. Touch "RECORD" while monitoring to record the status of the item being monitored. To stop recording, touch "STOP".


  1. Touch "WIPER" on the "SELECT TEST ITEM" screen.
  2. Touch "ACTIVE TEST" on the "SELECT DIAG MODE" screen.
  3. Touch item(s) to be tested and check operation of the selected item(s).
  4. During the operation check, touching "BACK" deactivates the operation.
