Consult-II Operation

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

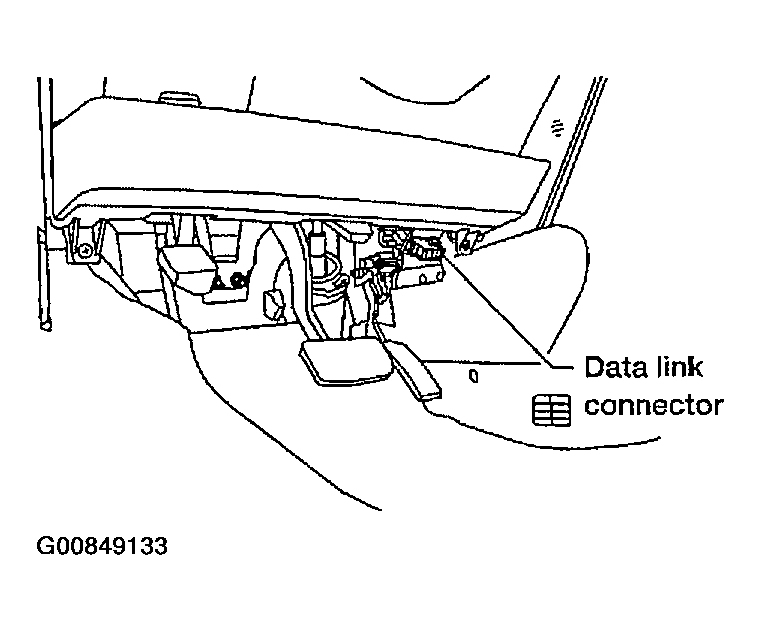

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

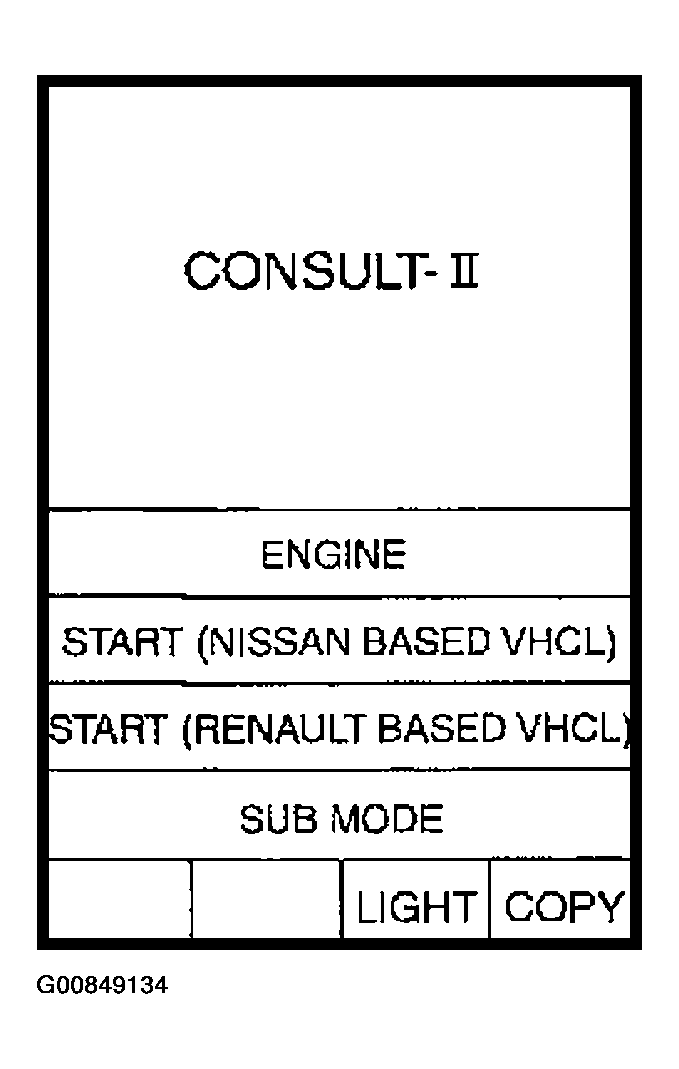

Touch "START (NISSAN BASED VHCL)".

Fig 2: Touch "Start (Nissan Based VHCL)" On Consult-II Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.

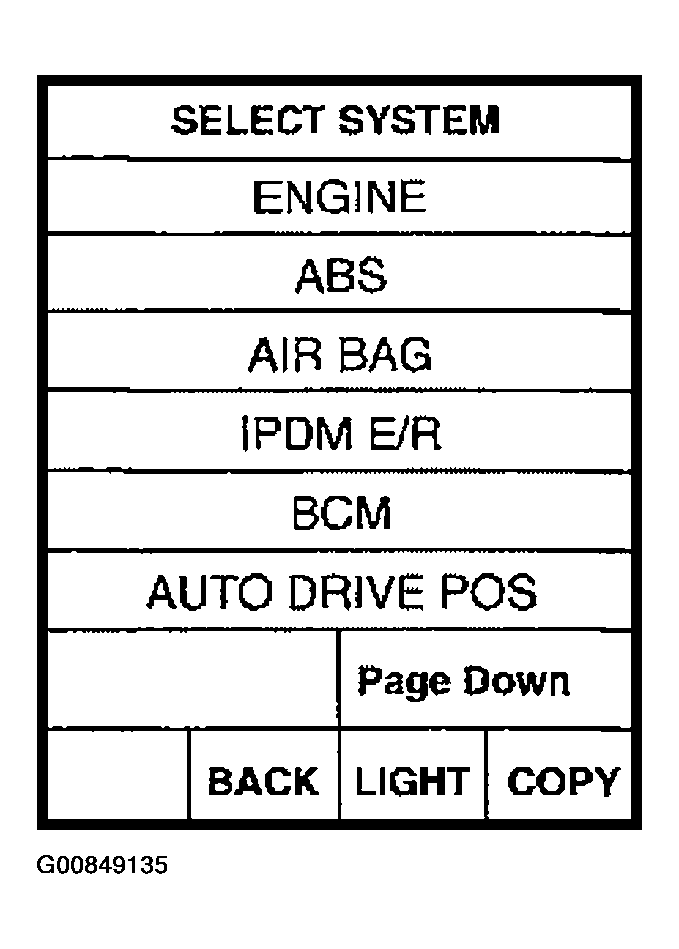

Touch "BCM" on the "SELECT SYSTEM" screen. If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Touch "BCM" On "Select System" Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.

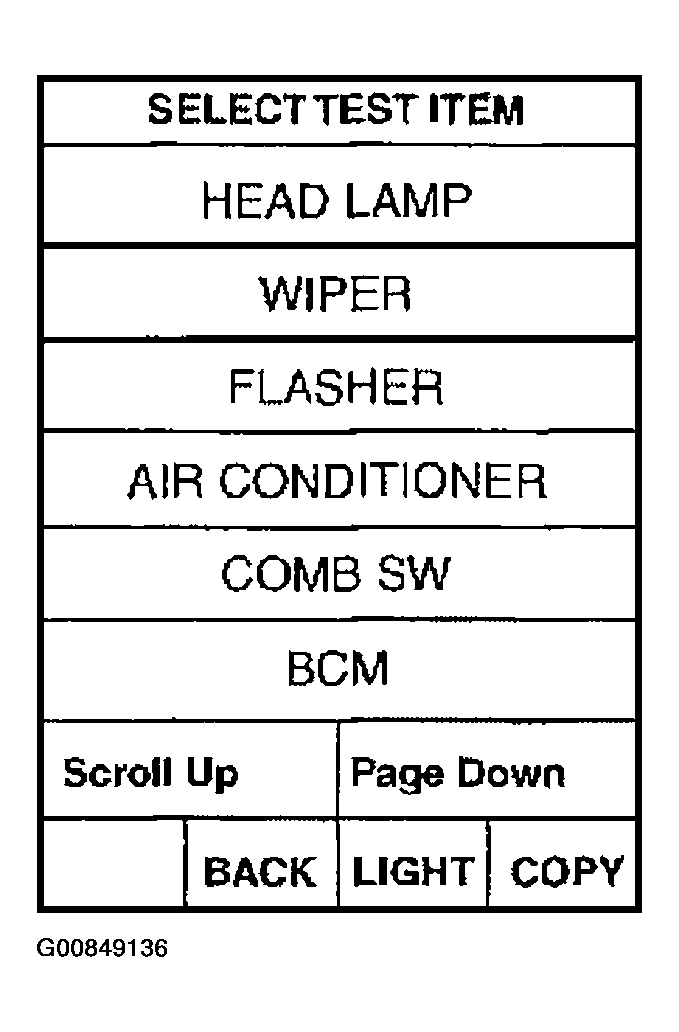

Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

Fig 4: Select Test Item Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
