With Tachometer (Qr25DE Models)

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

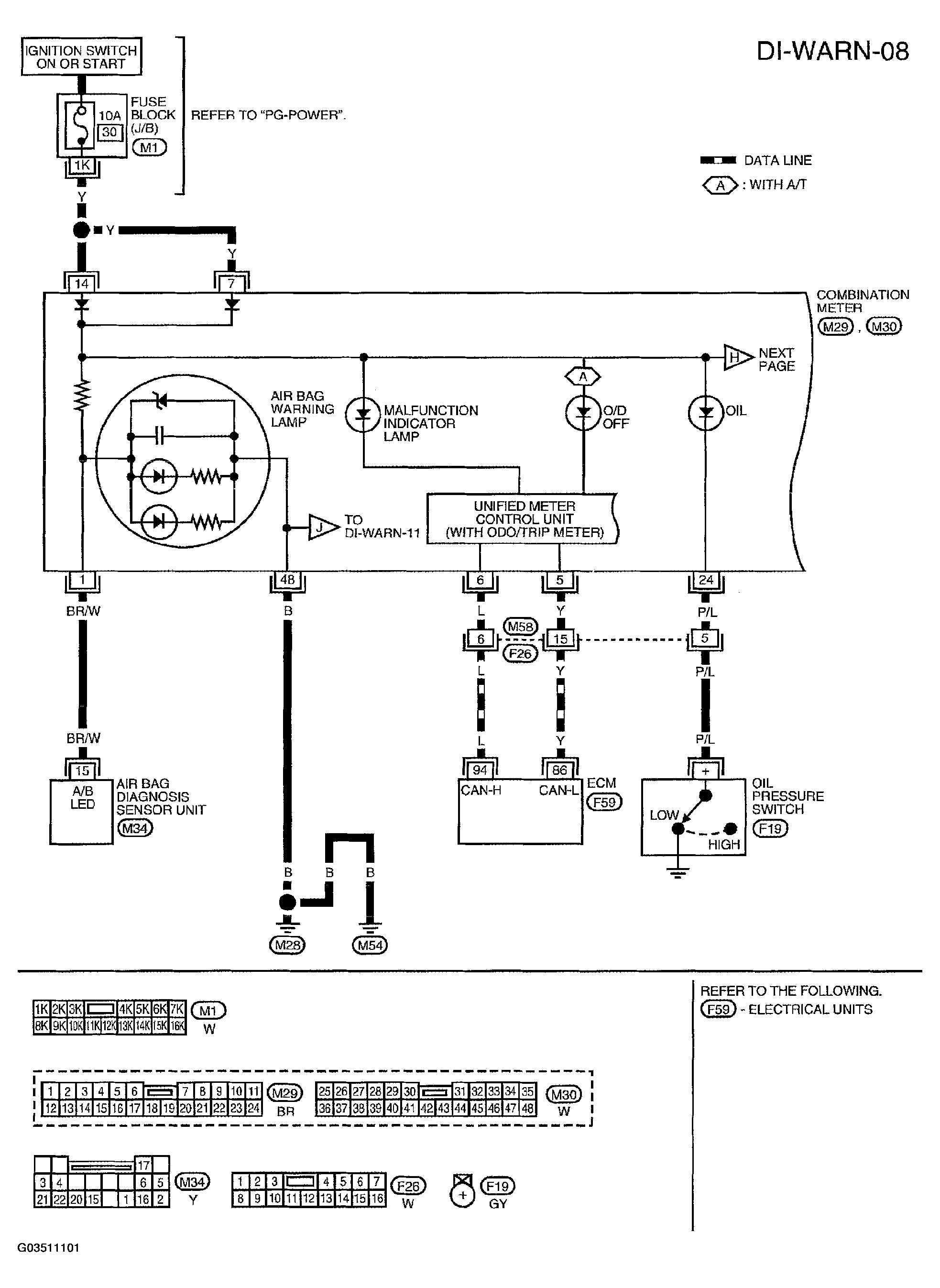

Fig 1: Wiring Diagram - DI-WARN-08

Courtesy of NISSAN MOTOR CO., U.S.A.

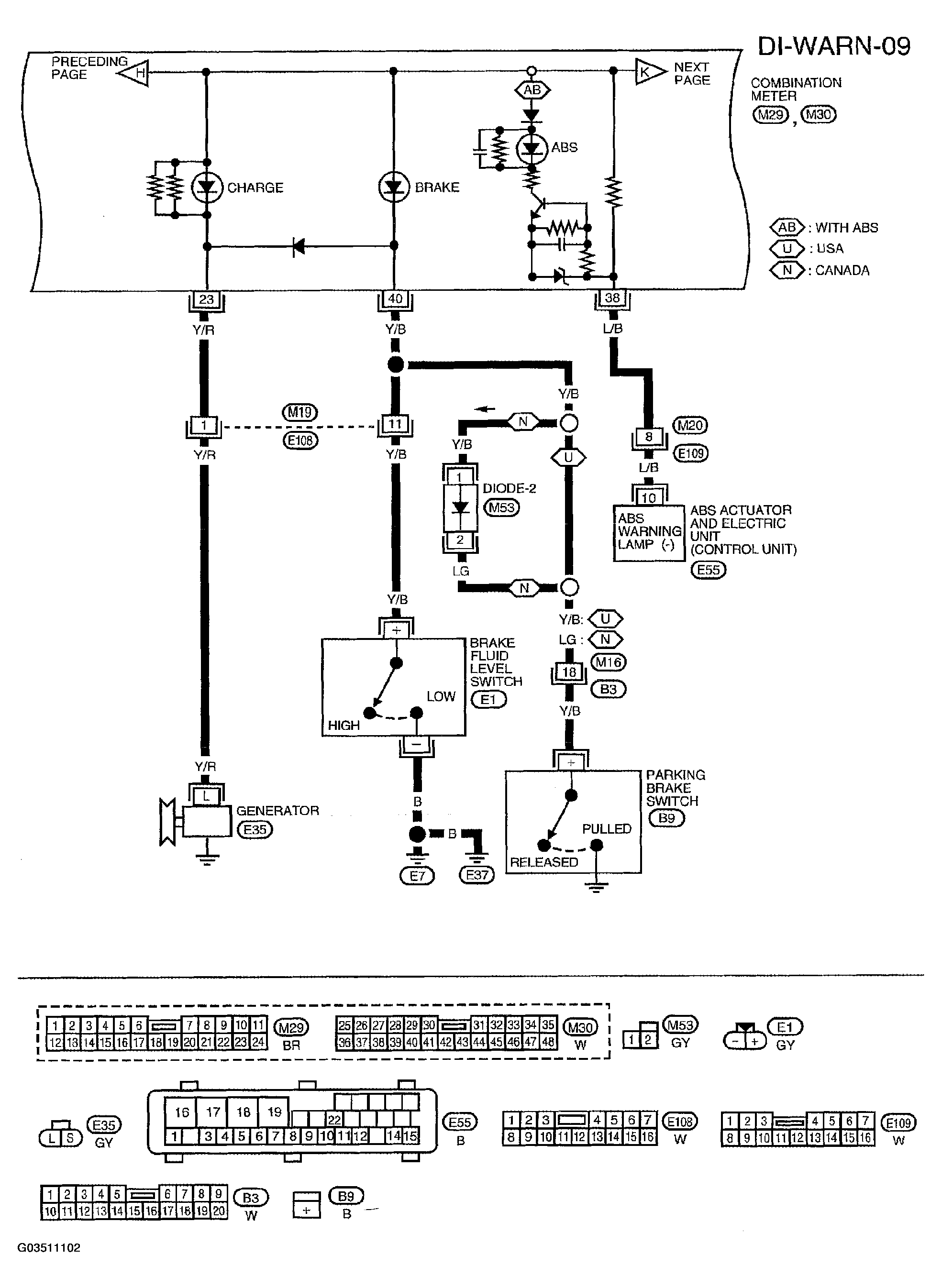

Fig 2: Wiring Diagram - DI-WARN-09

Courtesy of NISSAN MOTOR CO., U.S.A.

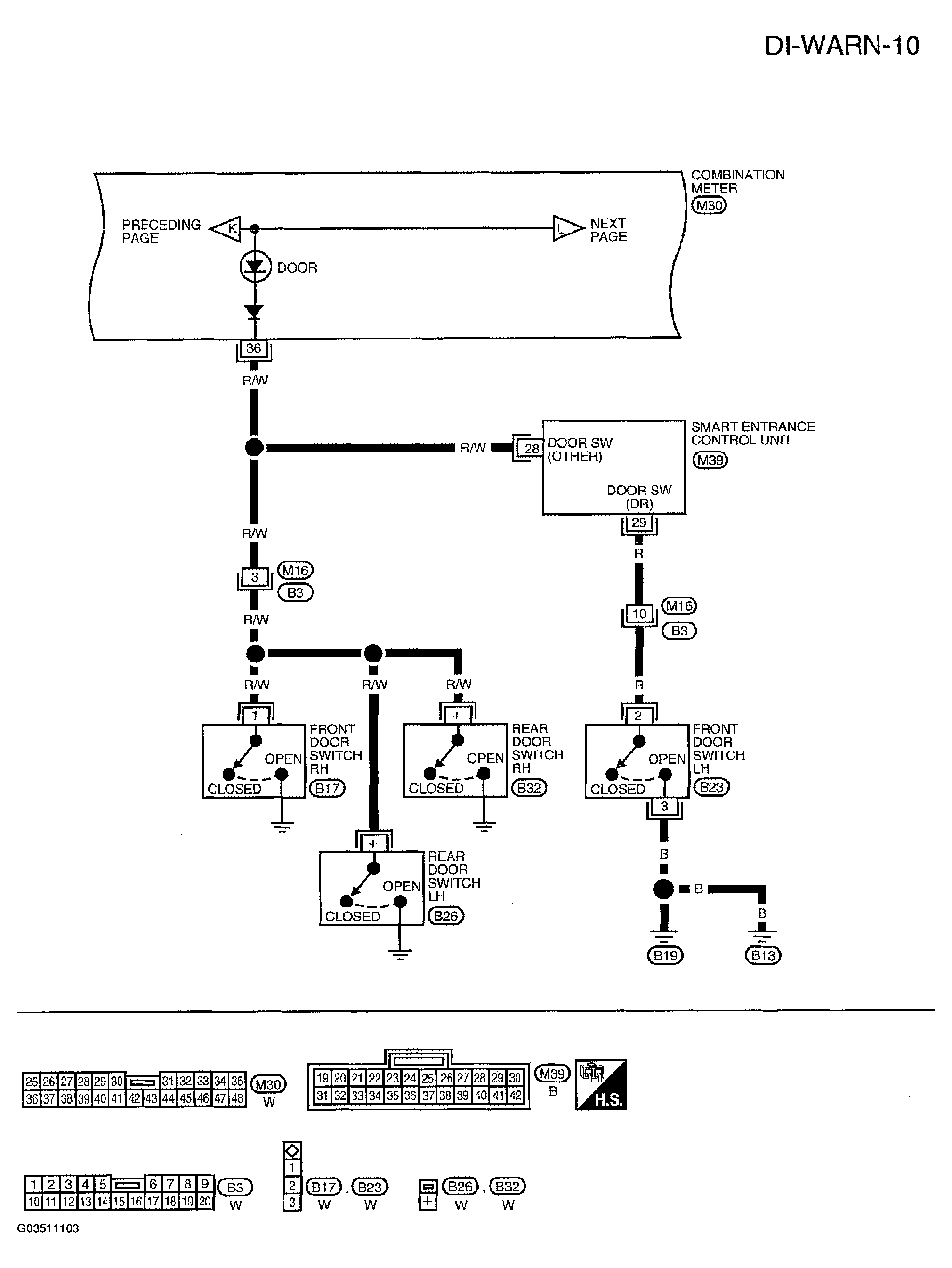

Fig 3: Wiring Diagram - DI-WARN-10

Courtesy of NISSAN MOTOR CO., U.S.A.

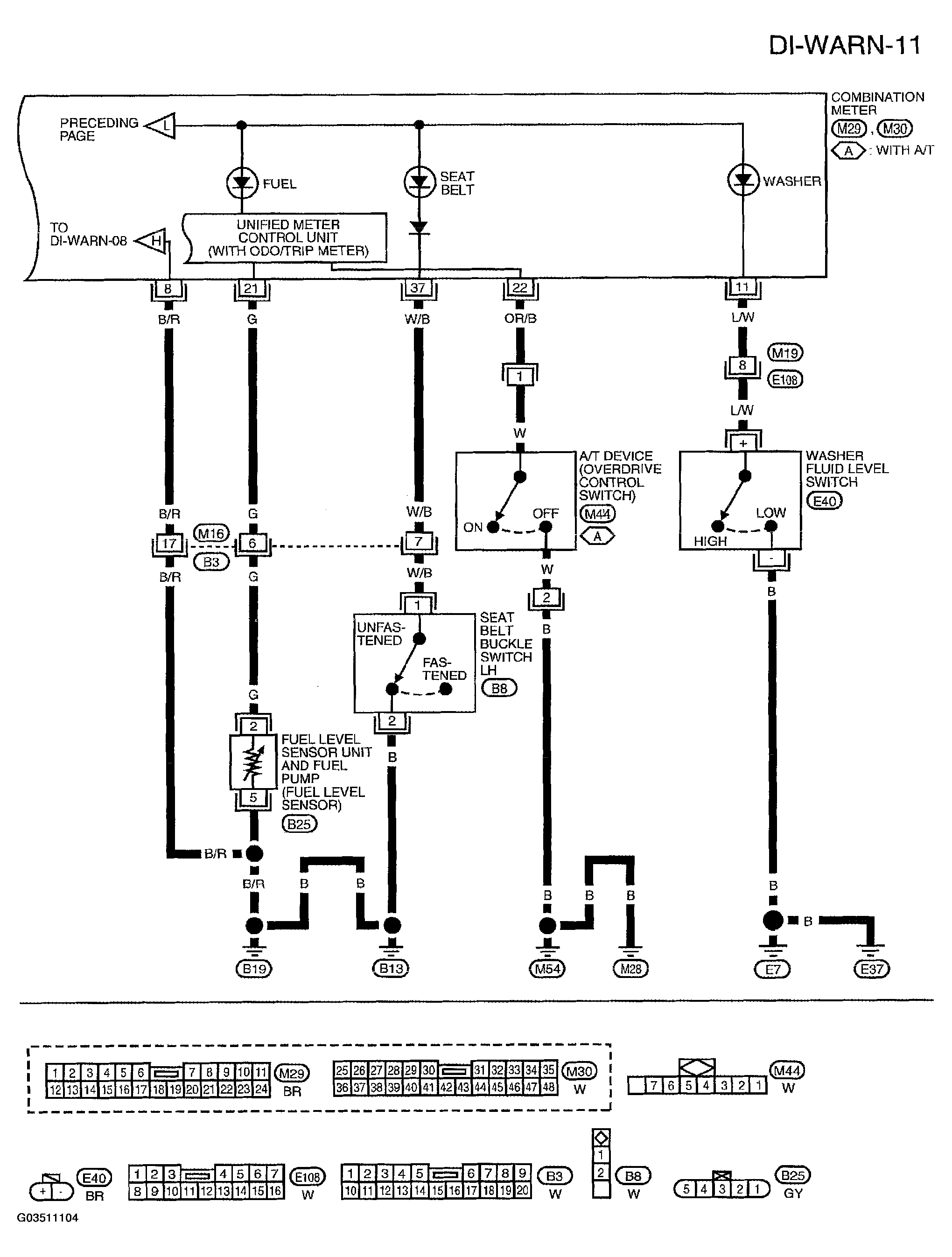

Fig 4: Wiring Diagram - DI-WARN-11

Courtesy of NISSAN MOTOR CO., U.S.A.
