Oil Pressure Switch Check

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

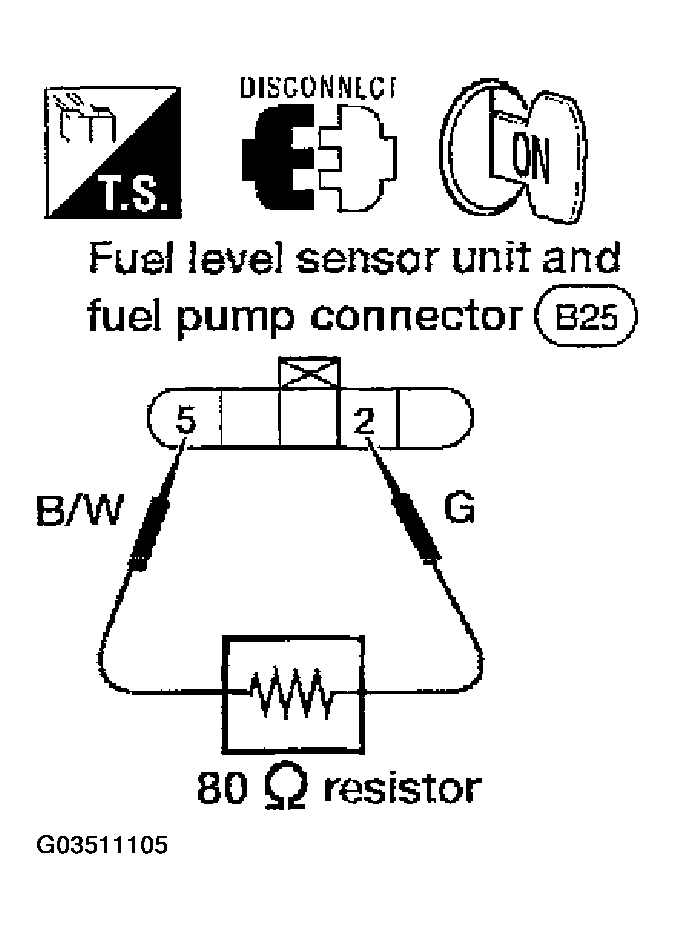

Fig 1: Connecting A Resistor (80 ohm) Between Fuel Level Sensor Unit And Fuel Pump Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

OIL PRESSURE SPECIFICATION

	Oil pressure kPa (kg/cm² , psi)	Continuity
Engine running	More than 10 - 20 (0.1 - 0.2, 1 - 3)	NO
Engine not running	Less than 10 - 20 (0.1 - 0.2, 1 - 3)	Yes

Check the continuity between the terminals of oil pressure switch and body ground.

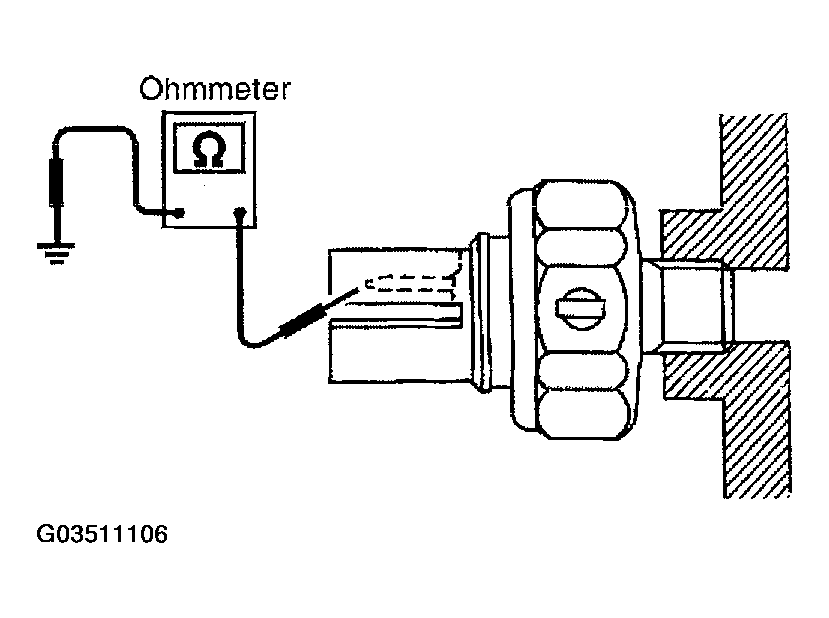

Fig 2: Identifying Terminals Of Oil Pressure Switch And Body Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
