Wiring Diagram - STOP/L -

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references to PG-POWER, see POWER DISTRIBUTION .

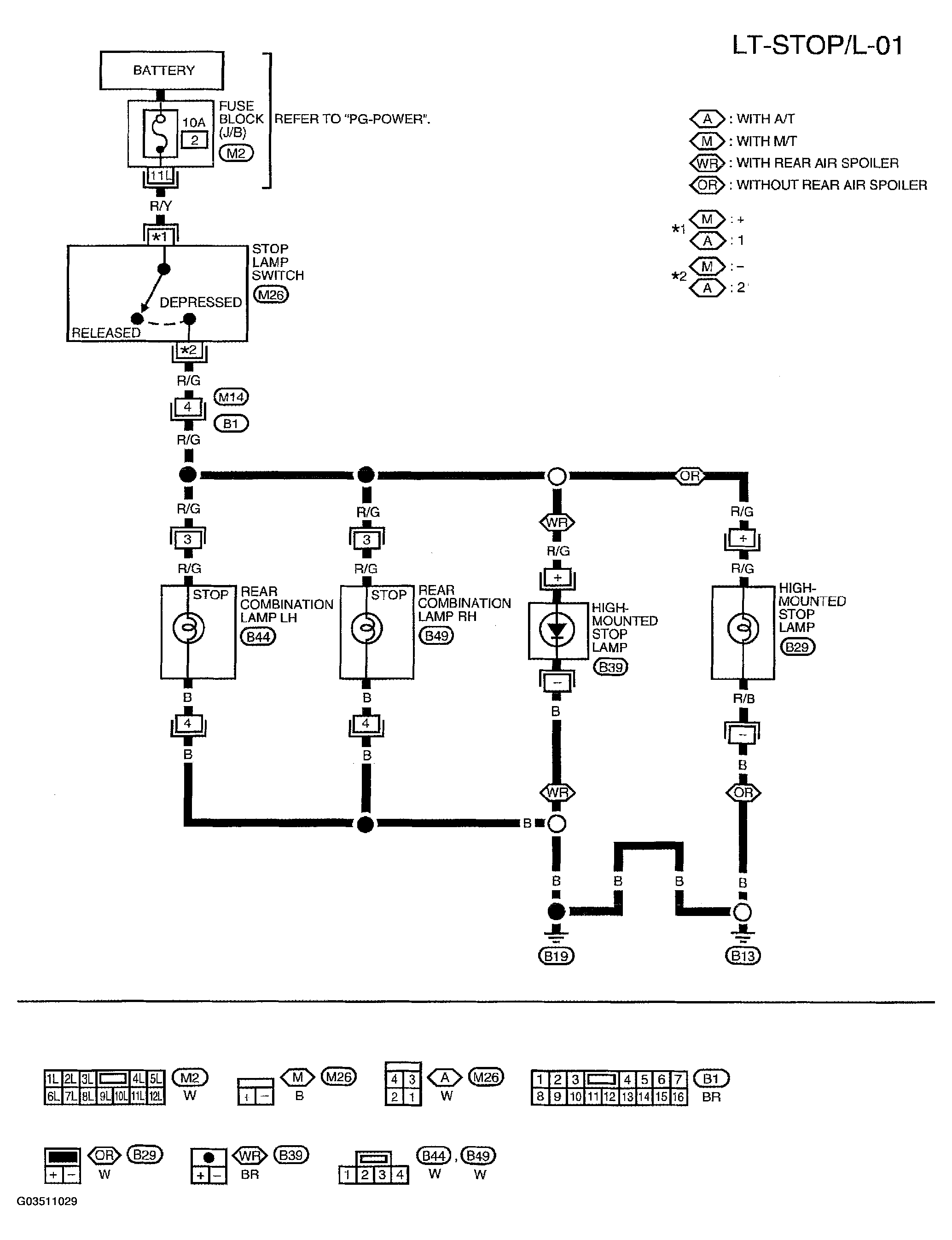

Fig 1: Wiring Diagram - LT-STOP/L-01

Courtesy of NISSAN MOTOR CO., U.S.A.
