Low Beam

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Turn headlamp low beam on.
Use adjusting screw to perform aiming adjustment.

CAUTION: Do not tighten adjusting screw beyond a torque of 1.67 N.m (17 kg-cm, 14.8 In-lb) or damage may occur.

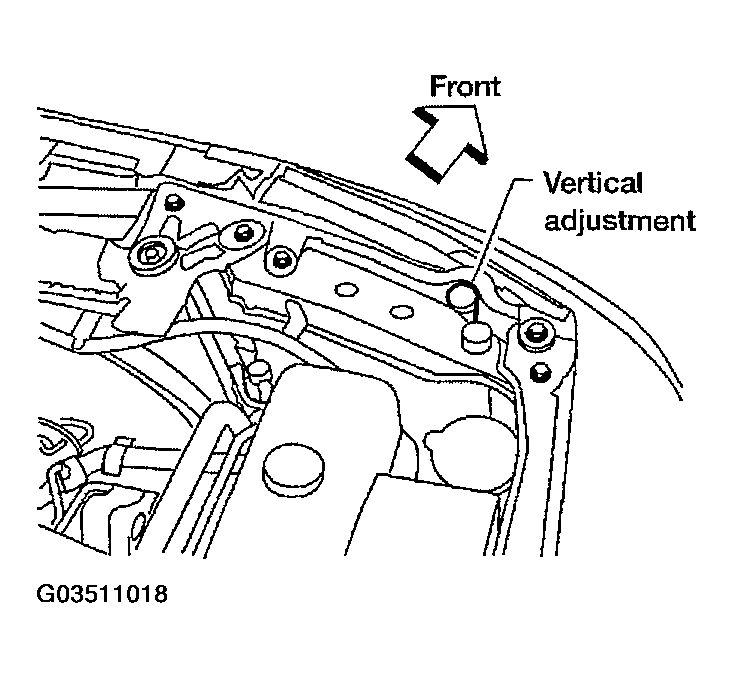

Fig 1: Using Adjusting Screw To Perform Aiming Adjustment

Courtesy of NISSAN MOTOR CO., U.S.A.

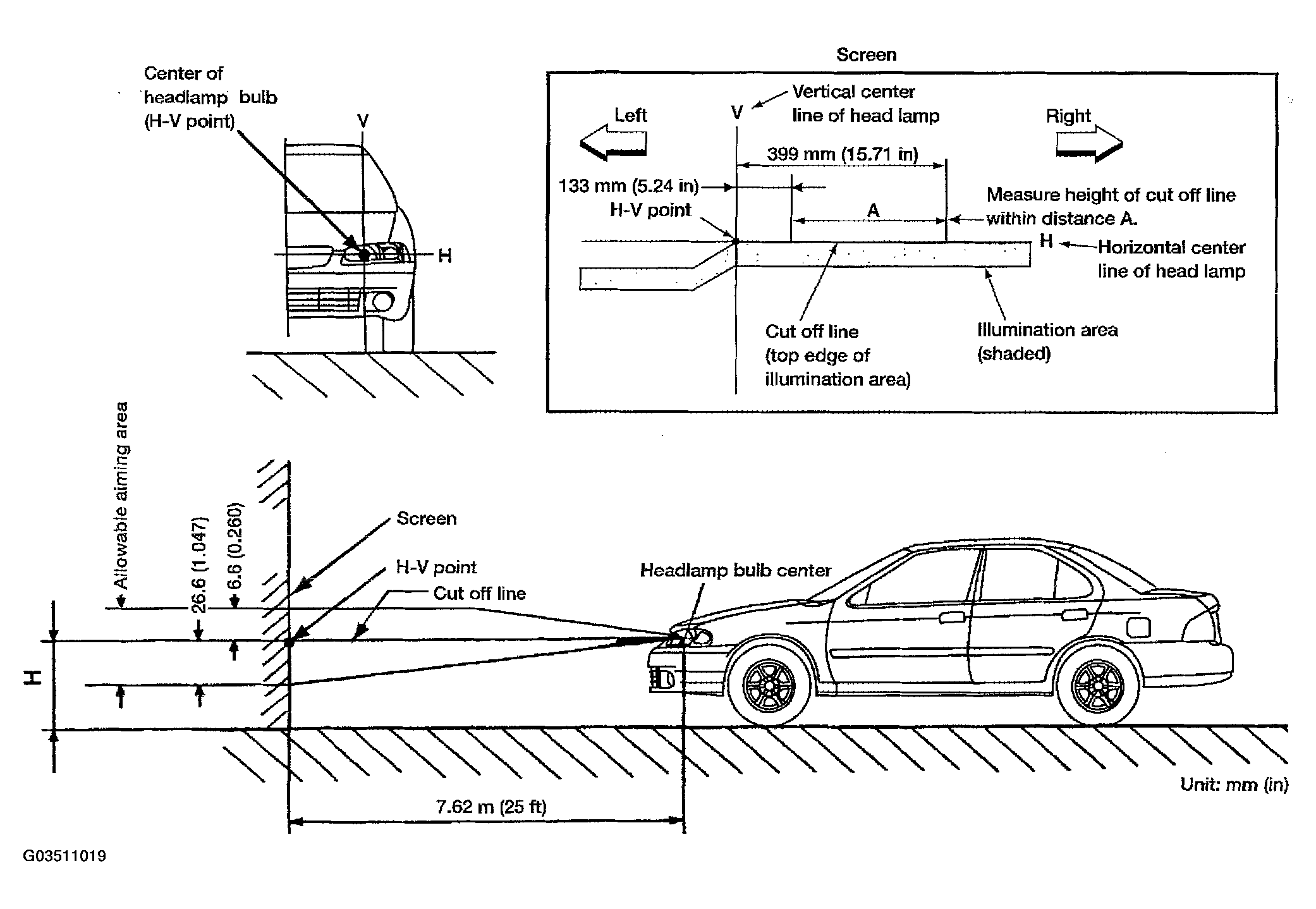

Fig 2: Identifying Aiming Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming. Use the aiming chart shown in the figure.

Basic Illuminating area for adjustment should be within the range shown on the aiming chart. Adjust headlamps accordingly.
