QG18DE Models

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

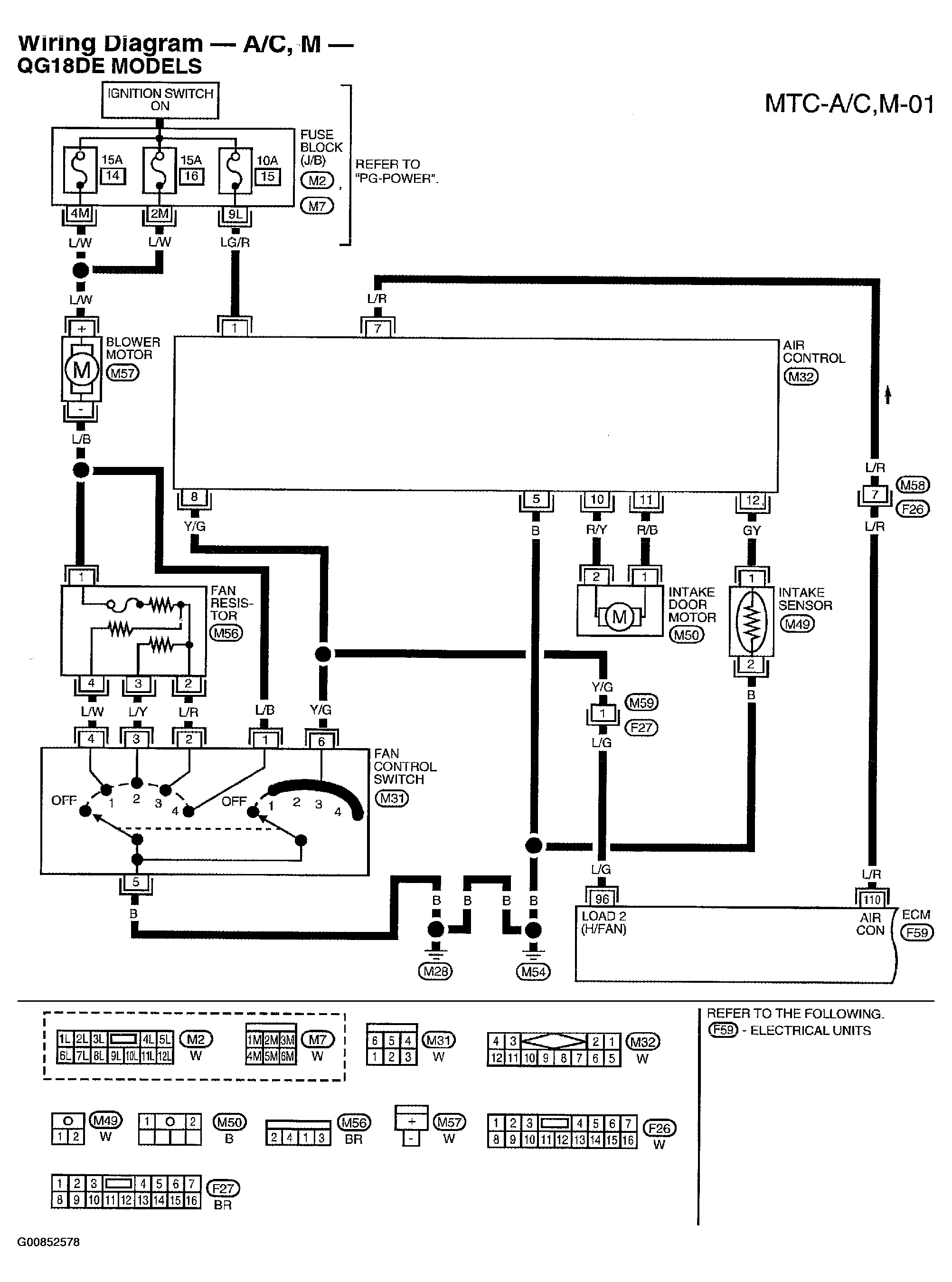

Fig 1: Wiring Diagram - MTC-AC, M-01

Courtesy of NISSAN MOTOR CO., U.S.A.

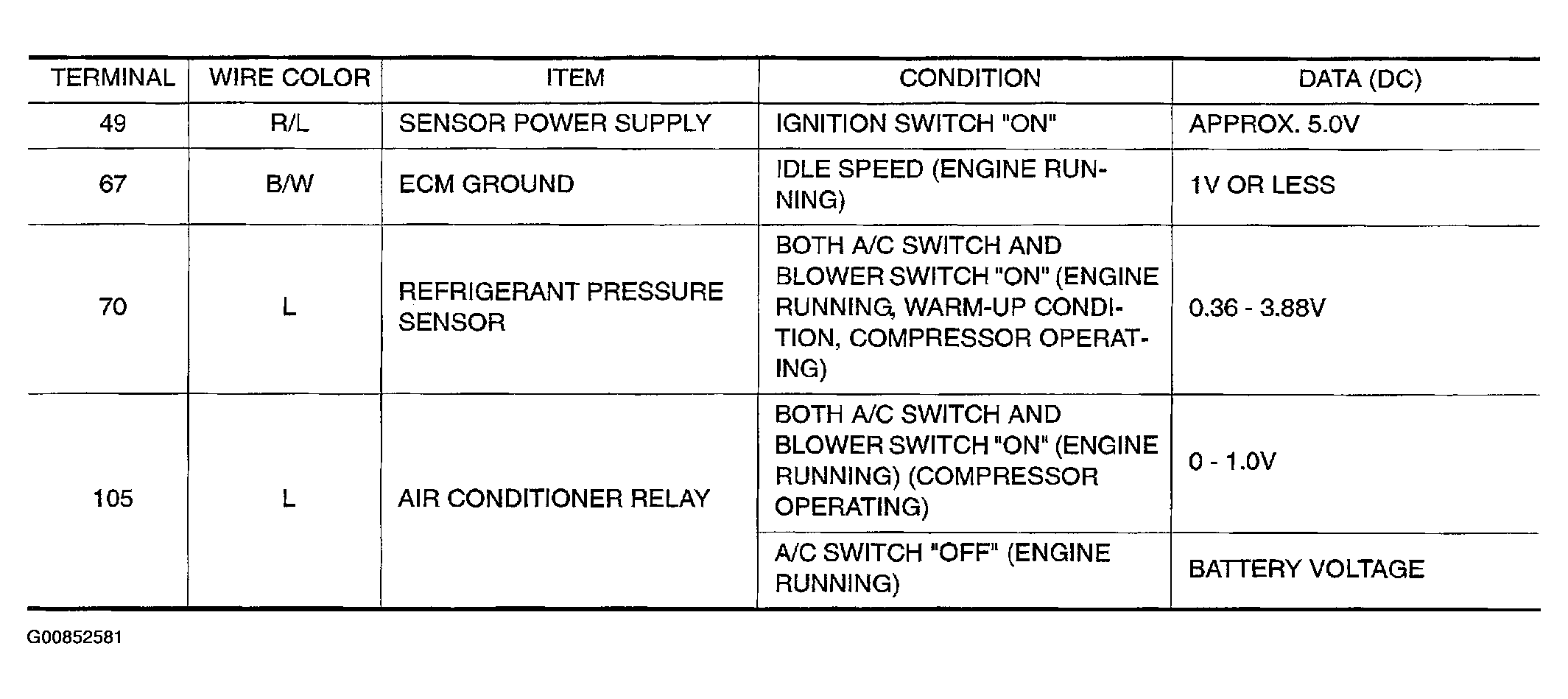

Fig 2: ECM TERMINALS AND REFERENCE VALUE MEASURED

Courtesy of NISSAN MOTOR CO., U.S.A.

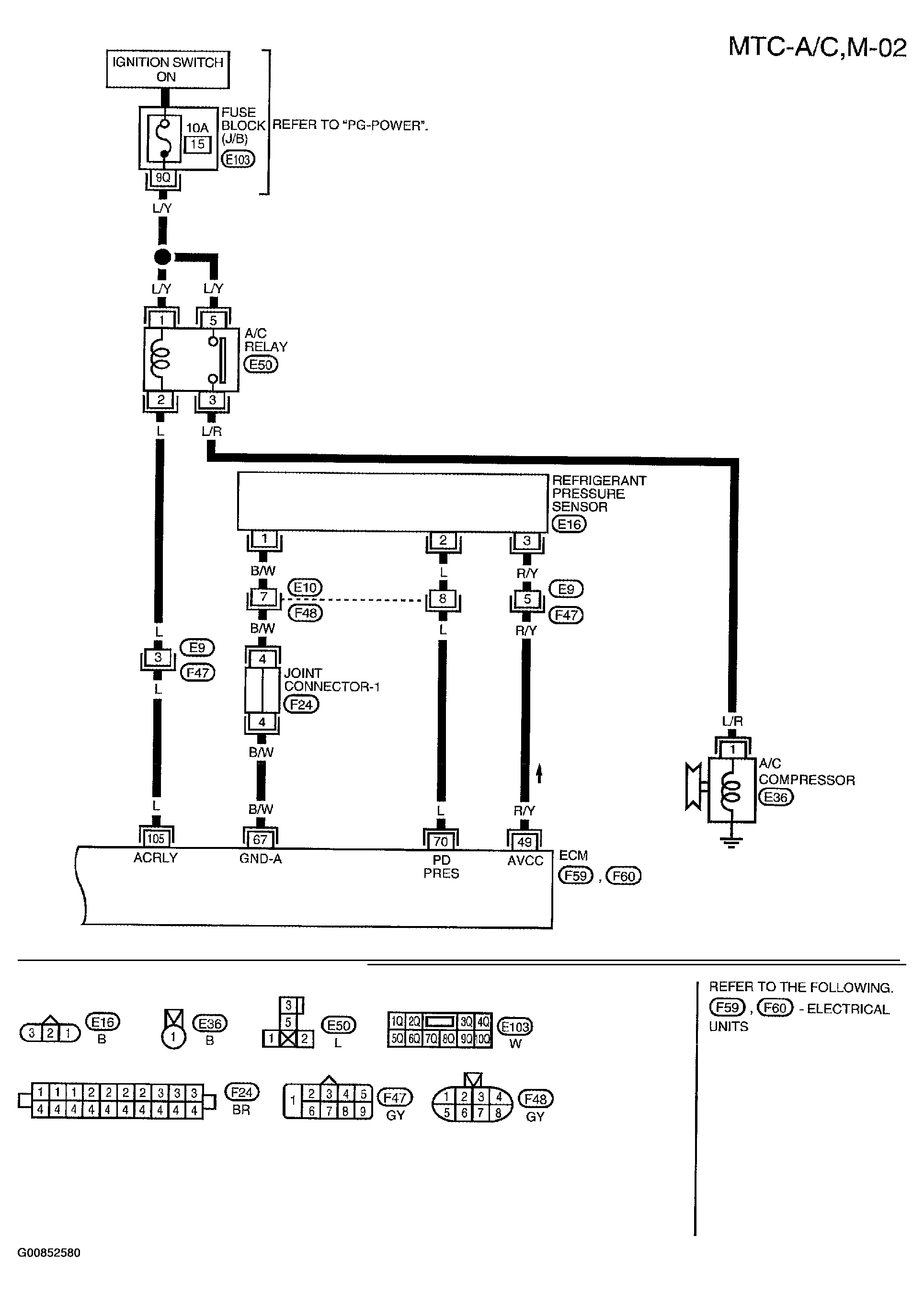

Fig 3: Wiring Diagram - MTC-AC, M-02

Courtesy of NISSAN MOTOR CO., U.S.A.

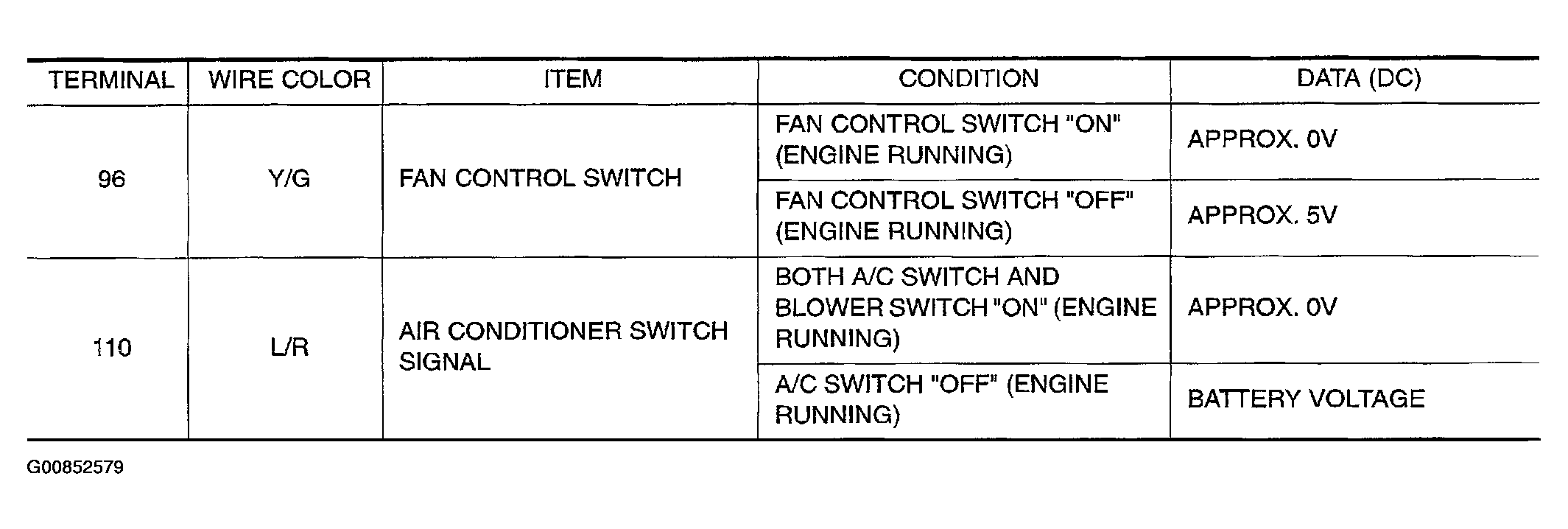

Fig 4: ECM TERMINALS AND REFERENCE VALUE MEASURED

Courtesy of NISSAN MOTOR CO., U.S.A.
