Refrigerant Pressure Sensor

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

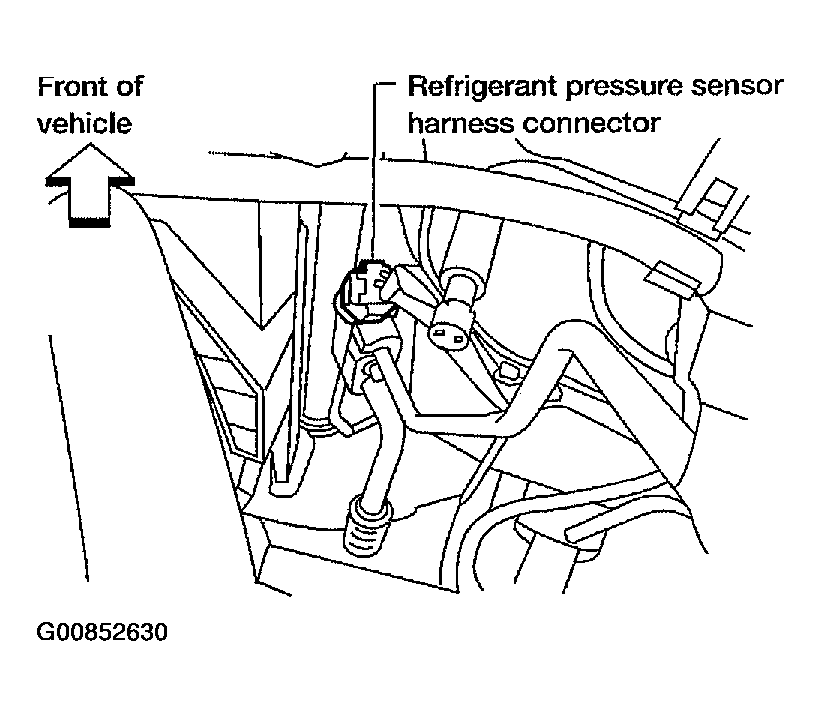

Fig 1: Identifying Refrigerant Pressure Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Make sure that higher A/C refrigerant pressure results in higher refrigerant pressure sensor output voltage.

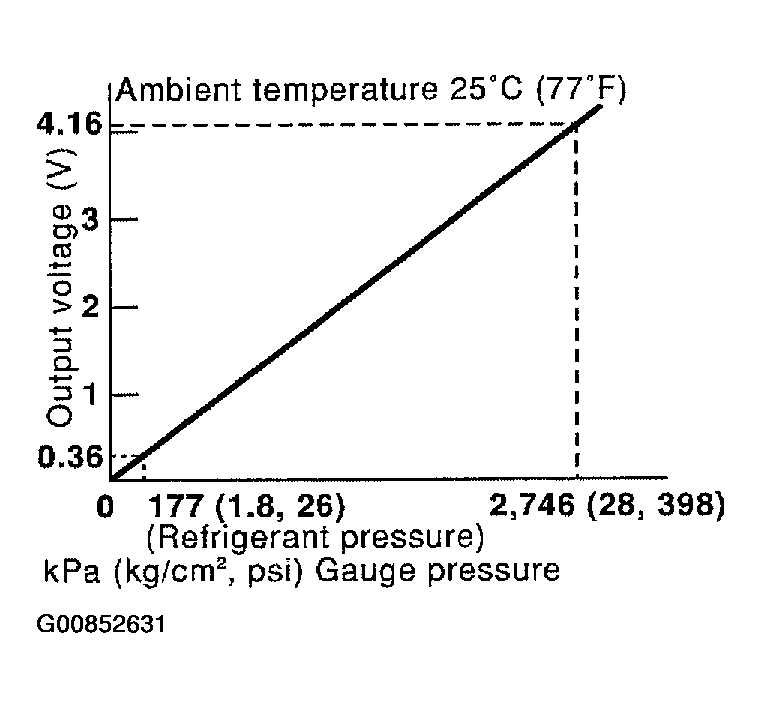

Fig 2: A/C Refrigerant Pressure Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
