A/C Relay

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminal Nos. 3 and 5.

Fig 1: Continuity Between Terminal Nos. 3 And 5

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace relay.

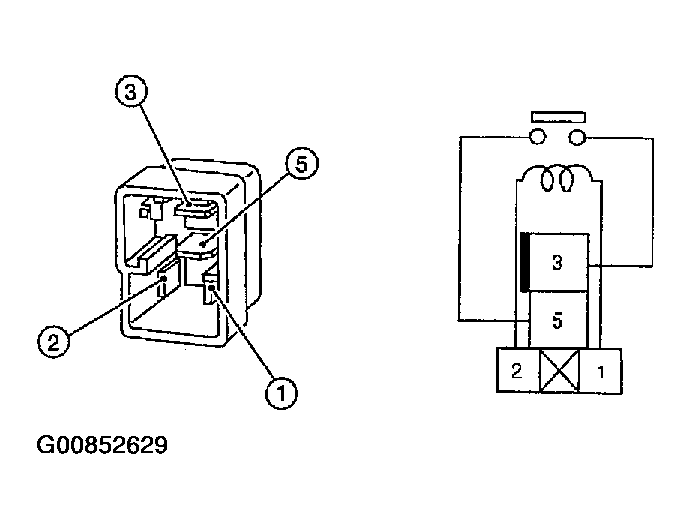

Fig 2: Identifying A/C Relay

Courtesy of NISSAN MOTOR CO., U.S.A.
