Lubricant Adjusting Procedure for Components Replacement Except Compressor

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

After replacing any of the following major components, add the correct amount of lubricant to the system.

Amount of lubricant to be added

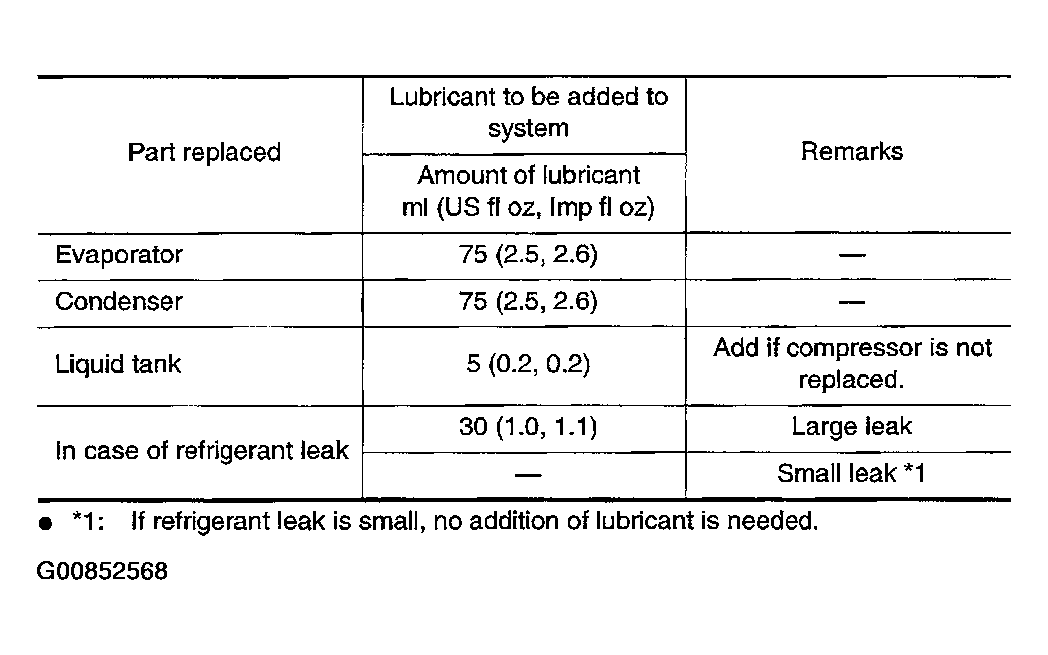

Fig 1: Part Replaced And Remarks Chart
G00852568Courtesy of NISSAN MOTOR CO., U.S.A.
