Heater & Cooling Unit (Heater Core): Removal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

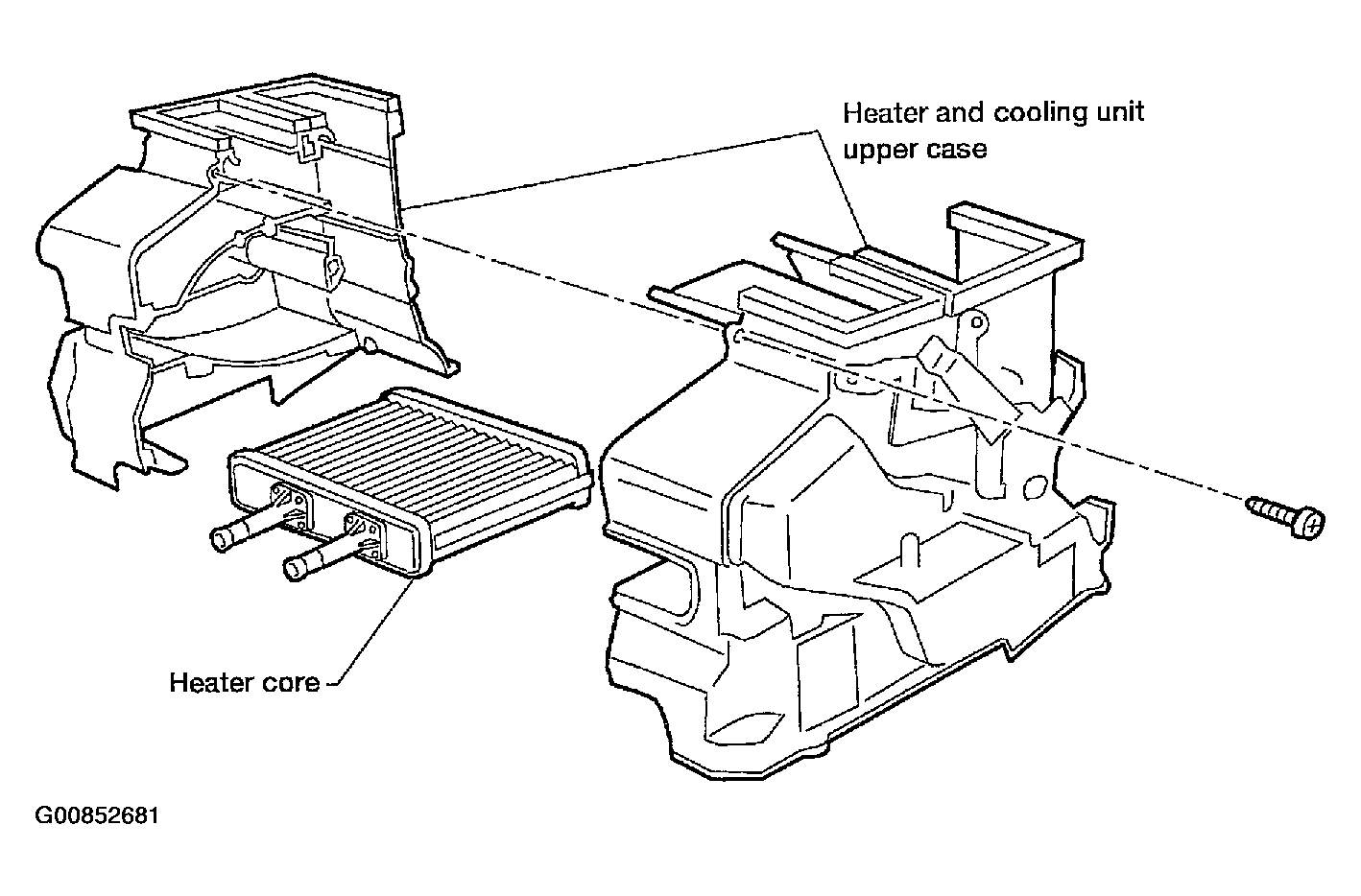

Fig 1: Identifying Heater & Cooling Unit (Heater Core)
G00852681Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Drain the cooling system. Refer to ENGINE COOLING SYSTEM (QG18DE) - SENTRA or ENGINE COOLING SYSTEM (QR25DE) - SENTRA .
  2. Discharge the A/C system. Refer to "DISCHARGING REFRIGERANT ".
  3. Disconnect the two heater hoses from inside the engine compartment.
  4. Remove the instrument panel assembly and steering member assembly.
  5. Remove the heater unit.
  6. Remove the heater core.
