Compressor Clutch: Installation: Qr25DE

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

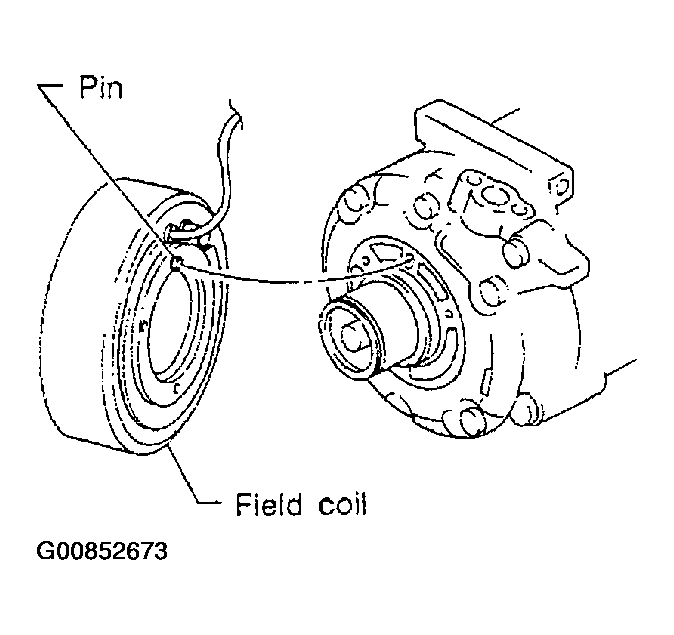

Install the field coil.
Be sure to align the magnet coil pin with the hole in the compressor front head.
Install the magnet coil harness clip using a screwdriver.

Fig 1: Installing Magnet Coil
Courtesy of NISSAN MOTOR CO., U.S.A.

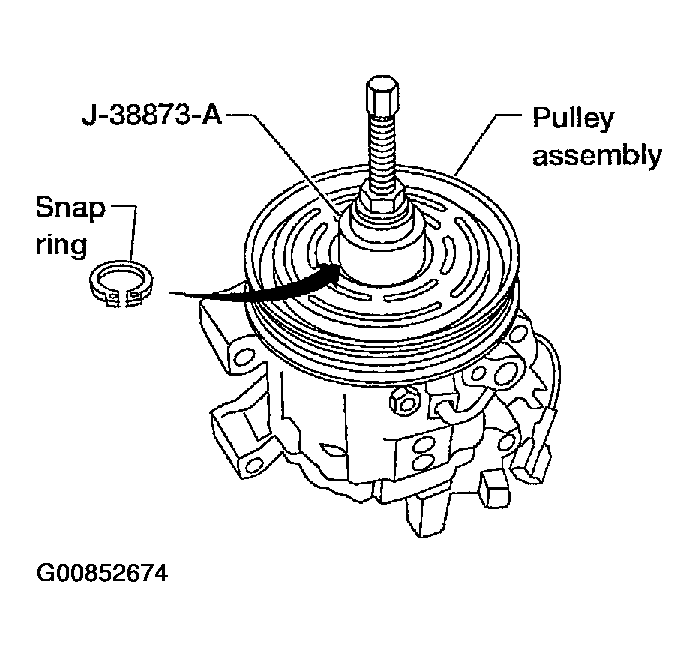

Install the pulley assembly using the installer, and then install the snap ring using snap ring pliers.

Fig 2: Installing Pulley Assembly Using Installer
Courtesy of NISSAN MOTOR CO., U.S.A.

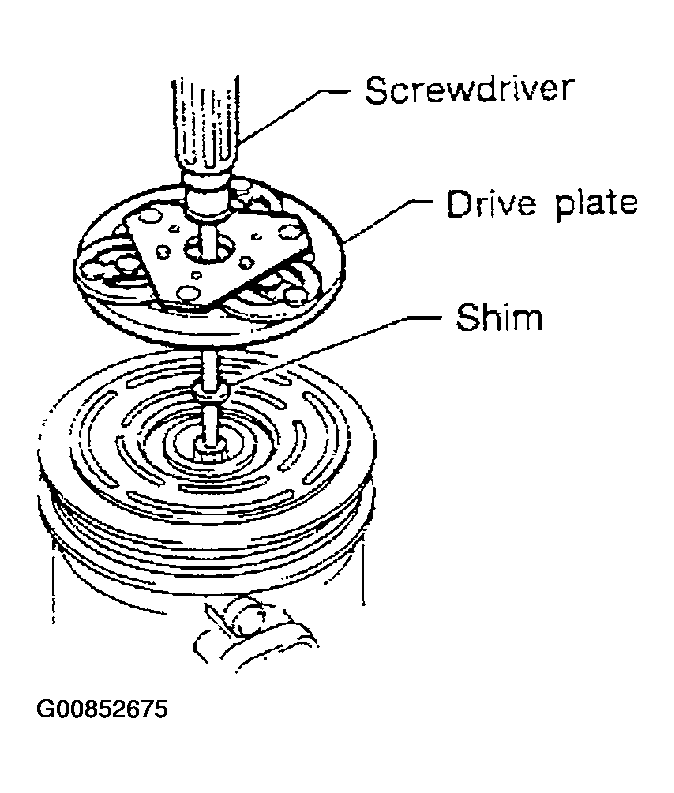

Install the drive plate on the drive shaft, together with the original shim(s). Press the drive plate down with the installer.

Fig 3: Installing Drive Plate On Drive Shaft, Together With Original Shim(s)
Courtesy of NISSAN MOTOR CO., U.S.A.

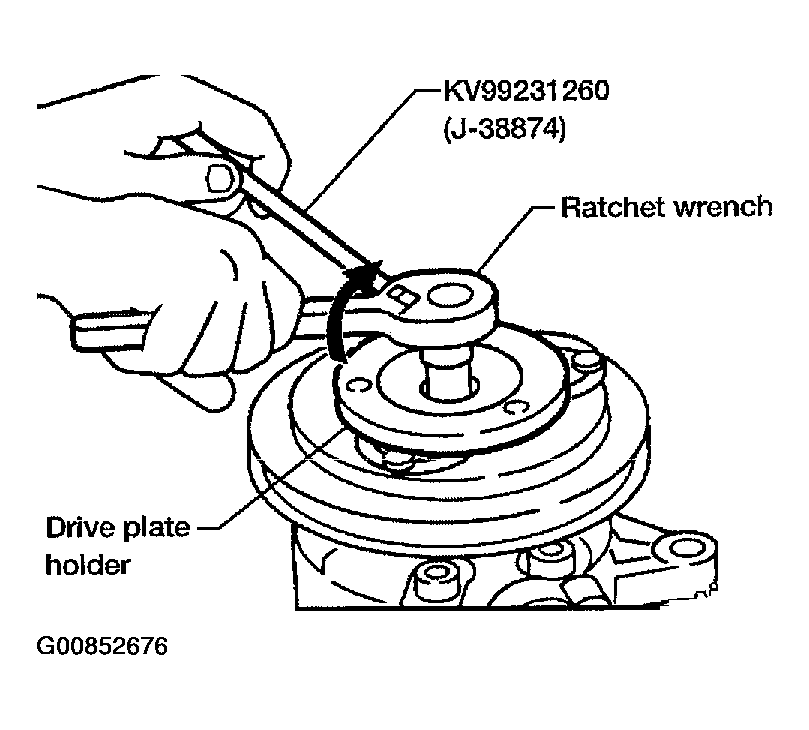

Using the holder to prevent clutch disc rotation, tighten the bolt to 12 to 15 N.m (1.2 to 1.5 kg-m, 9 to 11 ft-lb) torque.
After tightening the bolt, check that the pulley rotates smoothly.

Fig 4: Tightening Bolt
Courtesy of NISSAN MOTOR CO., U.S.A.

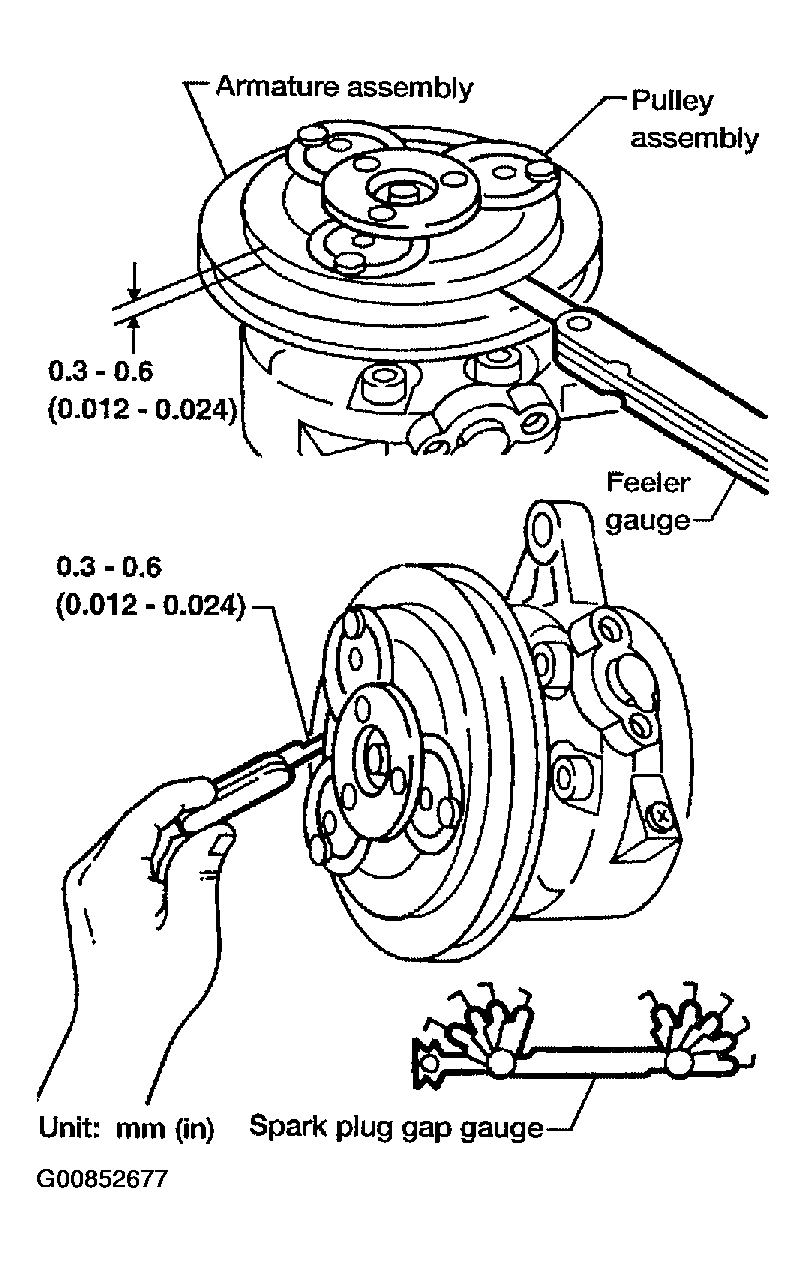

Check clearance all the way around the clutch disc.
Clutch disc-to-pulley : 0.3 - 0.6 mm (0.012 - 0.024 in) clearance

If the specified clearance is not obtained, replace adjusting spacer and readjust.

Fig 5: Checking Clearance
Courtesy of NISSAN MOTOR CO., U.S.A.
