Clutch Disc

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

If the contact surface shows signs of damage due to excessive heat, replace clutch disc and pulley.

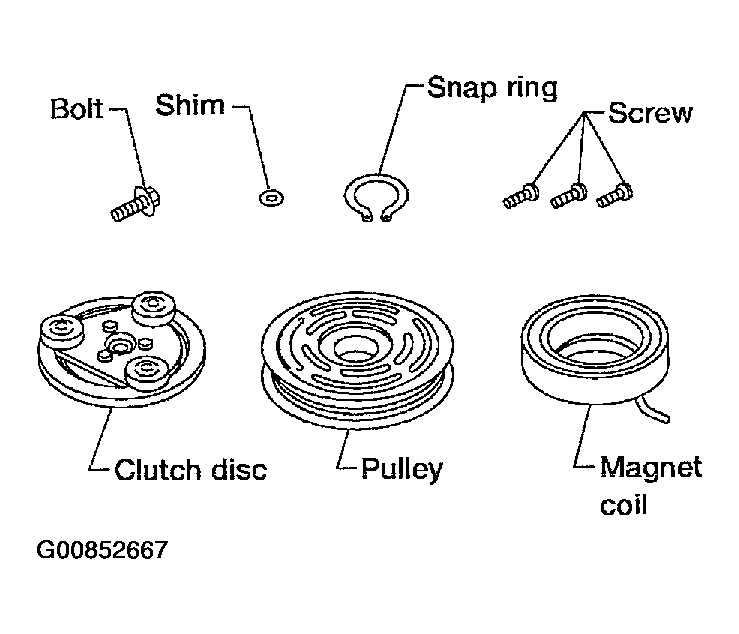

Fig 1: Inspecting Clutch Disc
G00852667Courtesy of NISSAN MOTOR CO., U.S.A.
