Section 1217 (Manual Air Conditioner System)
>>
Blower Motor
>>
Electrical Components Inspection
>>
Fan Resistor
Fan Resistor
WARNING:
This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Check resistance between terminals.

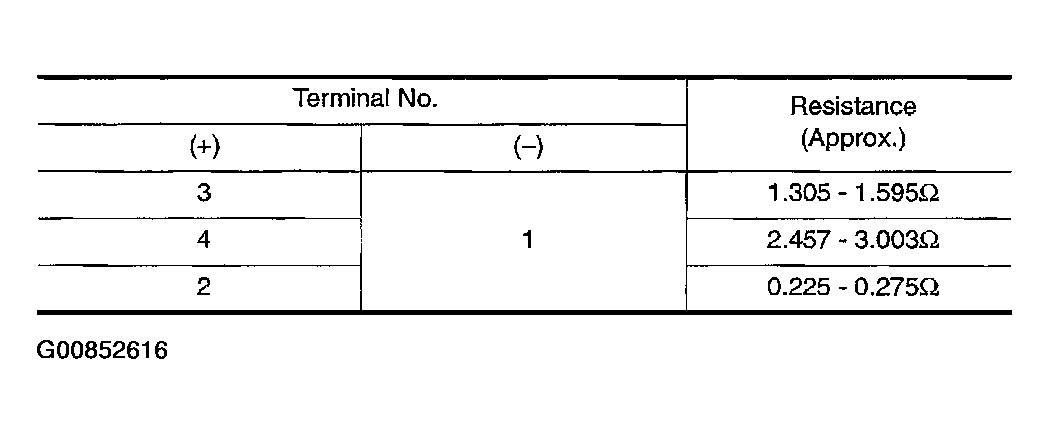

Fig 1: Resistance Between Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

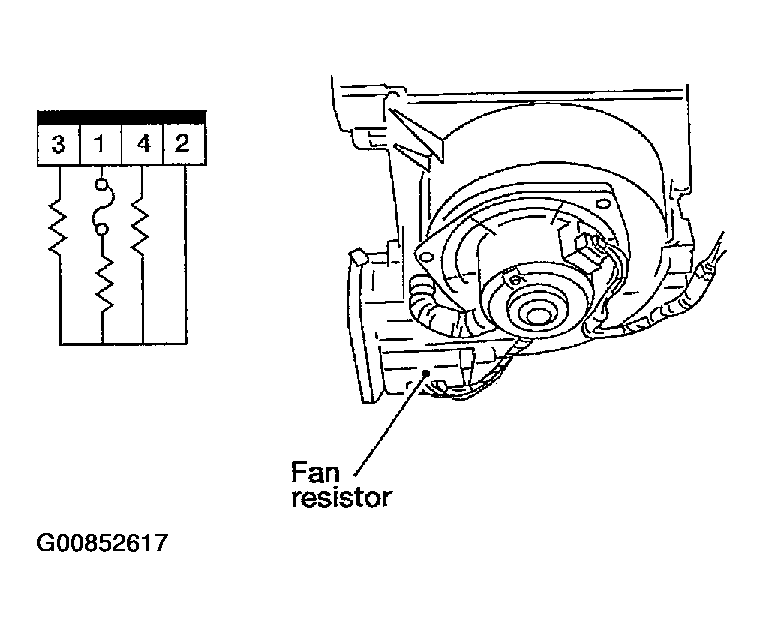

Fig 2: Identifying Fan Resistor
Courtesy of NISSAN MOTOR CO., U.S.A.
