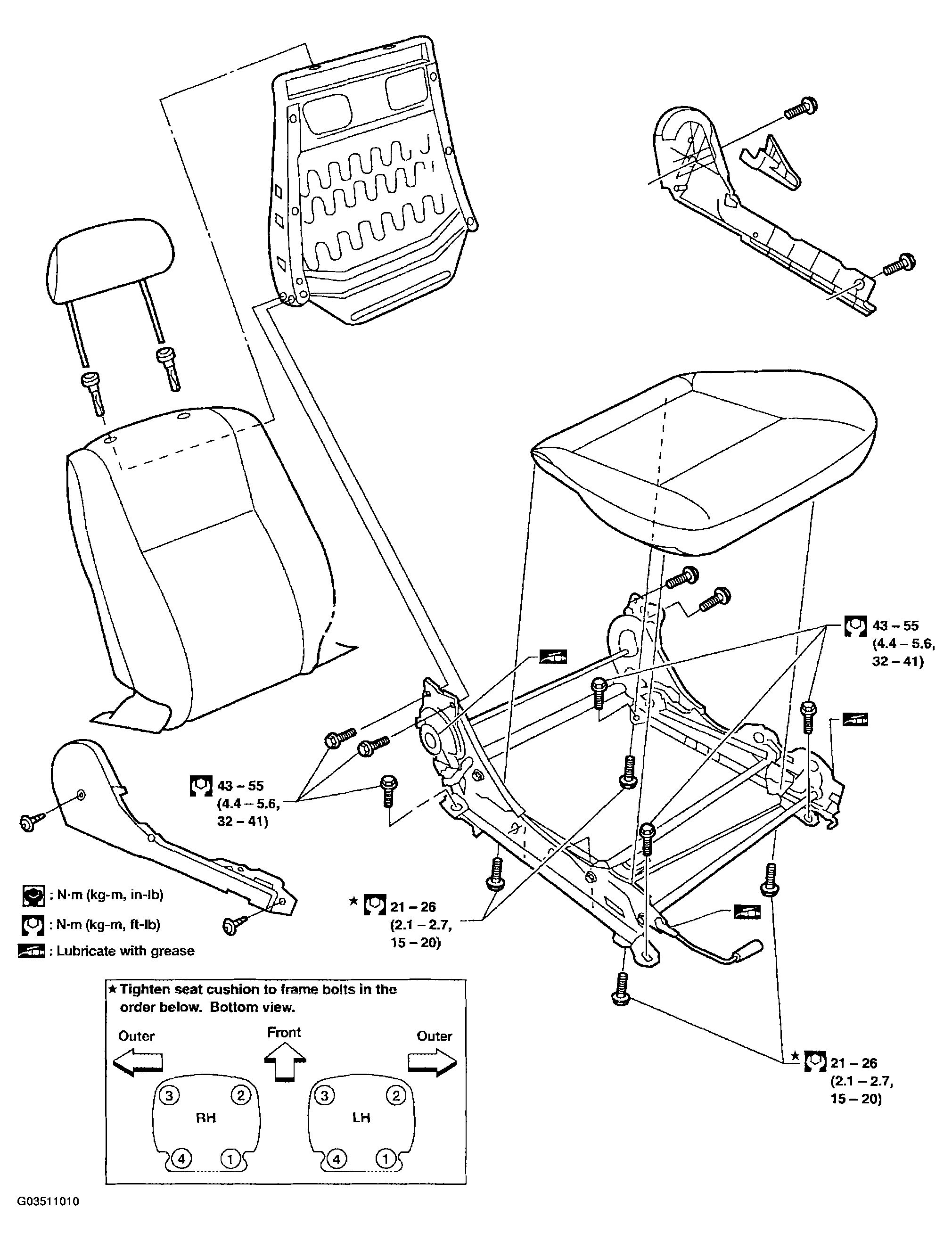

Removal and Installation
WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Removal of front side air bag module should only be done to allow deployment of front side air bag module prior to disposal of seatback assembly.
CAUTION:
- On vehicle equipped with side air bags, before removing the front seat, turn the ignition switch off, disconnect the negative and positive batter cables and wait a minimum of 3 minutes.
- When checking the power seat circuitry for continuity using a circuit tester, do not confuse the seat connector with the side air bag connector. Doing so could cause the side air bag to deploy.
- Do not drop, tilt, or bump the side air bag module installed in the seat. Always handle it with care.
- Disconnect the side air bag harness connector, if equipped, and the power seat switch harness connector from under the seat before removing the seat.
- After front side air bag module inflates, front seatback assembly must be replaced.
NOTE:
Only complete seatback assemblies can be replaced on vehicles equipped with side air bags.
