Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

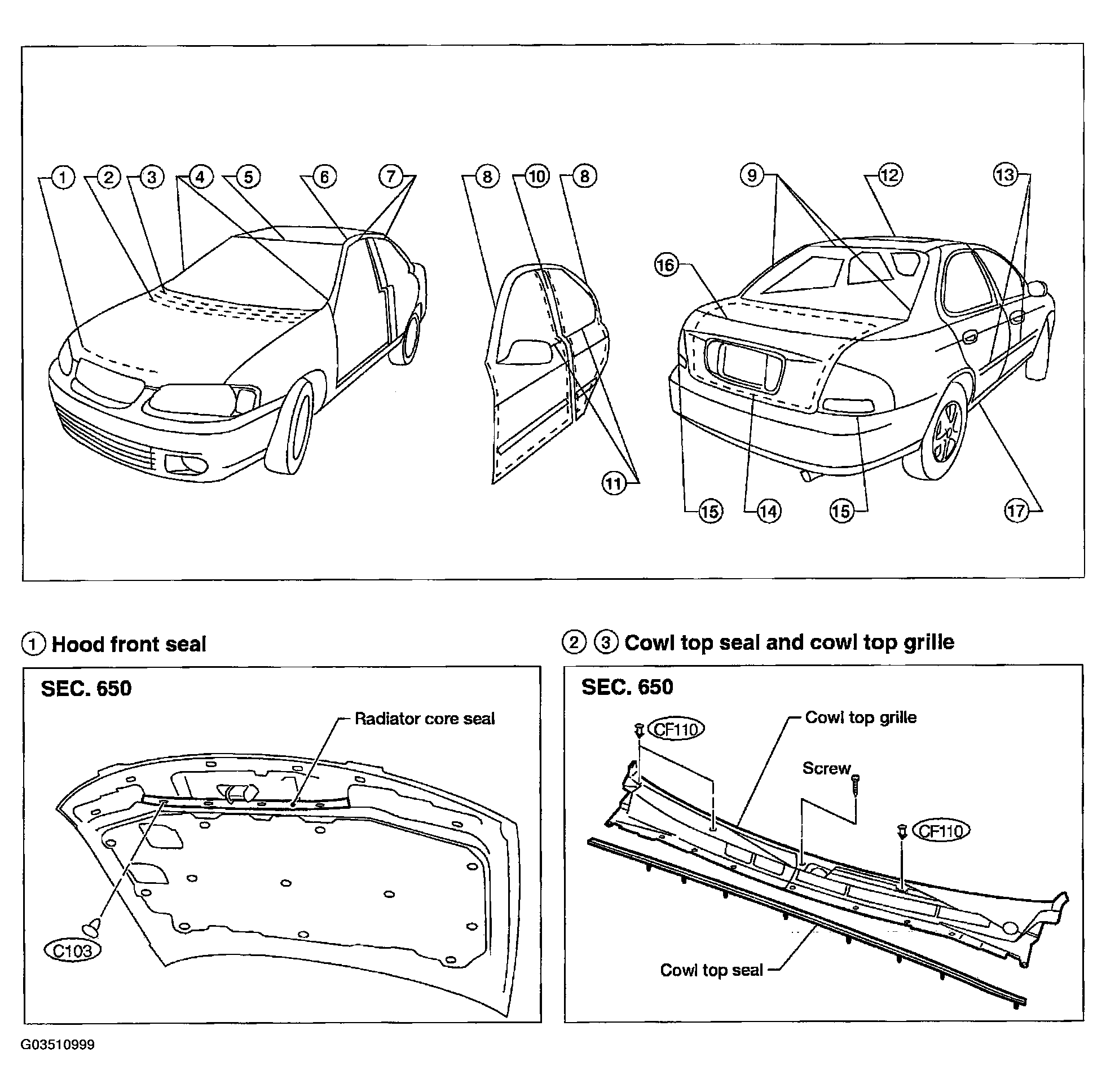

Fig 1: Removal And Installation - Exterior Components (Step 1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

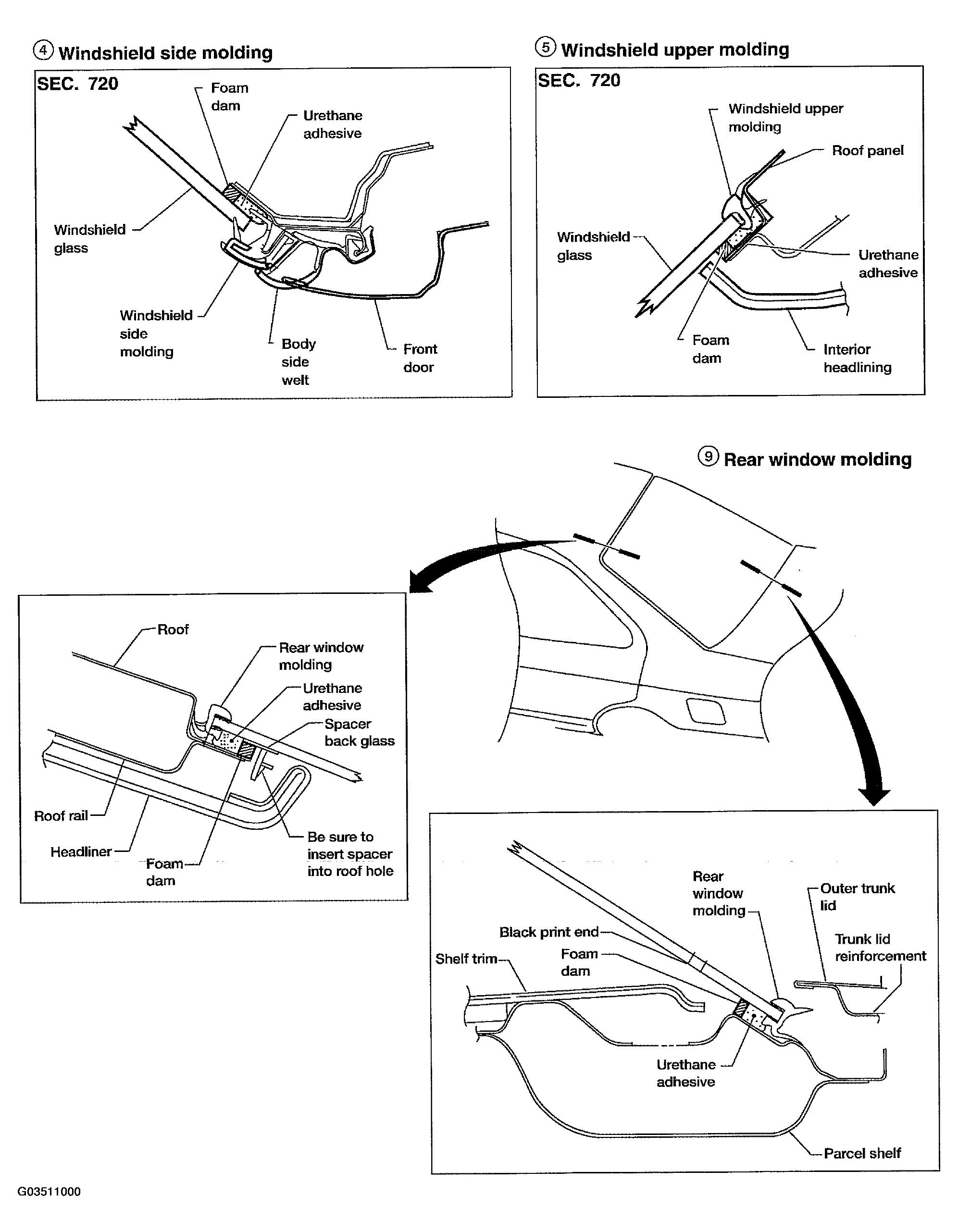

Fig 2: Removal And Installation - Exterior Components (Step 2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

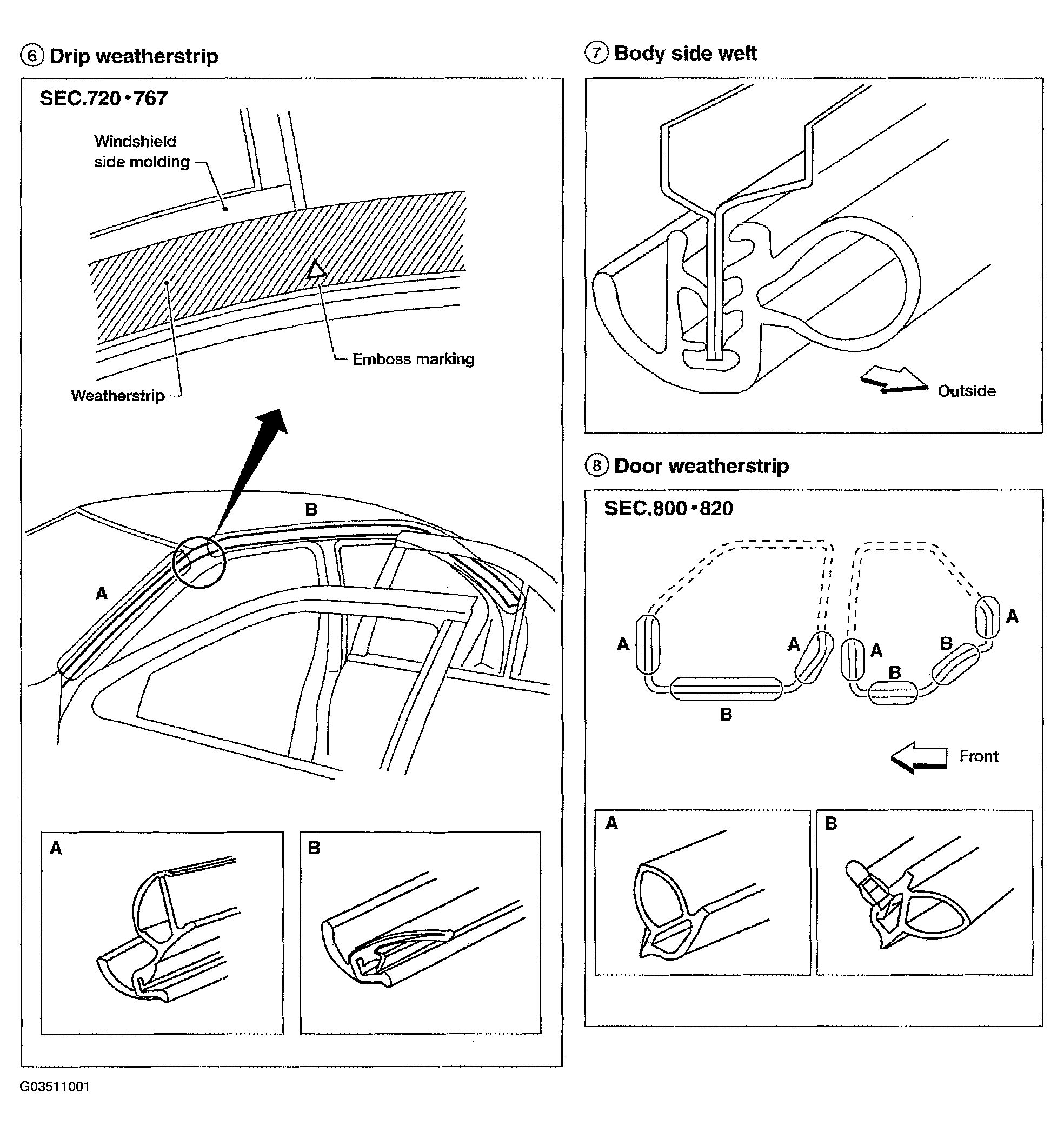

Fig 3: Removal And Installation - Exterior Components (Step 3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

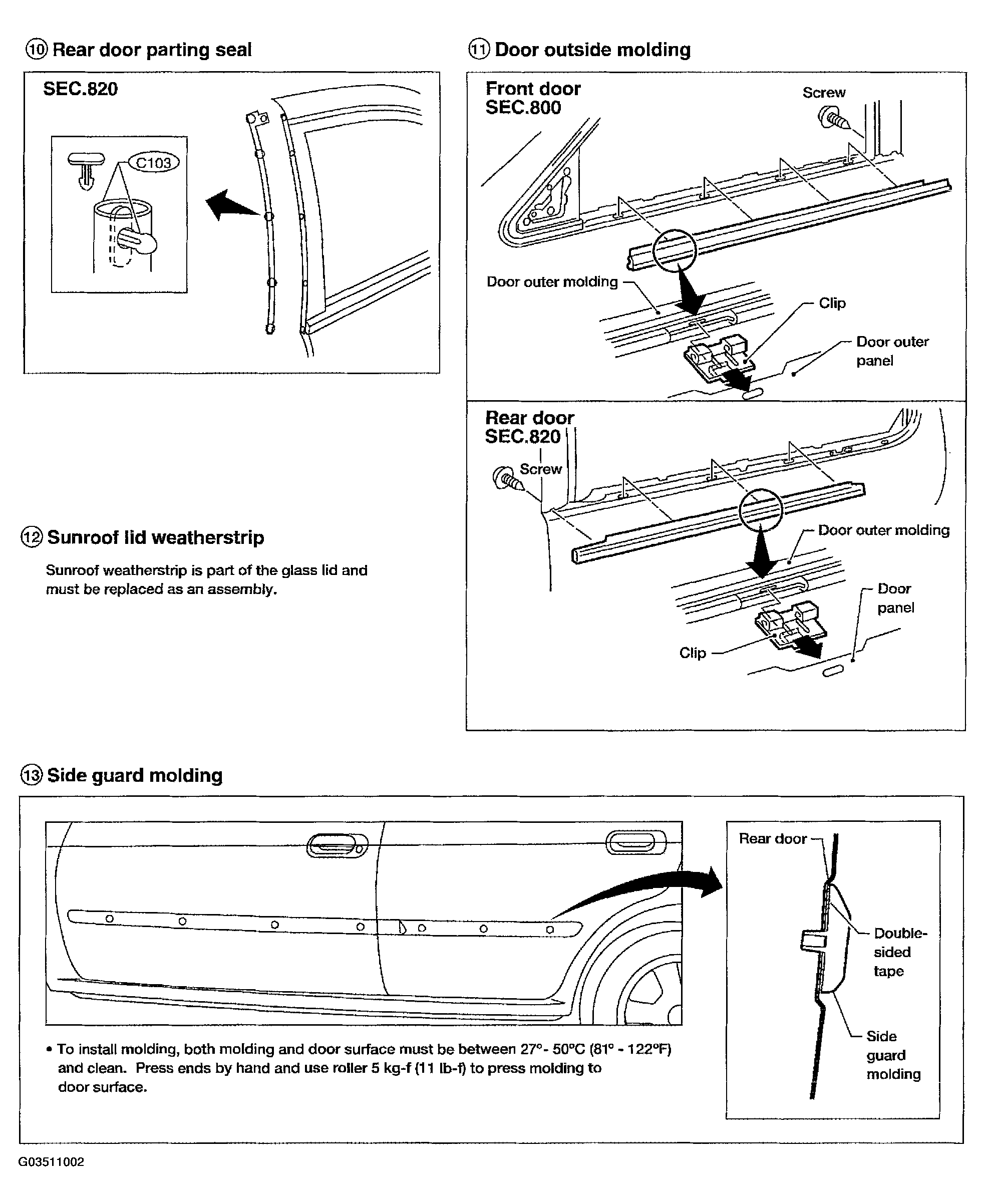

Fig 4: Removal And Installation - Exterior Components (Step 4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

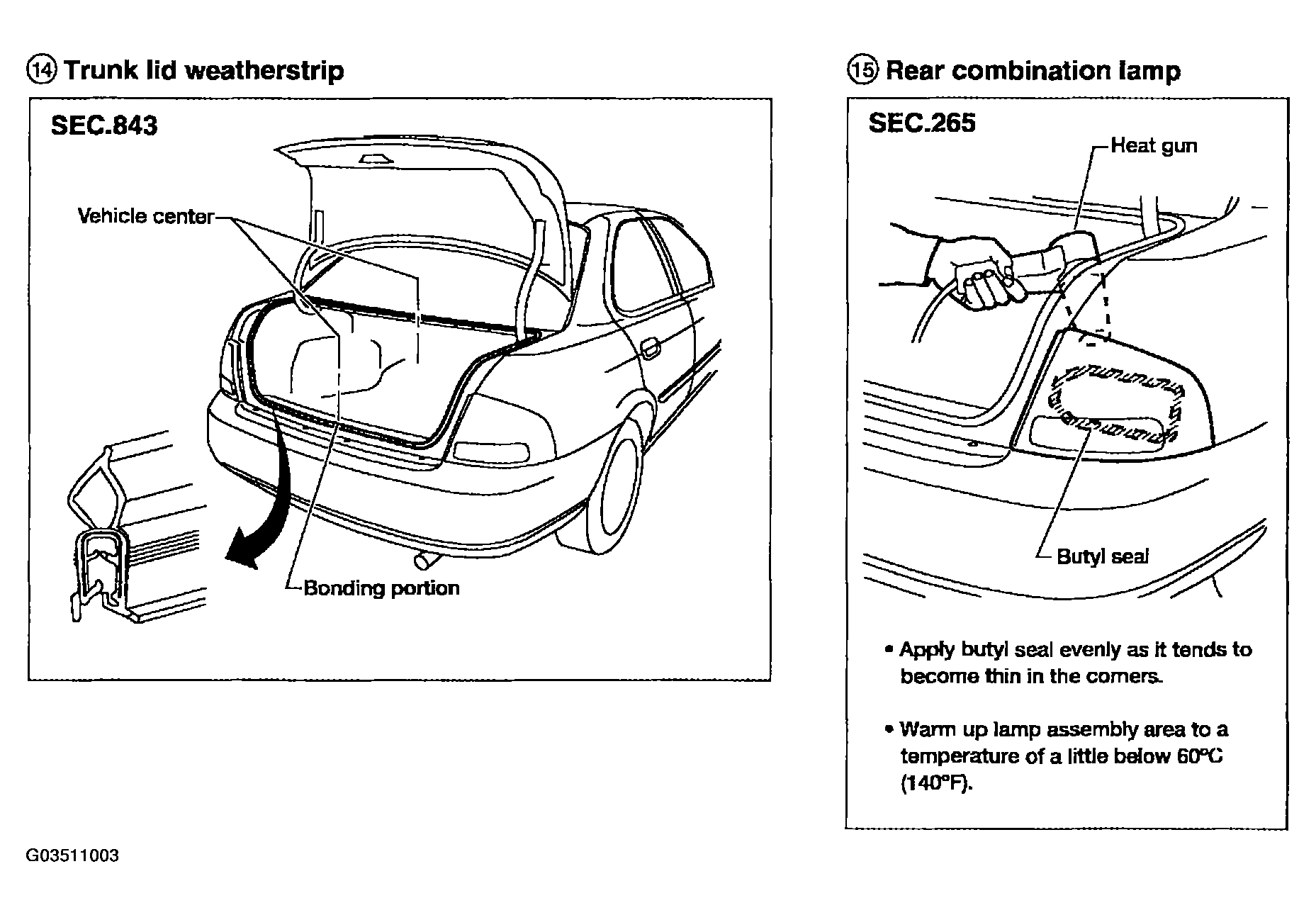

Fig 5: Removal And Installation - Exterior Components (Step 5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

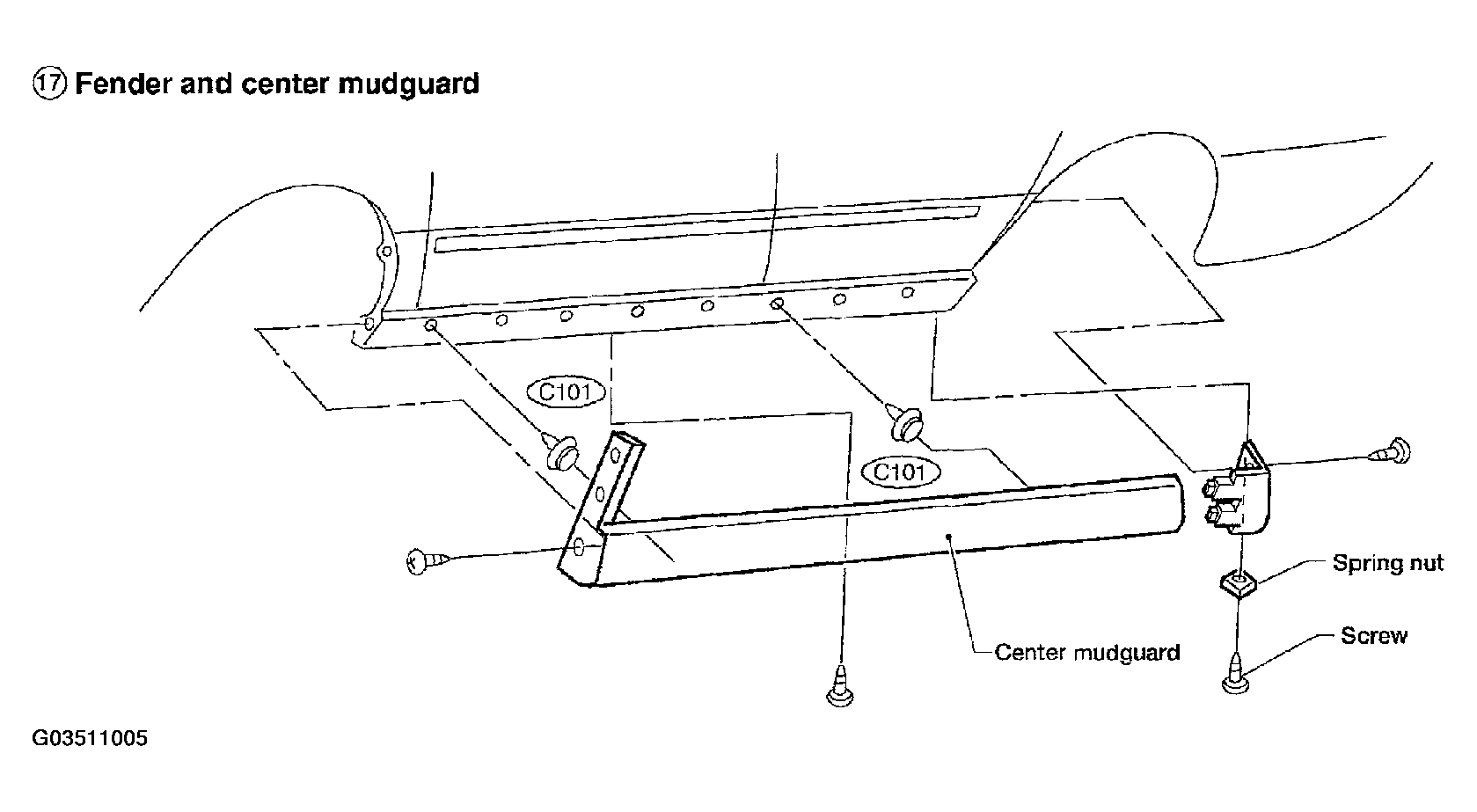

Fig 6: Removal And Installation - Exterior Components (Step 6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

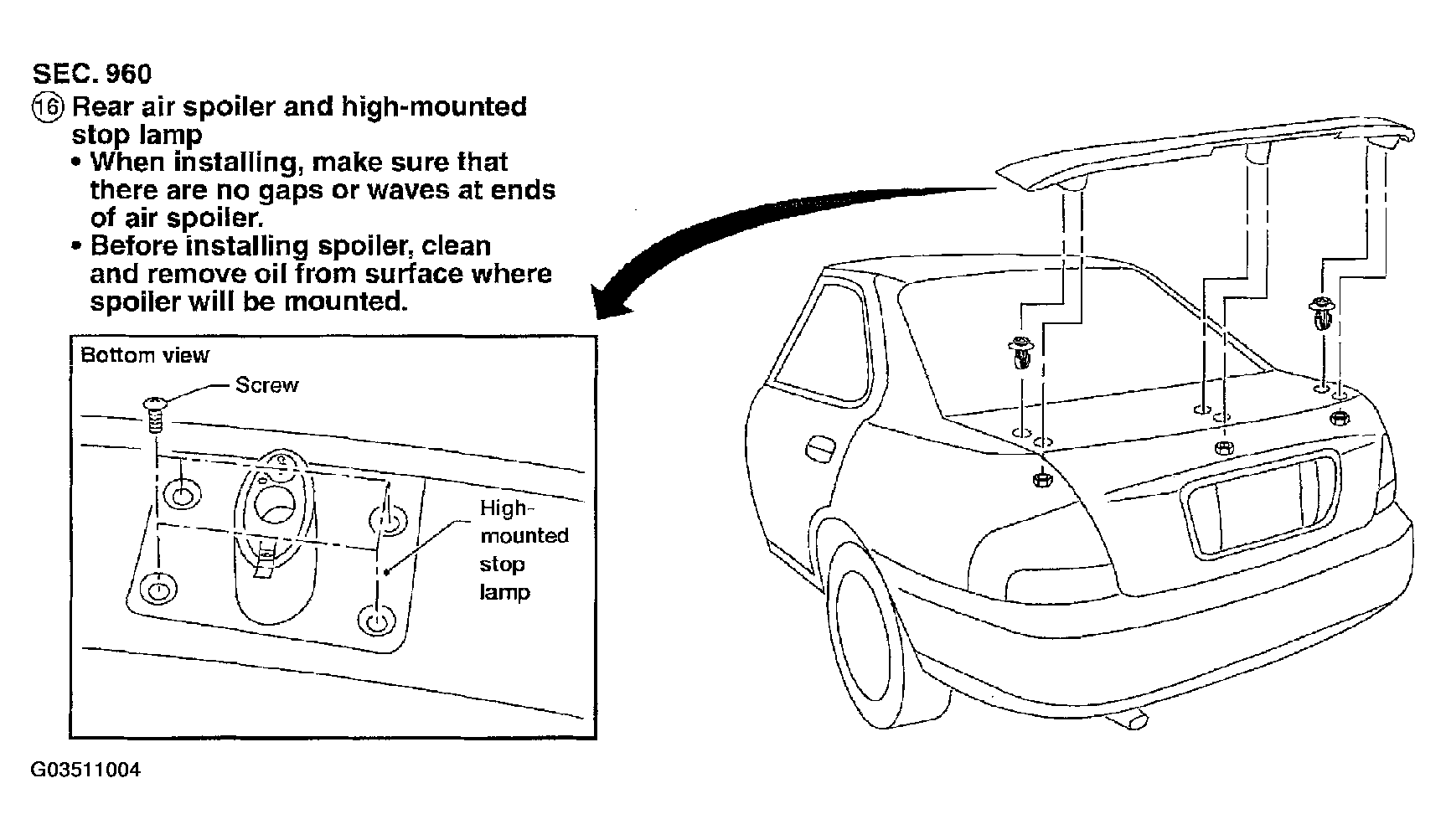

Fig 7: Removal And Installation - Exterior Components (Step 7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
