Clip And Fastener: Description

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Clips and fasteners in El section correspond to the following numbers and symbols.
Replace any clips and/or fasteners which are damaged during removal or installation.

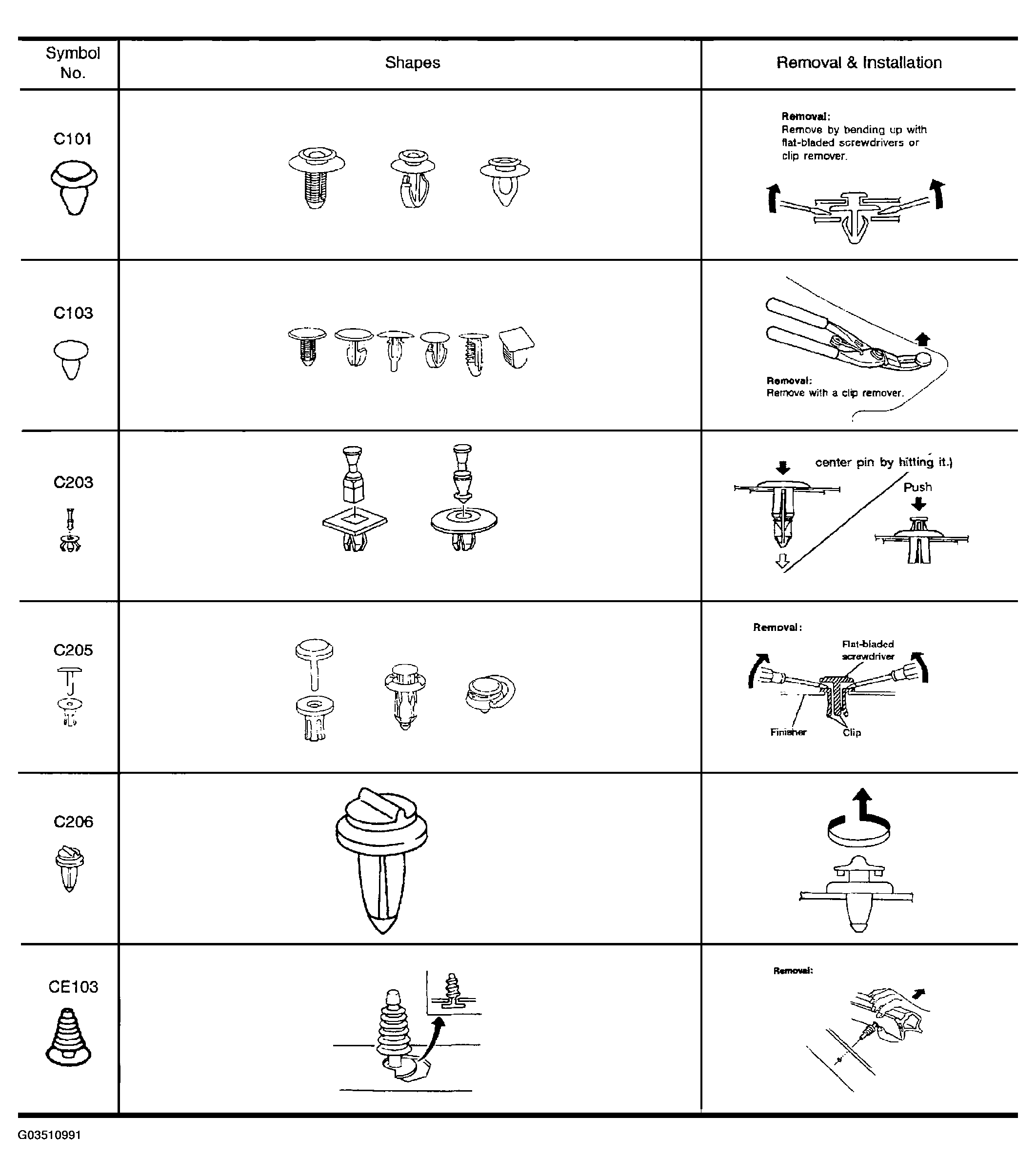

Fig 1: Clip And Fastener Description Chart (Step 1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

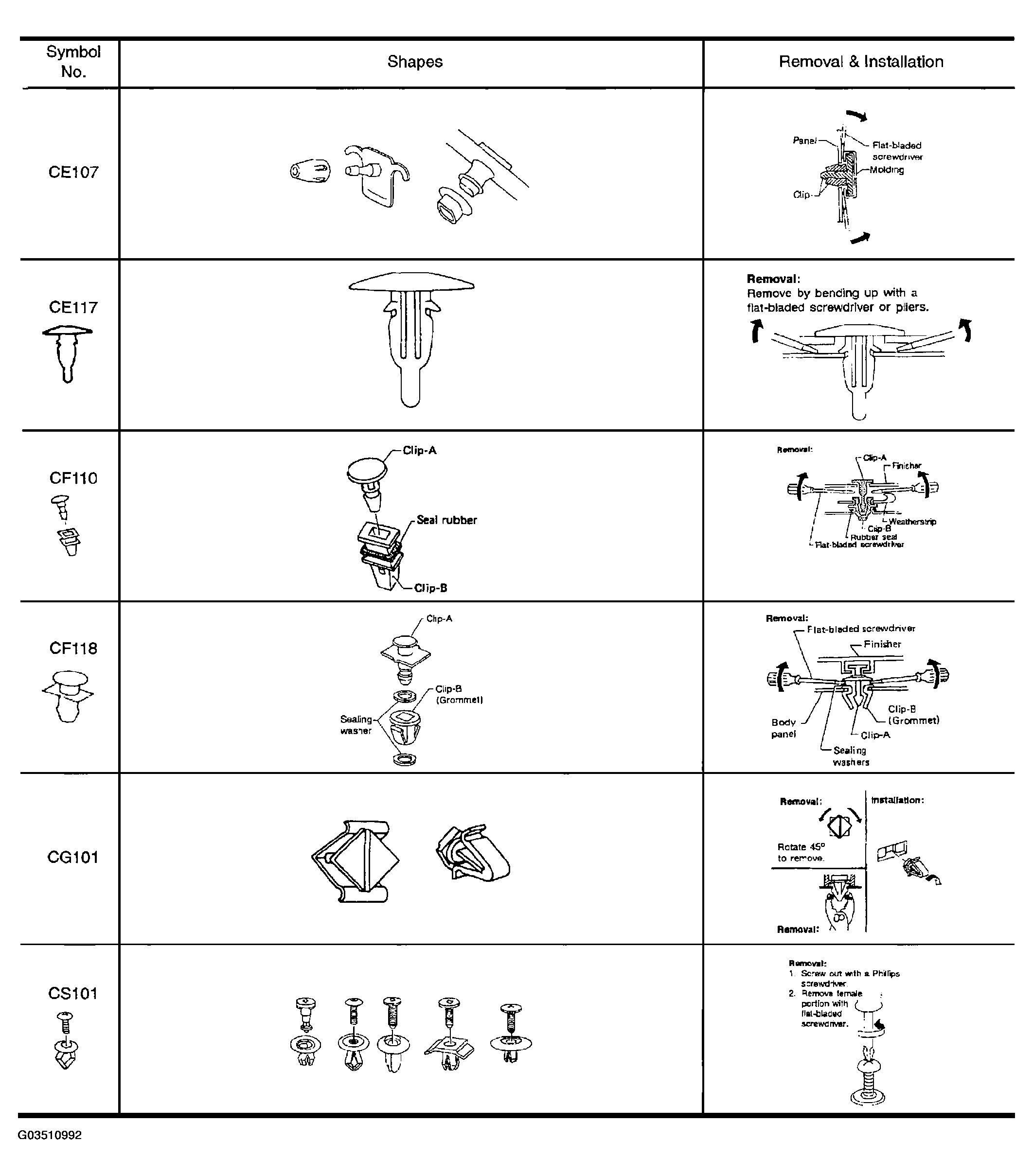

Fig 2: Clip And Fastener Description Chart (Step 2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

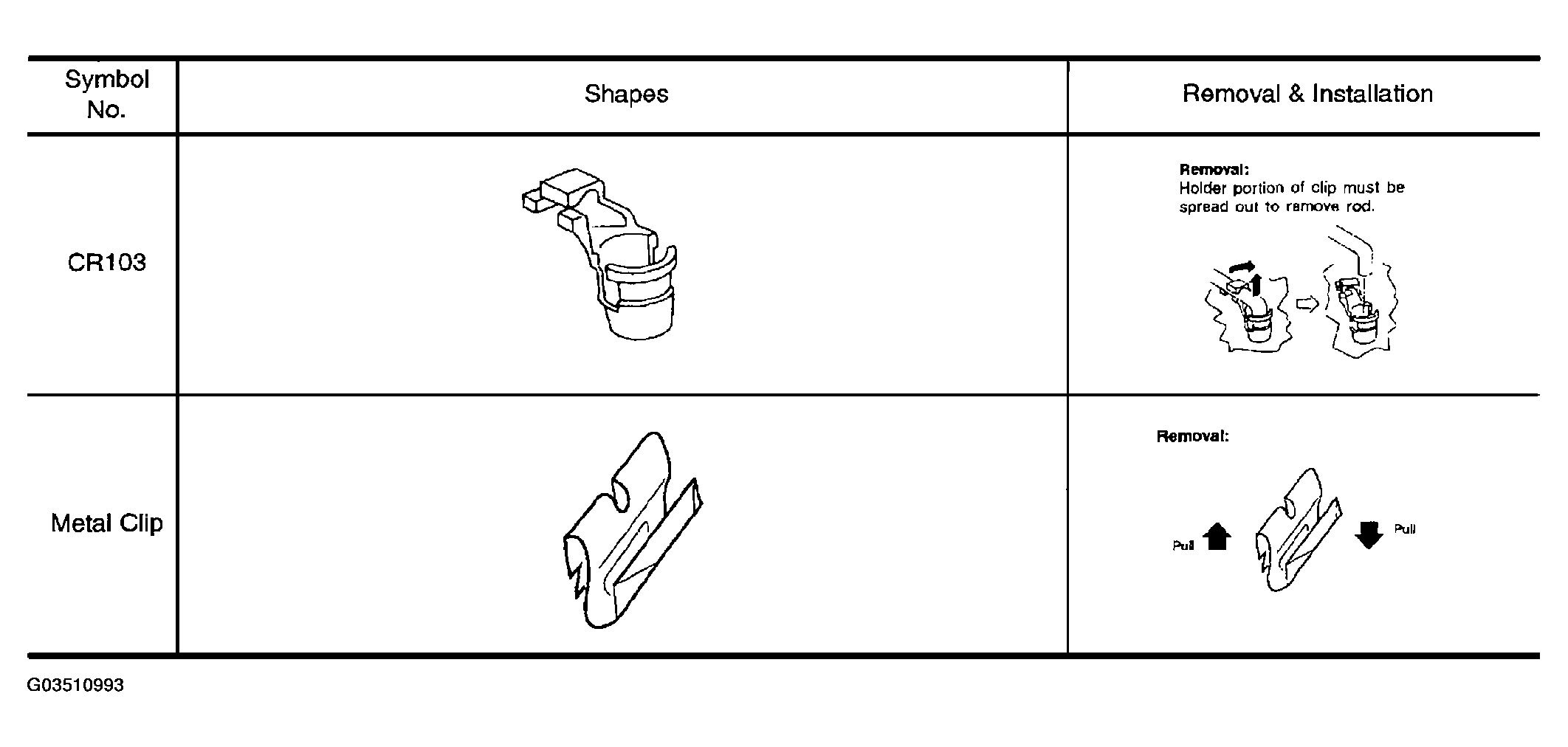

Fig 3: Clip And Fastener Description Chart (Step 3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
