Rear Bumper Assembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove two clips C205 from lower side and four clips C205 from upper side of rear bumper fascia.
  2. Remove two screws from each quarter panel side.
  3. Remove two screws from each upper side of fascia into bumper side brackets.
  4. Remove rear bumper fascia.
  5. Remove energy absorber from rear bumper reinforcement.
  6. Remove four nuts securing bumper reinforcement and remove bumper reinforcement.
  7. Remove four bolts securing each bumper side stay, and remove bumper side stays.

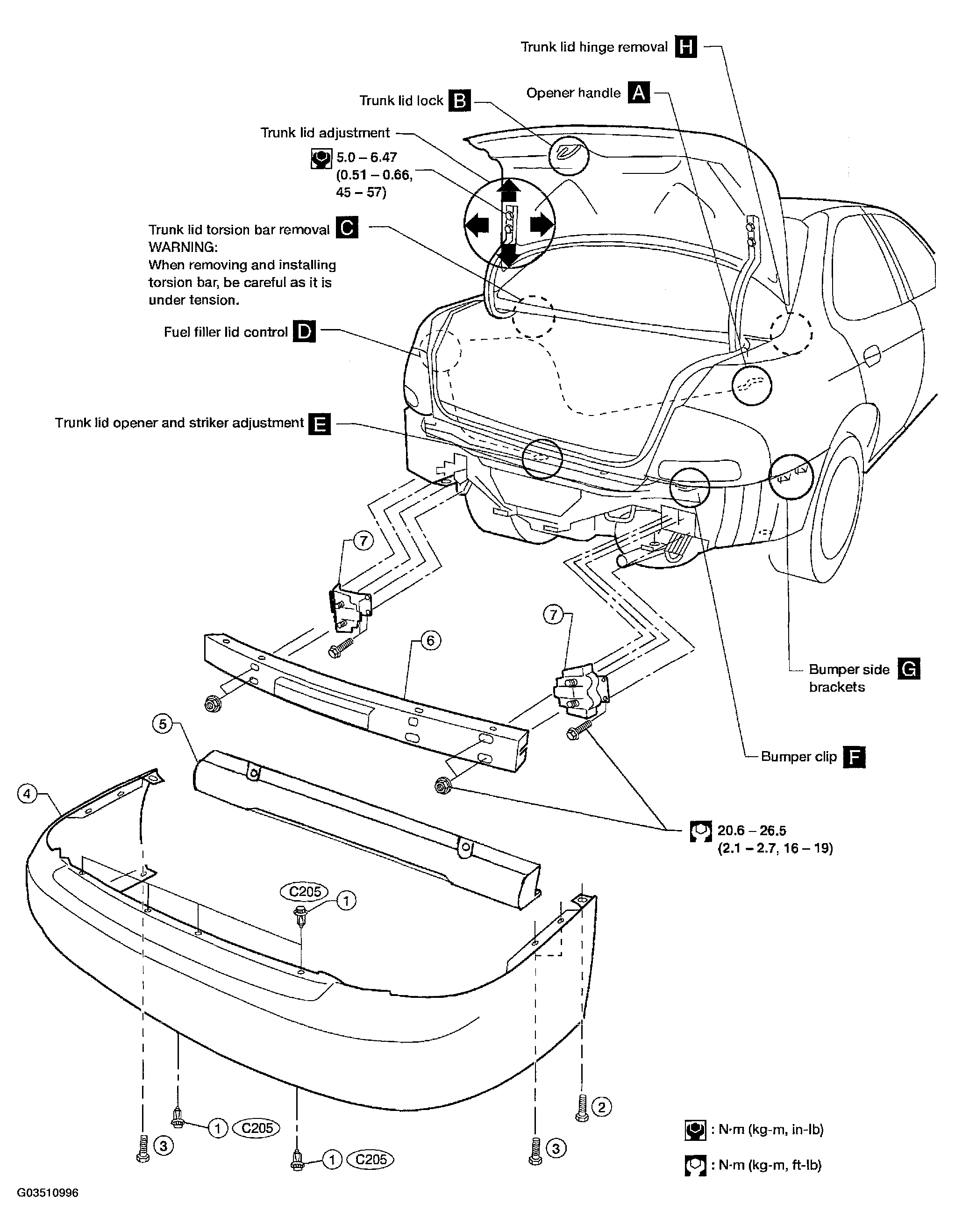

Fig 1: Removing Body Rear End And Opener Components (Step 1 Of 2)
G03510996Courtesy of NISSAN MOTOR CO., U.S.A.

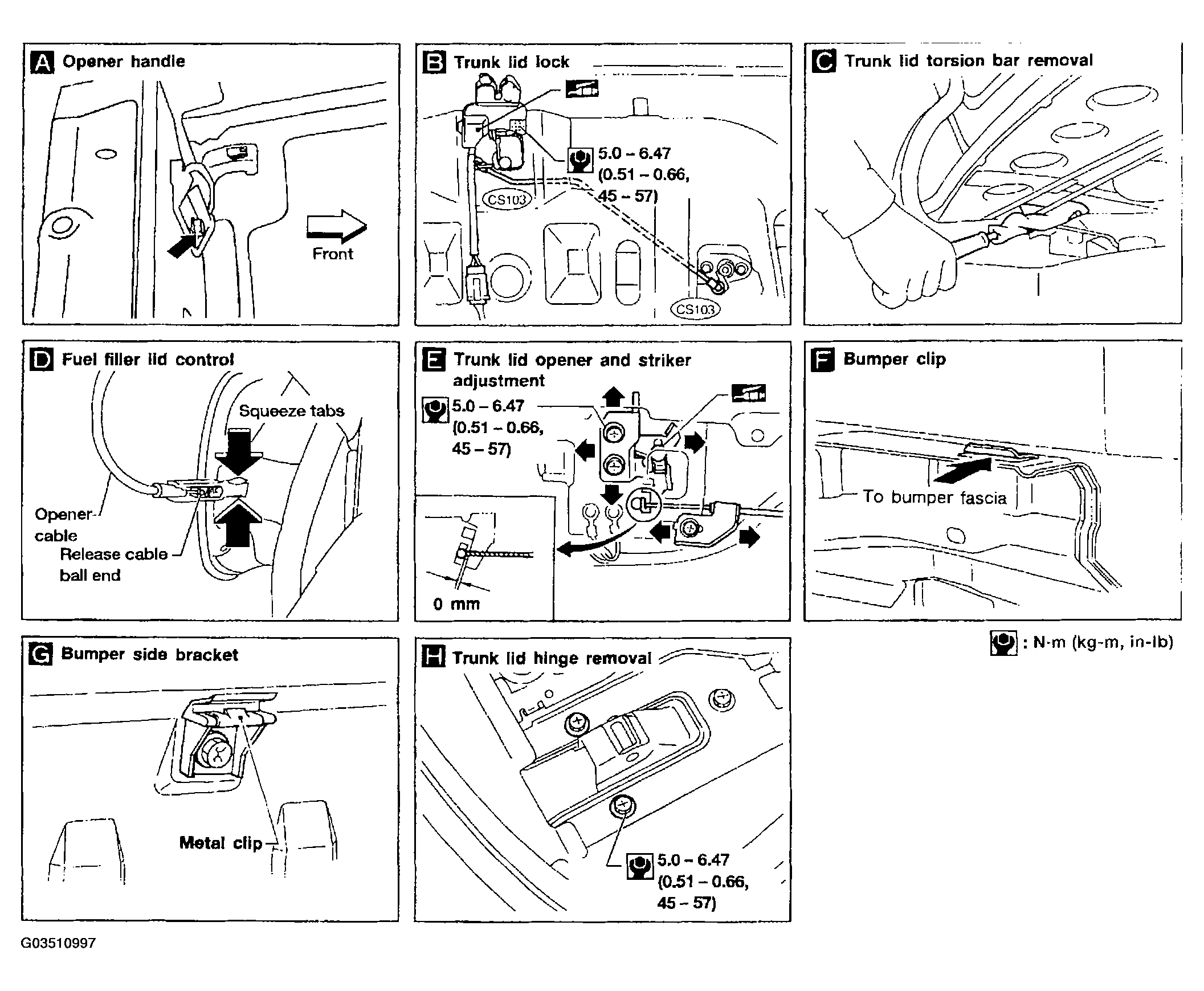

Fig 2: Removing Body Rear End And Opener Components (Step 2 Of 2)
G03510997Courtesy of NISSAN MOTOR CO., U.S.A.
