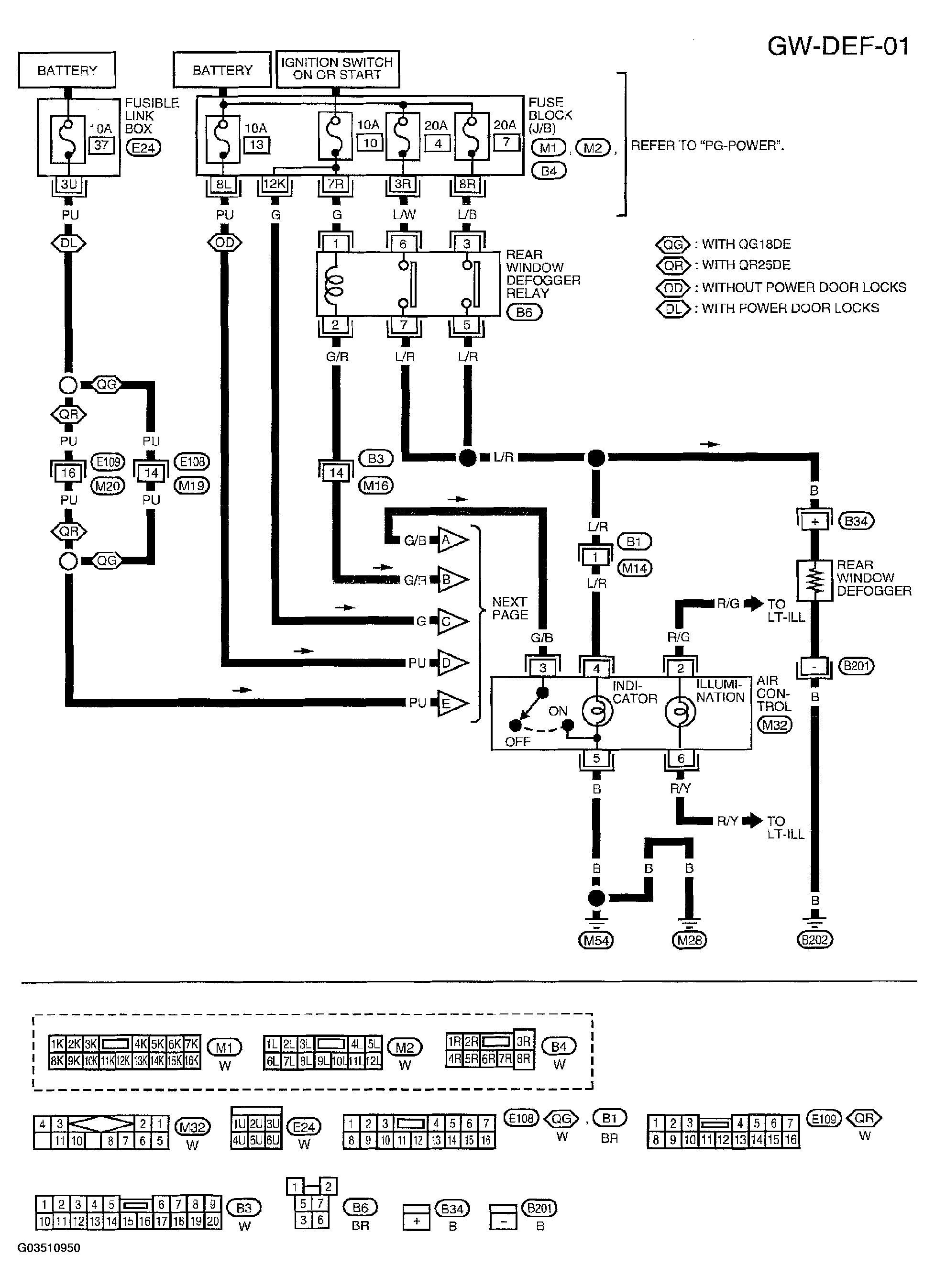

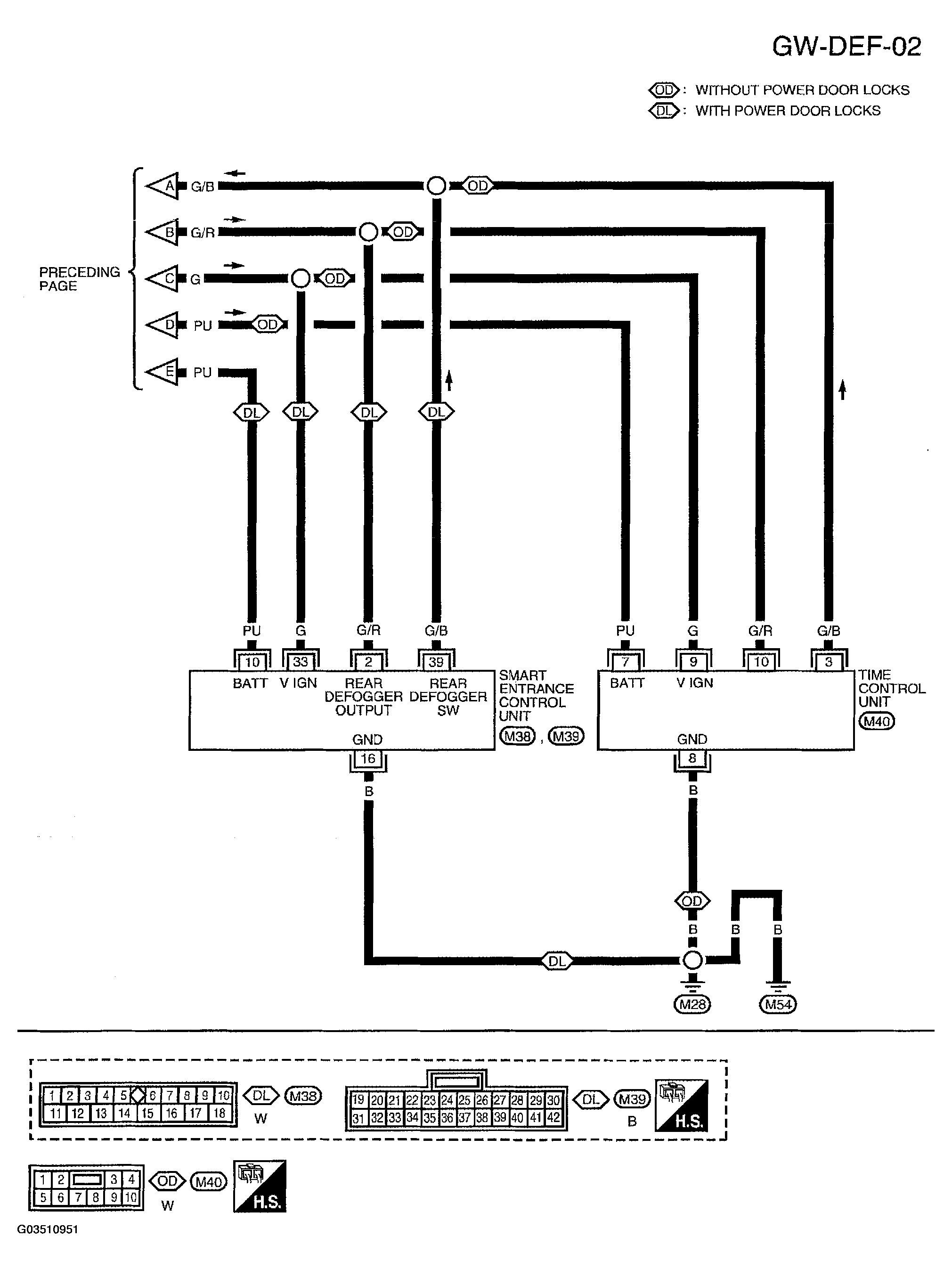

Wiring Diagram - DEF -
WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For references to PG-POWER, see POWER DISTRIBUTION
.
TIME CONTROL UNIT TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND (WITHOUT POWER DOOR LOCKS)
TERMINAL CONDITION
| TERMINAL | WIRE COLOR | ITEM | CONDITION | DATA (DC) |
|---|---|---|---|---|
| 3 | G/B | AIR CONTROL (REAR WINDOW DEFOGGER SWITCH) | OFF | 5V |
| ON | 0V | |||
| 7 | PU | POWER SOURCE (FUSE) | - | 12V |
| 8 | B | GROUND | - | - |
| 9 | G | IGNITION SWITCH (ON) | IGNITION KEY IN ON POSITION | 12V |
| IGNITION SWITCH (START) | IGNITION KEY IN START POSITION | 12V | ||
| 10 | G/R | REAR WINDOW DEFOGGER RELAY | OFF | 0V |
| ON (IGNITION KEY IN ON POSITION) | 12V |
SMART ENTRANCE CONTROL UNIT TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND (WITH POWER DOOR LOCKS)
TERMINAL CONDITION
| TERMINAL | WIRE COLOR | ITEM | CONDITION | DATA (DC) |
|---|---|---|---|---|
| 2 | G/R | REAR WINDOW DEFOGGER RELAY | OFF | 0V |
| ON (IGNITION KEY IN ON POSITION) | 12V | |||
| 10 | PU | POWER SOURCE (FUSE) | - | 12V |
| 16 | B | GROUND | - | - |
| 33 | G | IGNITION SWITCH (ON) | IGNITION KEY IN ON POSITION | 12V |
| IGNITION SWITCH (START) | IGNITION KEY IN START POSITION | 12V | ||
| 39 | G/B | AIR CONTROL (REAR WINDOW DEFOGGER SWITCH) | OFF | 5V |
| ON | 0V |
