"Rear Defogger"

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.

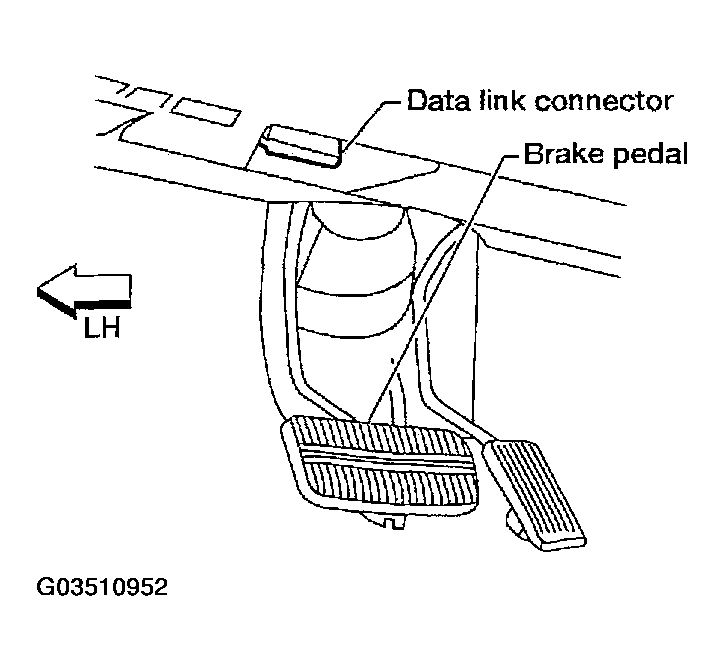

Fig 1: Identifying Data Link Connector Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect "CONSULT-II" to the data link connector.
Turn ignition switch ON.
Touch "START".

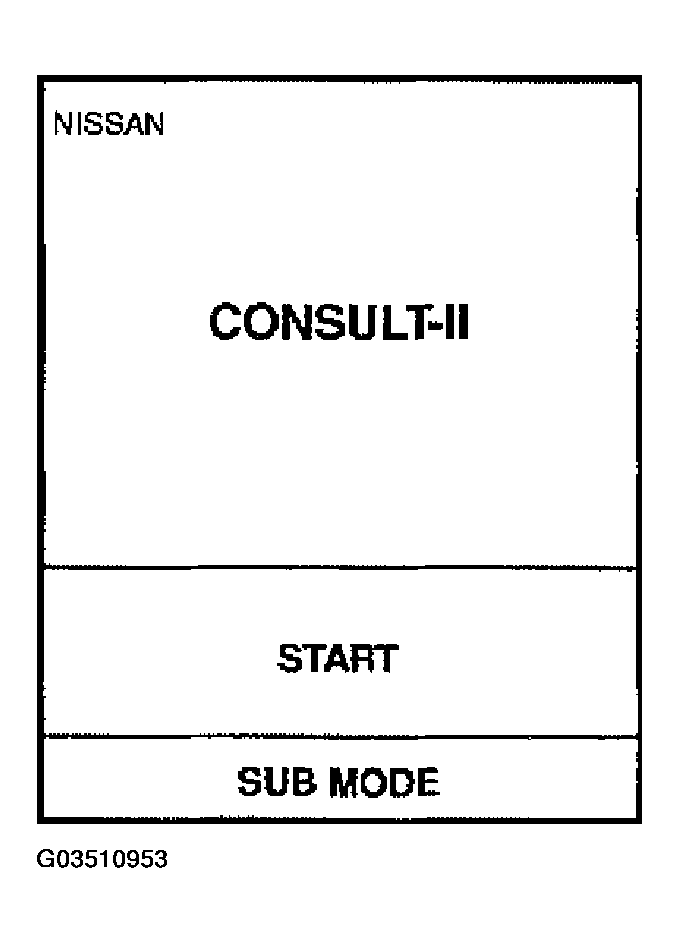

Fig 2: Consult-II Display - Start
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SMART ENTRANCE".

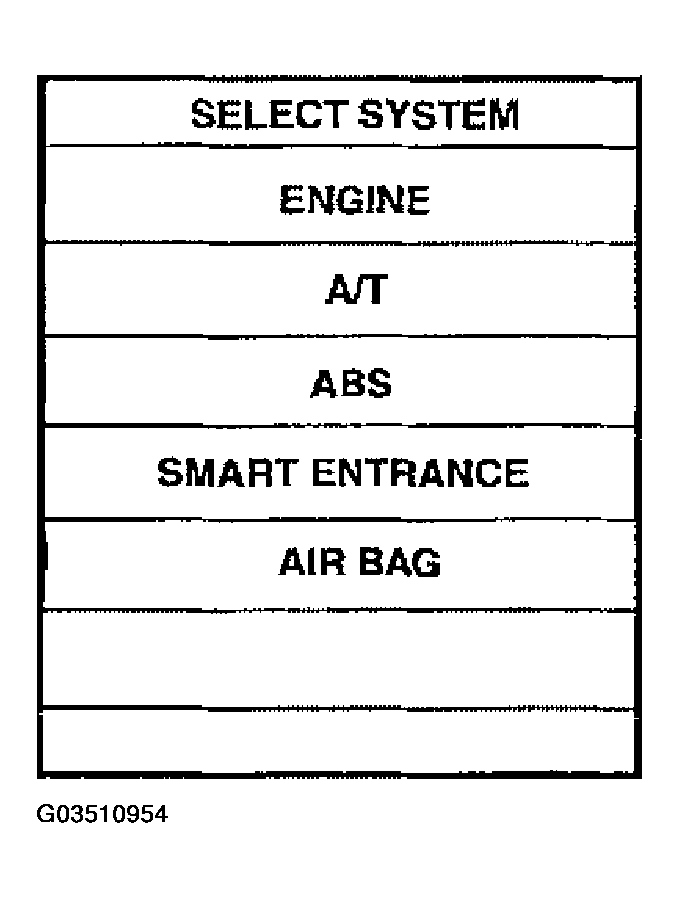

Fig 3: Consult-II Display - Touch "Smart Entrance
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "REAR DEFOGGER".

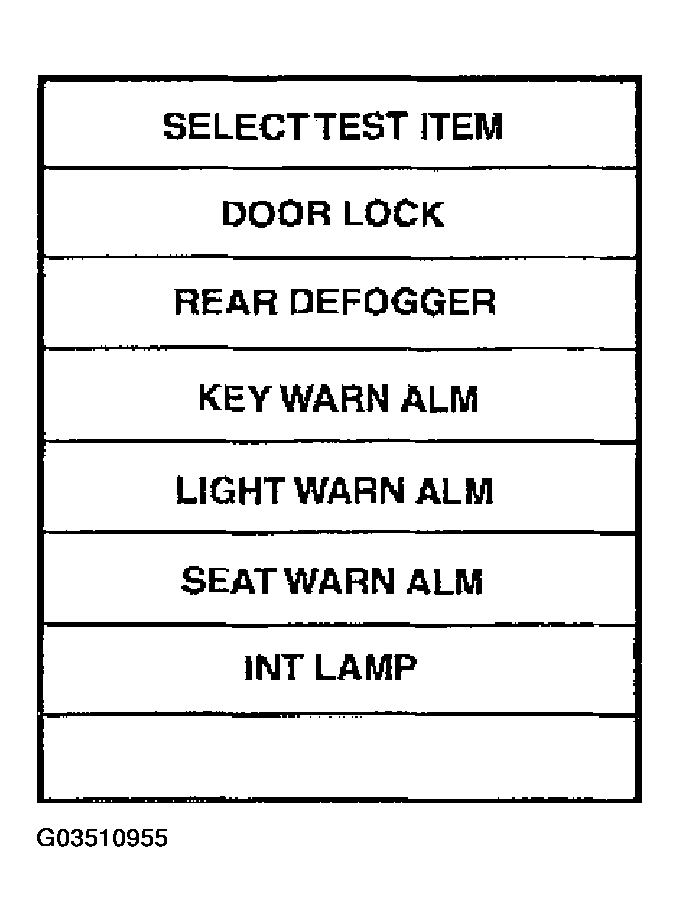

Fig 4: Consult-II Display - Touch Rear Defogger
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR" and "ACTIVE TEST" are available.

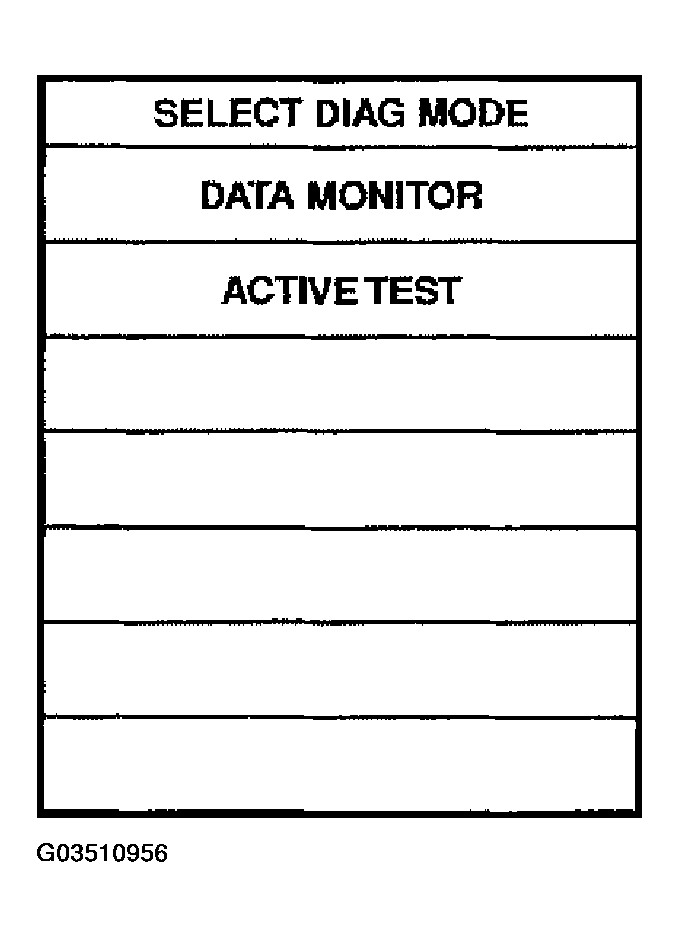

Fig 5: Consult-II Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
