Security Indicator Lamp Check

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CHECK INDICATOR LAMP OPERATION
With CONSULT-II

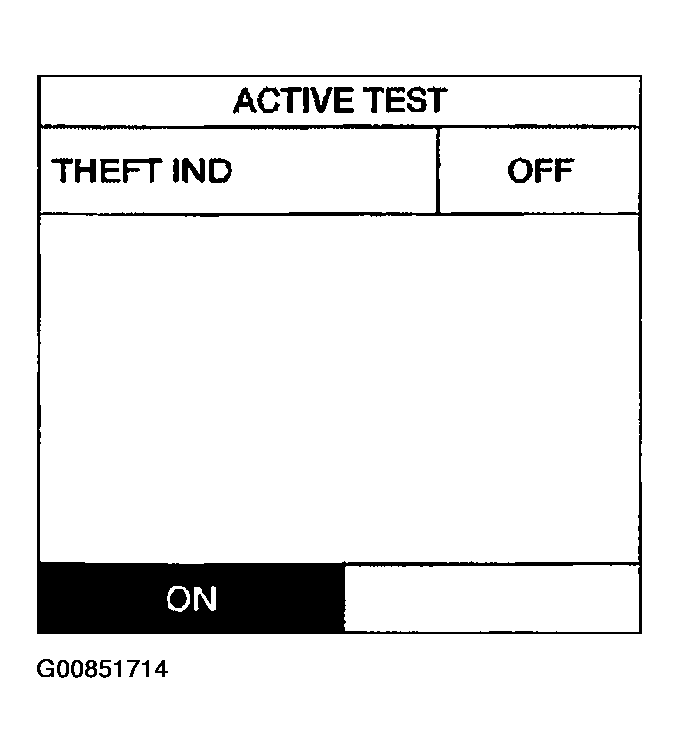

1. Select "ACTIVE TEST" in "THEFT WAR ALM" with CONSULT-II.
2. Select "THEFT IND" and touch "ON".
Security indicator lamp should illuminate.

Fig 1: Identifying Security Indicator Lamp
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Disconnect smart entrance control unit harness connector.
2. Check voltage between smart entrance control unit harness connector terminal 31 and ground.

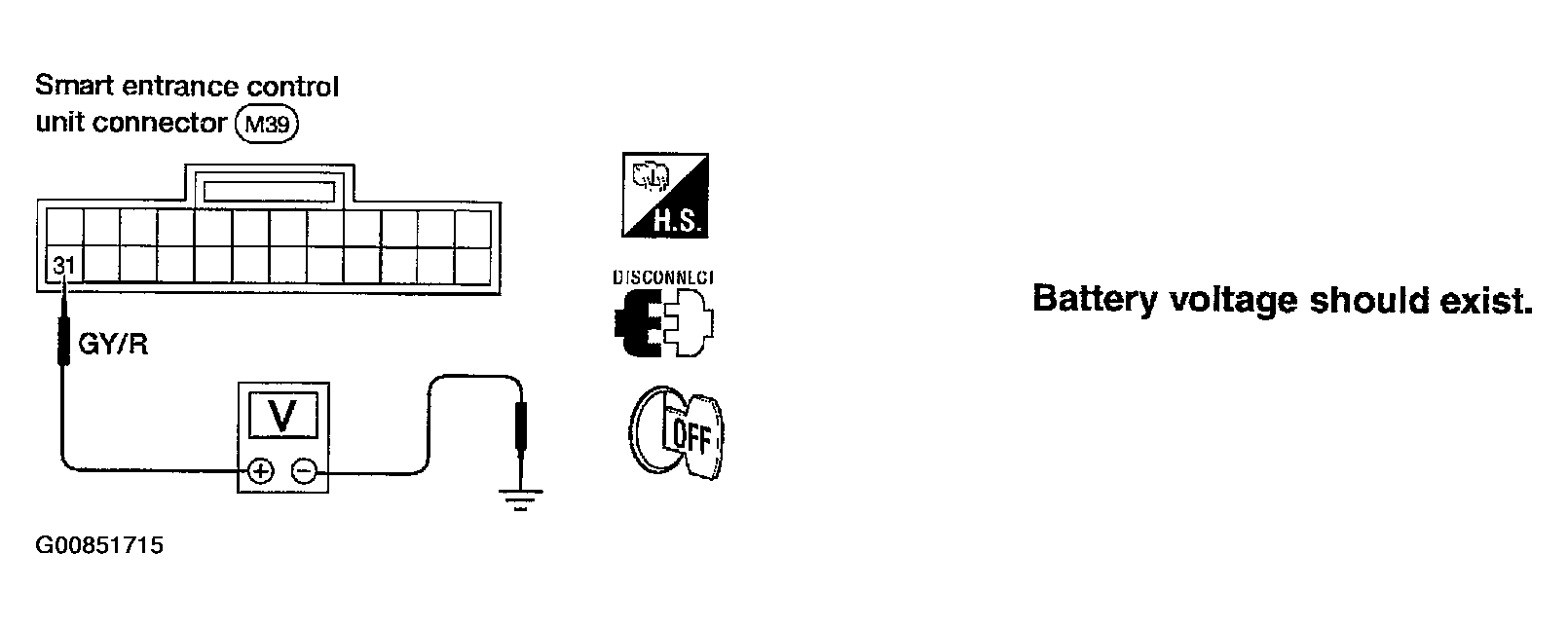

Fig 2: Disconnecting Smart Entrance Control Unit Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "SMART ENTRANCE CONTROL UNIT TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND ".

OK or NG
1. OK: Security indicator lamp is OK.
2. NG: GO TO 2.
CHECK SECURITY INDICATOR LAMP
Refer to "SMART ENTRANCE CONTROL UNIT TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND GROUND ".

OK or NG
1. OK: GO TO 3.
2. NG: Replace security indicator lamp.
CHECK POWER SUPPLY CIRCUIT FOR SECURITY INDICATOR LAMP
1. Disconnect security indicator lamp connector.
2. Check voltage between security indicator lamp terminal 1 and ground.

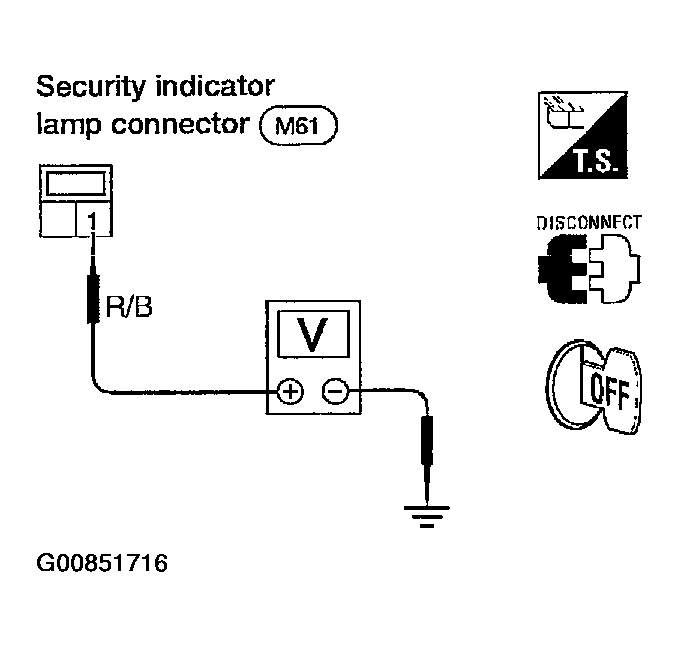

  Fig 3: Identifying Power Supply Circuit For Security Indicator Lamp
  Courtesy of NISSAN MOTOR CO., U.S.A.
Does battery voltage exist?
1. Yes: Check harness for open or short between security indicator lamp and smart entrance control unit.
2. No: Check the following.
  - 10A fuse [No. 12, located in fuse block (J/B)]
  - Harness for open or short between security indicator lamp and fuse
