Power Supply Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

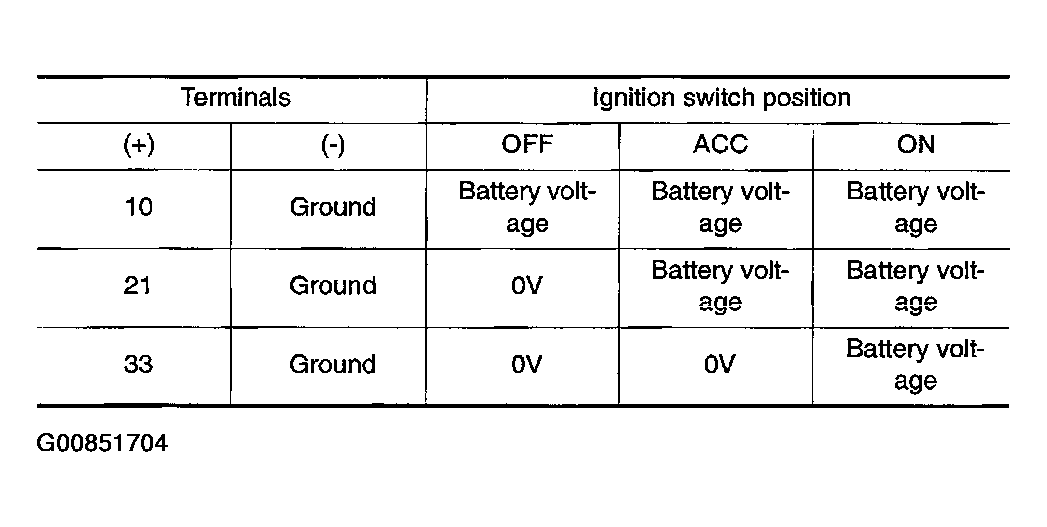

Fig 1: Identifying Power Supply Circuit Table
G00851704Courtesy of NISSAN MOTOR CO., U.S.A.

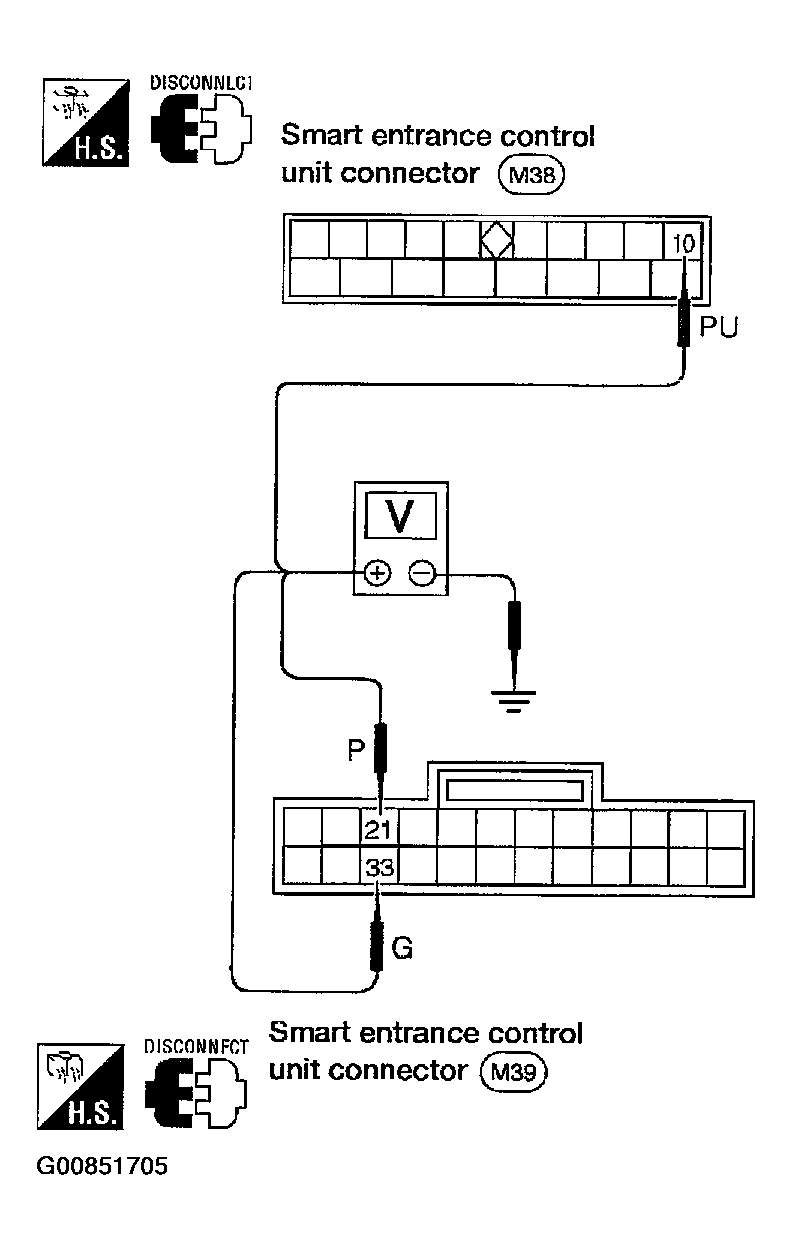

Fig 2: Identifying Power Supply Circuit
G00851705Courtesy of NISSAN MOTOR CO., U.S.A.
