Vehicle Security (Theft Warning) System: Schematic

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

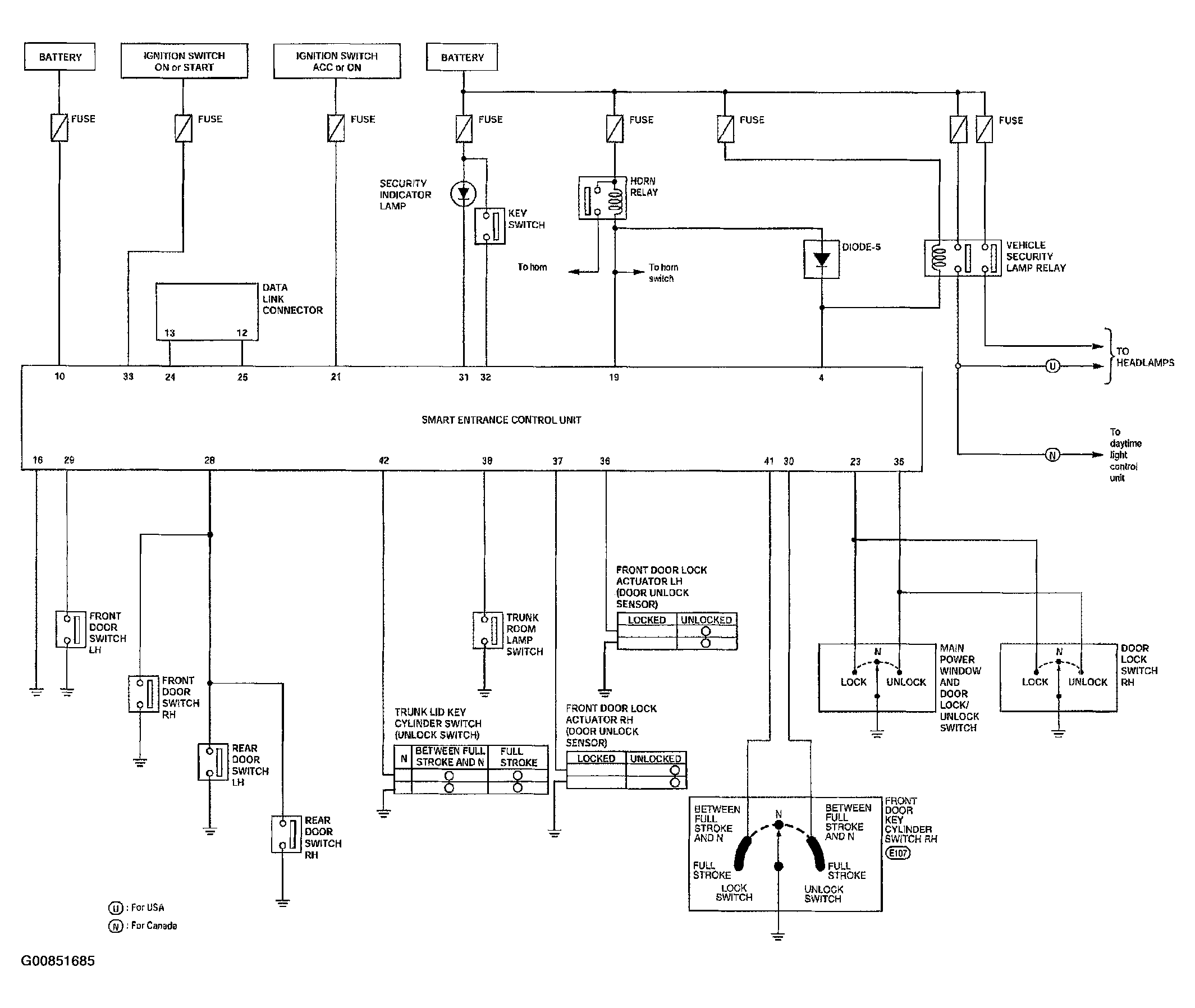

Fig 1: Identifying Vehicle Security (Theft Warning) System
G00851685Courtesy of NISSAN MOTOR CO., U.S.A.
