Vehicle Security Lamp Relay

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

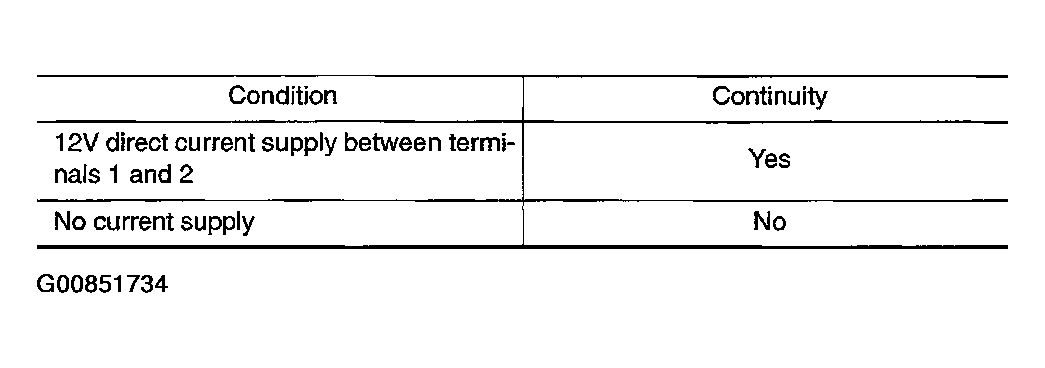

Check continuity between terminals 3 and 5, 6 and 7.

Fig 1: Identifying Electrical Components

Courtesy of NISSAN MOTOR CO., U.S.A.

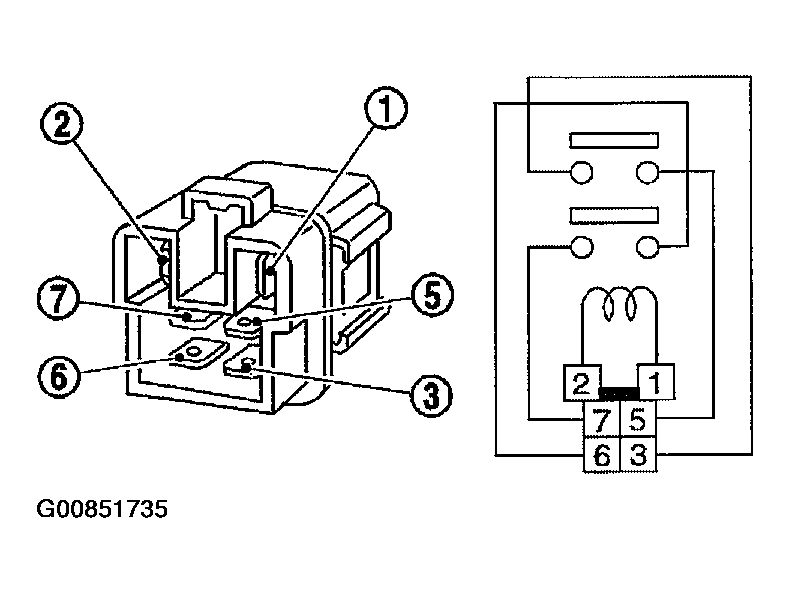

Fig 2: Identifying Vehicle Security Lamp Relay

Courtesy of NISSAN MOTOR CO., U.S.A.
