"Theft War ALM"

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.

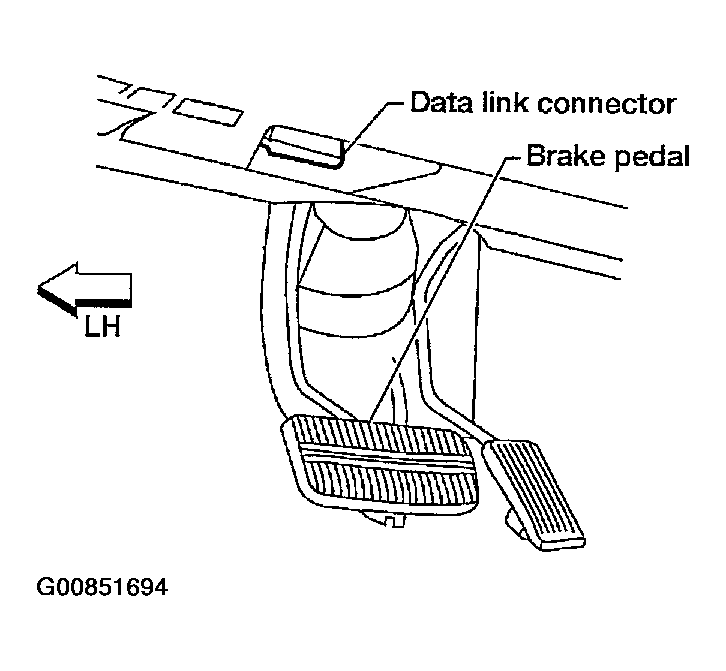

Fig 1: Identifying Brake Pedals
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect "CONSULT-II" to the data link connector.
Turn ignition switch ON.

Fig 2: Identifying Ignition Switch On
Courtesy of NISSAN MOTOR CO., U.S.A.

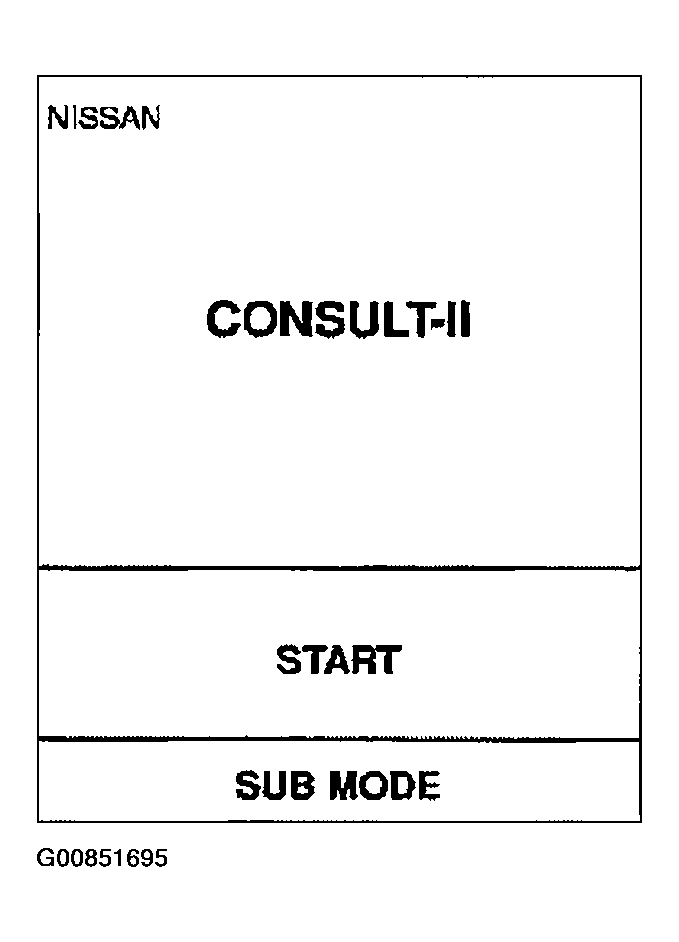

Touch "START".
Touch "SMART ENTRANCE".

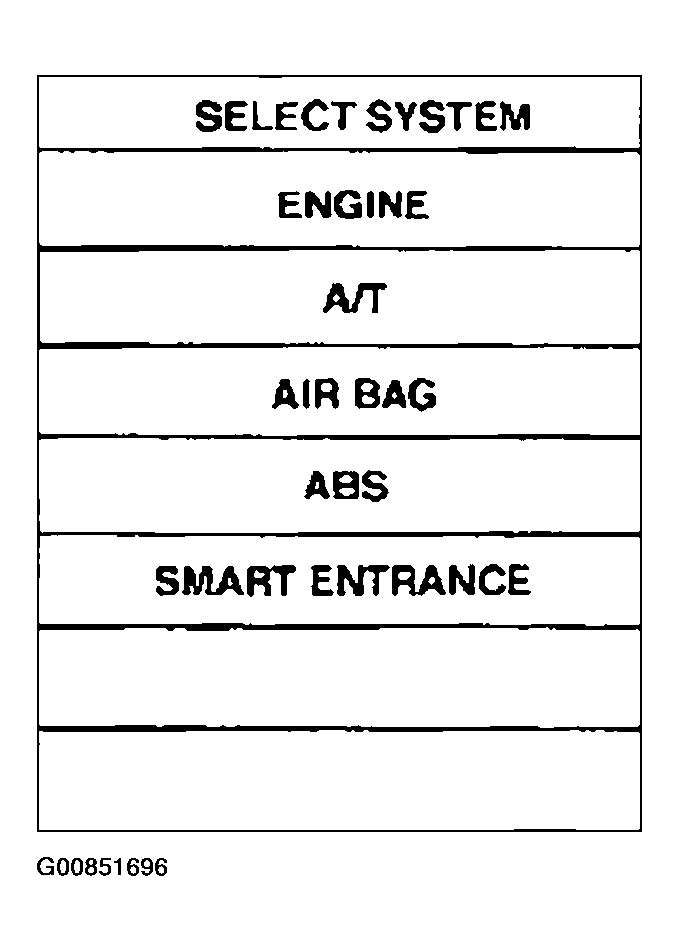

Fig 3: Smart Entrance Scan Tool Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "THEFT WAR ALM".

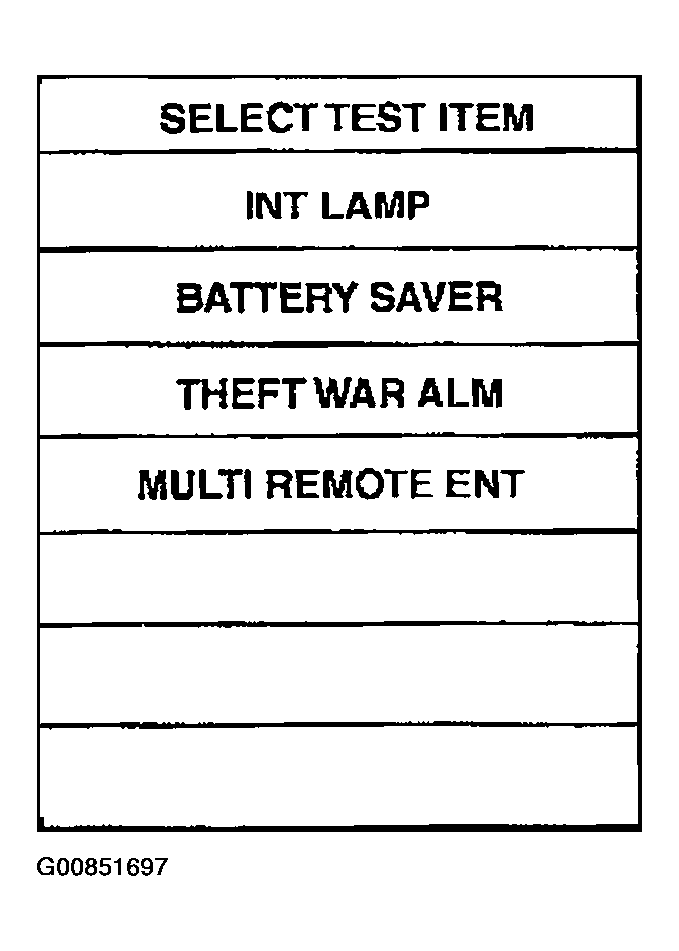

Fig 4: Theft War Alm Scan Tool Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.

"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

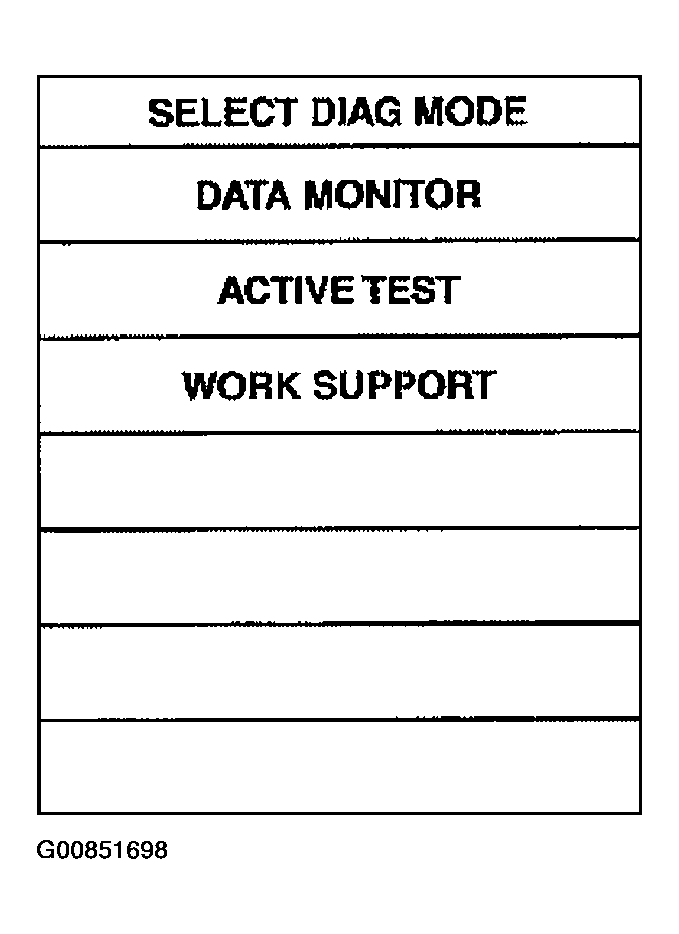

Fig 5: Data Monitor Scan Tool Display

Courtesy of NISSAN MOTOR CO., U.S.A.
