Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Replace anchor bolts if they are deformed or worn out.

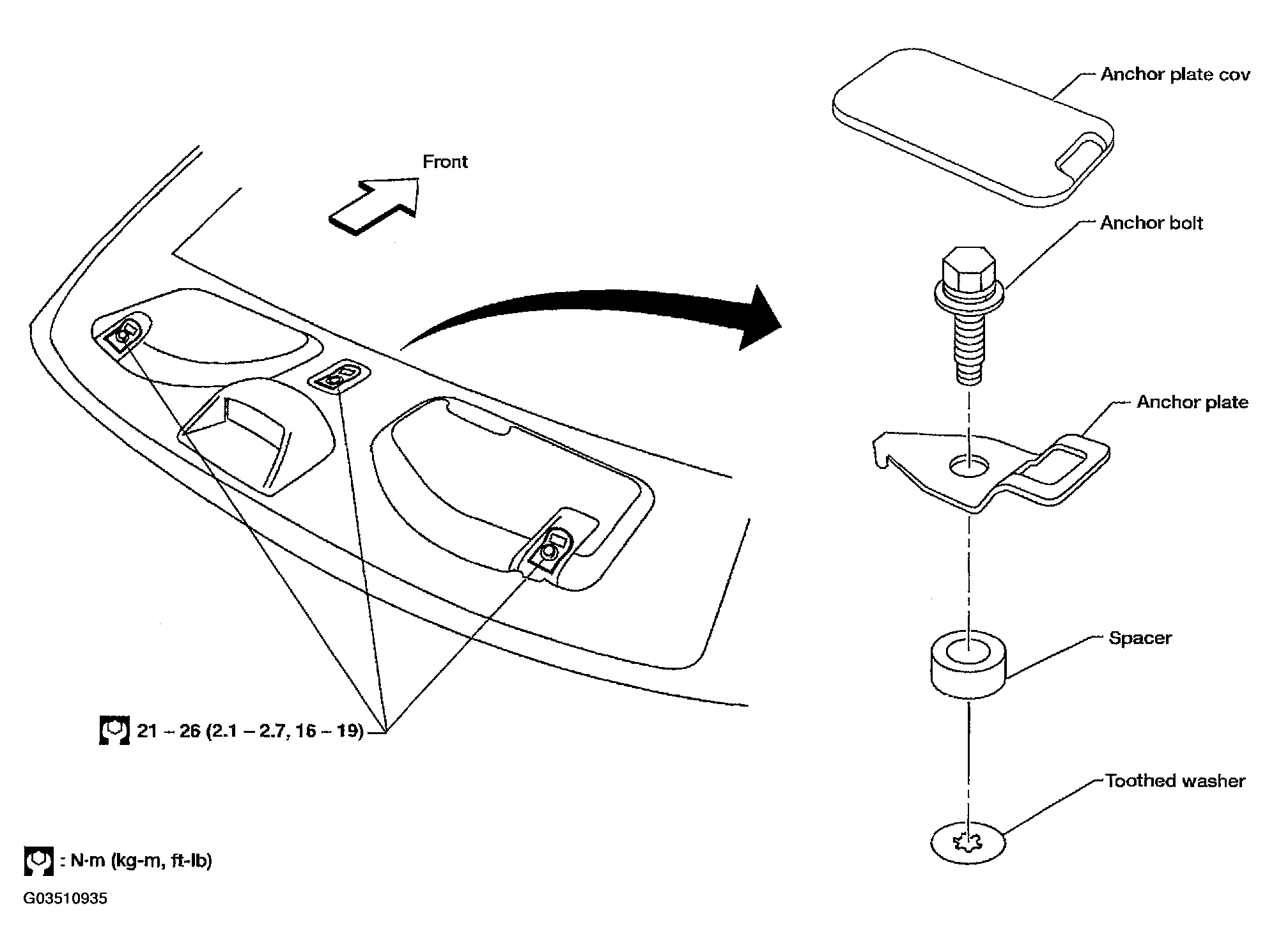

Fig 1: Removing Anchor Plate Cover

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove anchor plate cover. Refer to "SIDE AND FLOOR TRIM " for details.
Remove anchor plate.
NOTE:
- To install, reverse the removal procedure sequence.
