Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat. Refer to REAR SEAT for details.
Remove outer and floor anchor bolt. A B
Remove rear side garnish. Refer to "SIDE AND FLOOR TRIM " for details.
Remove rear parcel shelf finisher. Refer to "SIDE AND FLOOR TRIM " for details.
Remove bolts securing rear seat belt retractor, then remove seat belt and seat belt retractor. C D

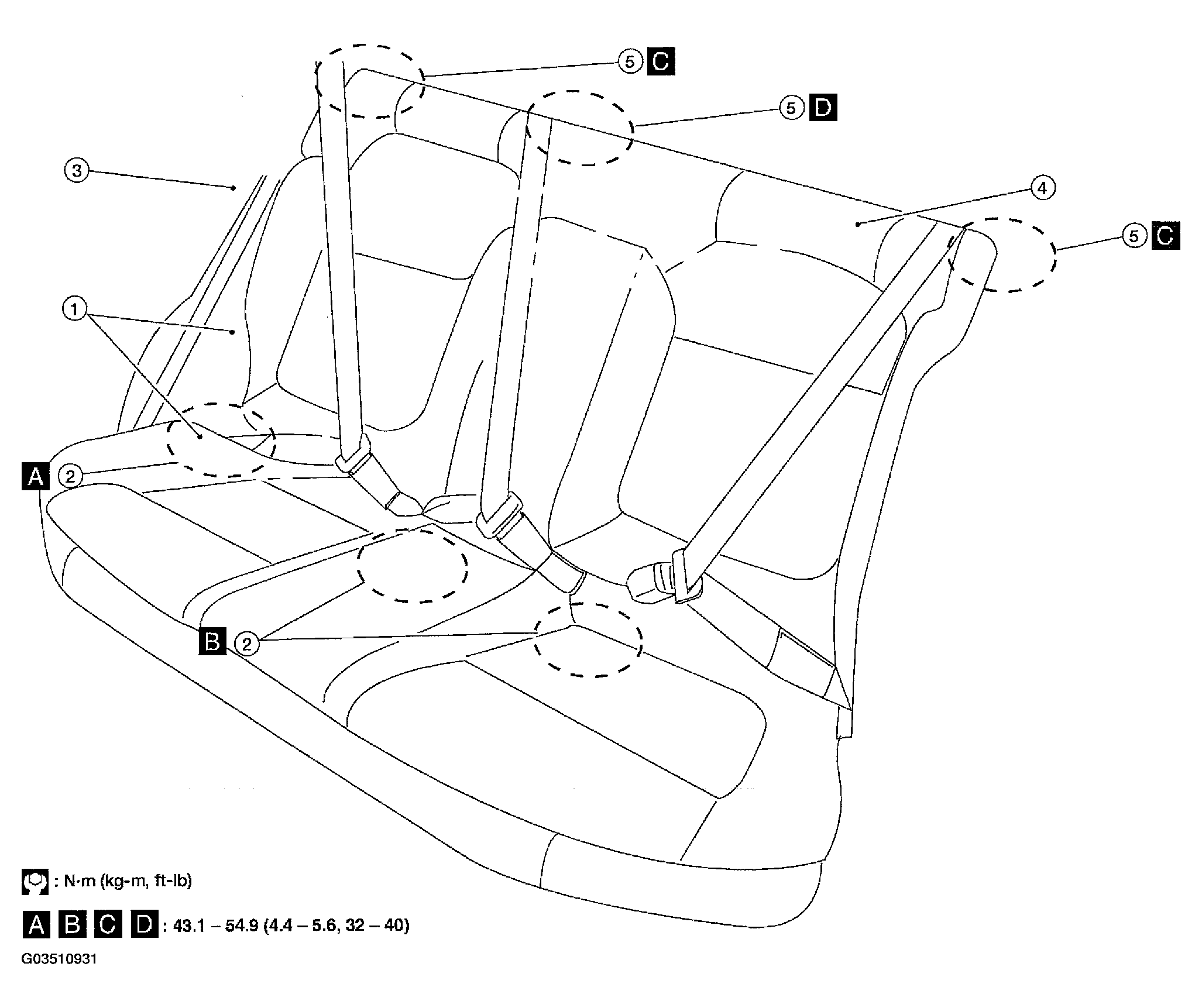

Fig 1: Removing Rear Seat (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

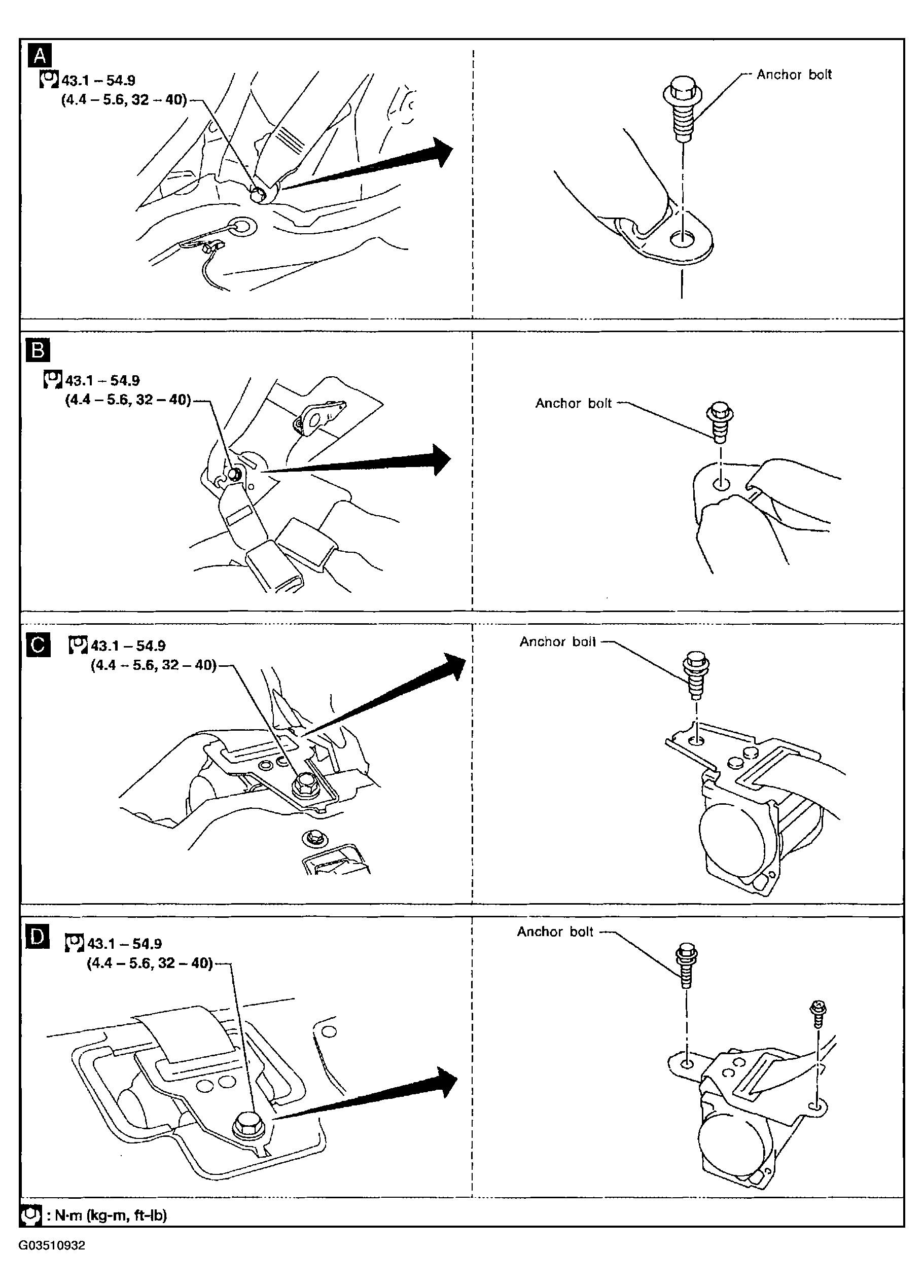

Fig 2: Removing Rear Seat (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
