Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Replace anchor bolts if they are deformed or worn out.

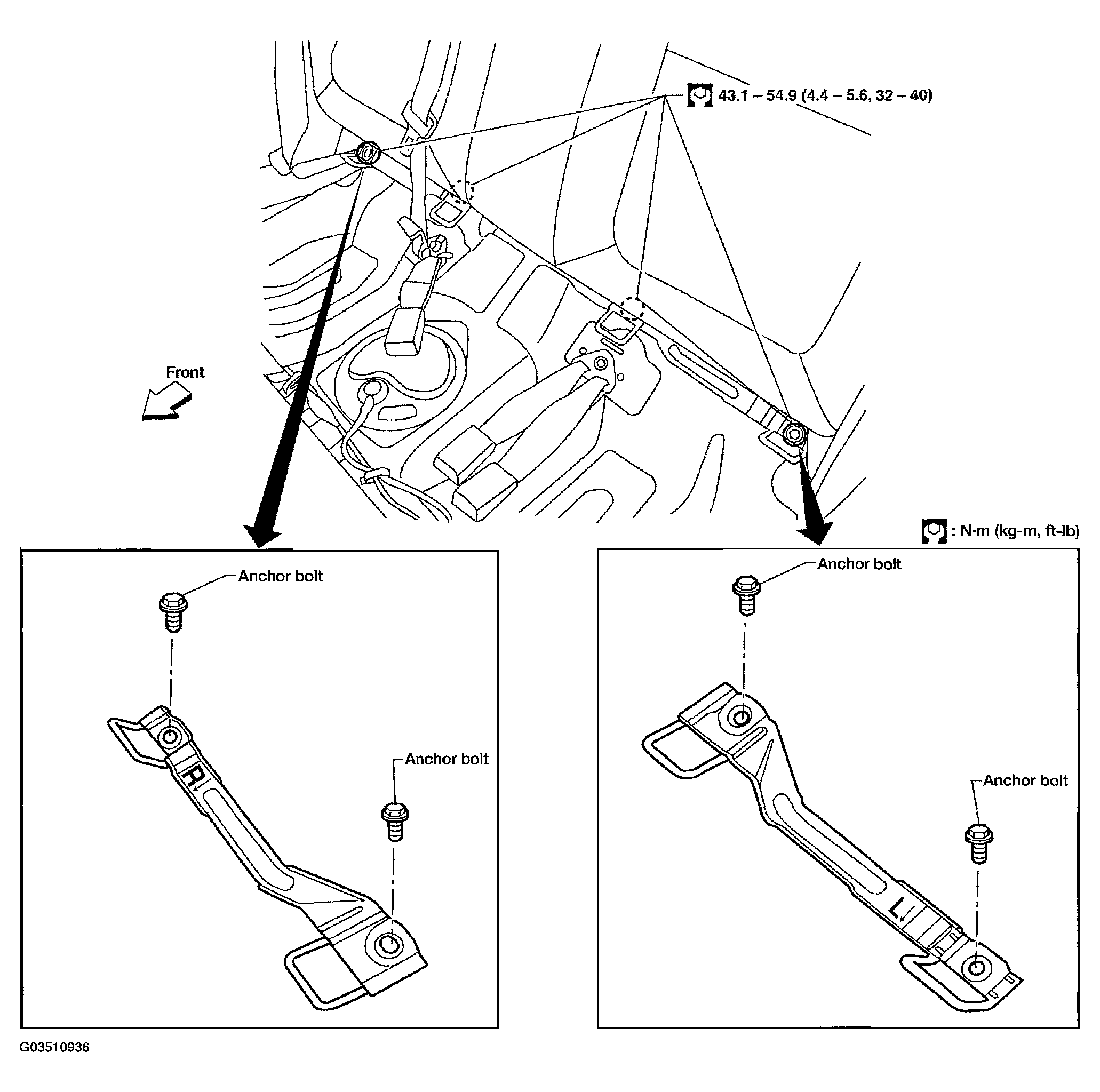

Fig 1: Removing Latch (Lower Anchors And Tether For Children) System

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove rear seat cushion. Refer to "REAR SEAT " for details.
Remove LH and RH LATCH System anchors.

NOTE: LH and RH LATCH System anchors are different.
Install with arrow facing forward.
