Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect both battery cables.
Slide the seat all the way forward and tilt the seat back toward the front.
Remove adjuster cover. A
Remove floor anchor bolt. B
Remove shoulder anchor bolt. C
Remove center pillar upper and lower garnish. Refer to SIDE AND FLOOR TRIM for details.
Disconnect front seat belt pre-tensioner connector.
- For removal/installation of the direct-connect SRS connectors, refer to AIR BAG RESTRAINT SYSTEMS .
Remove the screw securing front seat belt pre-tensioner retractor, then remove seat belt and seat belt pre-tensioner retractor.
Remove bolts securing seat belt adjuster, then remove seat belt adjuster.

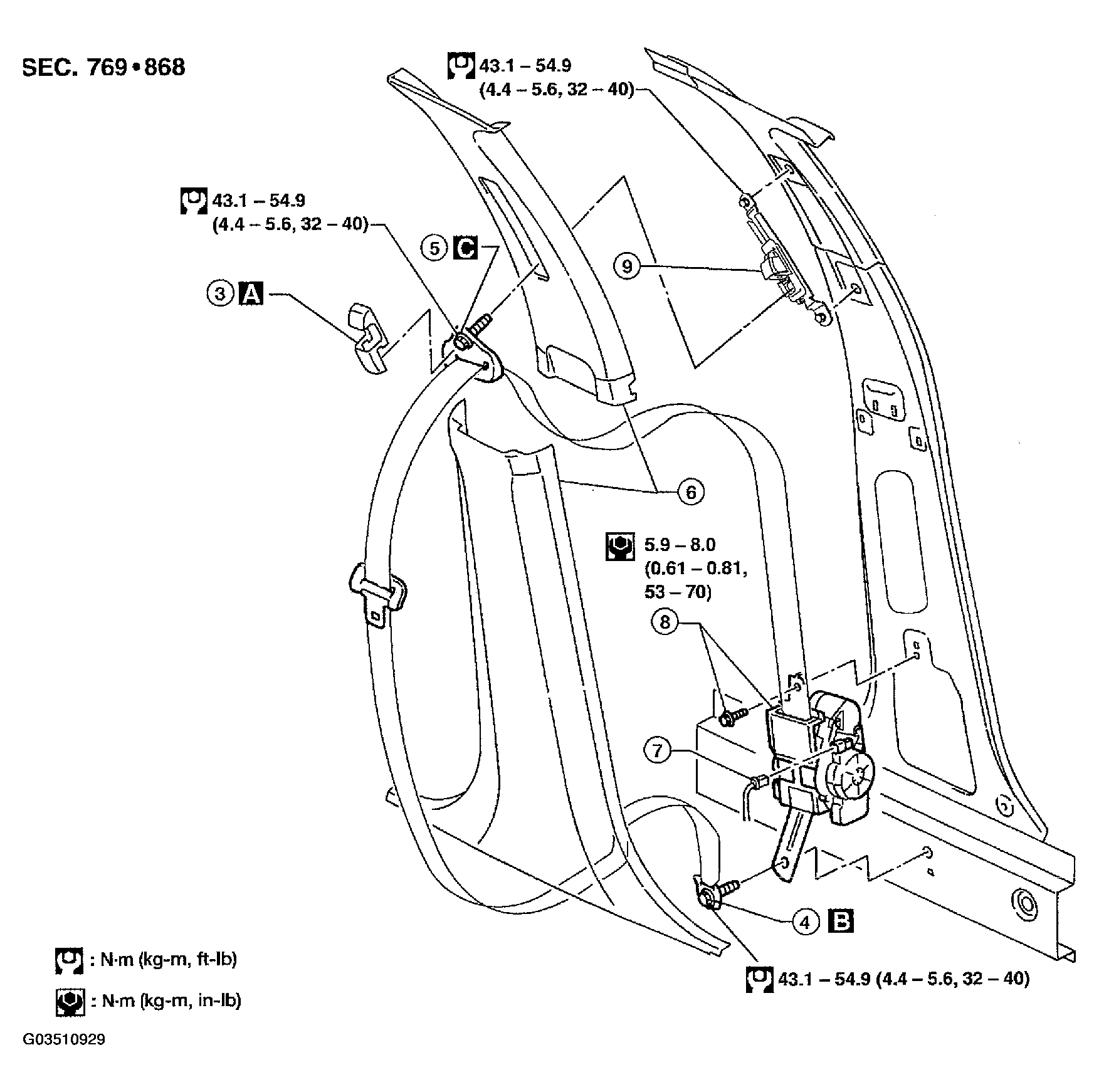

Fig 1: Removing Seat Belt (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

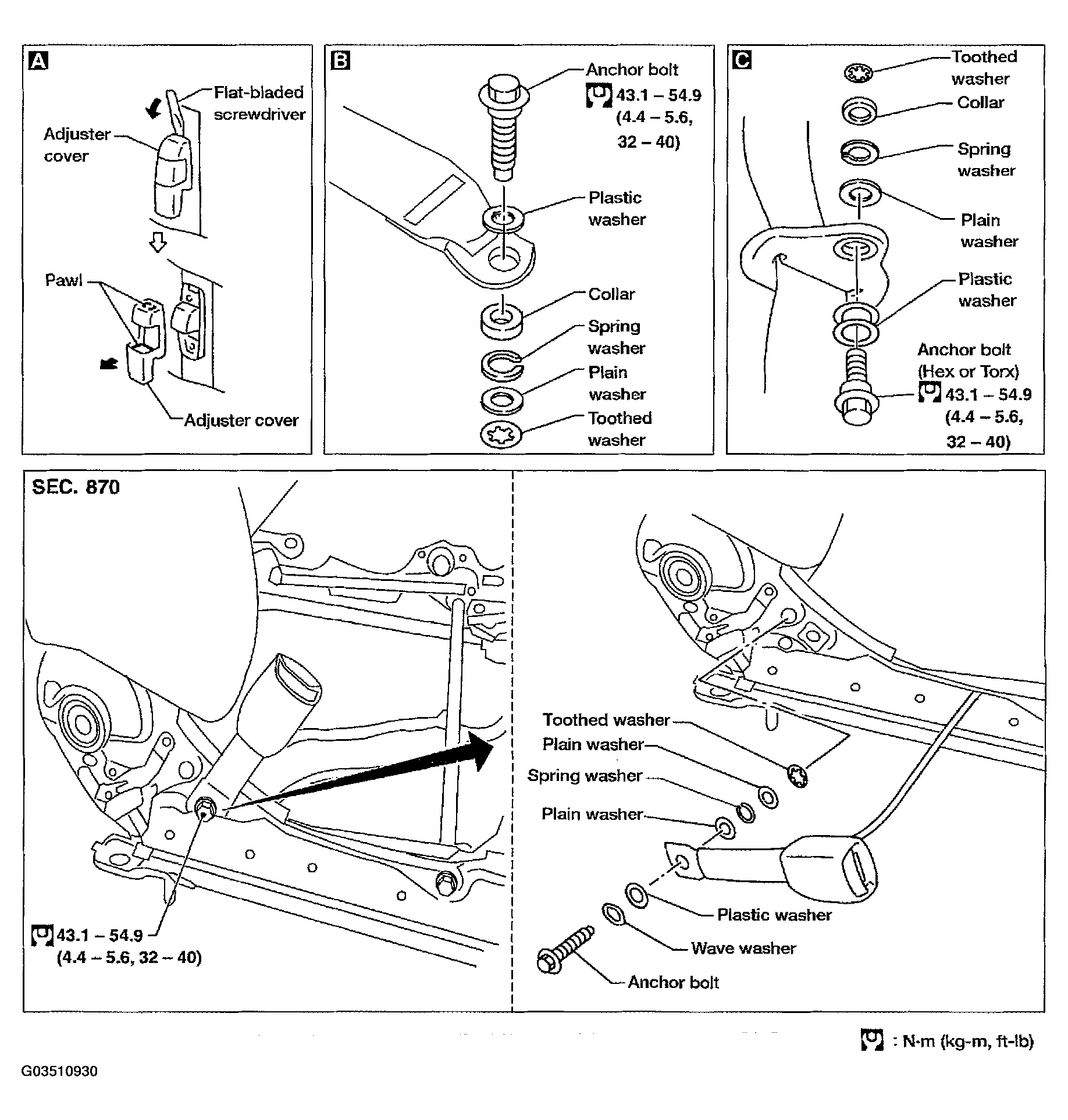

Fig 2: Removing Seat Belt (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
