Steering Column: Removal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The rotation of the spiral cable (SRS "Air Bag" component part) is limited. If the steering gear must be removed, set the front wheels in the straight-ahead direction. Do not rotate the steering column while the steering gear is removed.
  • Remove the steering wheel before removing the steering lower joint to avoid damaging the SRS spiral cable.
  1. Disconnect the battery negative terminal.
  2. Remove the steering wheel. Refer to "STEERING WHEEL ".
  3. Removal spiral cable. Refer to DRIVER-SIDE AIR BAG MODULE & SPIRAL CABLE .
  4. Disconnect data link connector.
  5. Remove lower instrument panel and lower reinforcement panel. Refer to INSTRUMENT PANEL ASSEMBLY
  6. Remove the column covers.
  7. Disconnect electrical connectors.
  8. Remove three screws securing combination switch and remove combination switch.

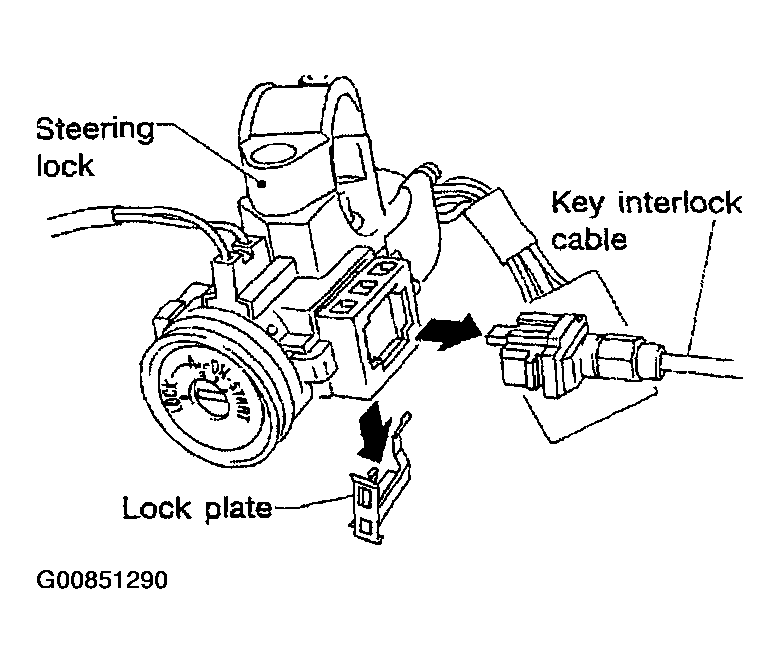

  9. Remove key interlock cable (A/T models).
  10. Remove the hole cover, then remove bolt from lower joint.
  11. Remove the steering column lower cover.
  12. Remove four nuts securing steering column and remove steering column.
Fig 1: Removing Steering Column
G00851290Courtesy of NISSAN MOTOR CO., U.S.A.
