Section 1186 (Power Steering Gear And Linkage)
>>
Preparation
>>
Special Service Tools
Special Service Tools
WARNING:
This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

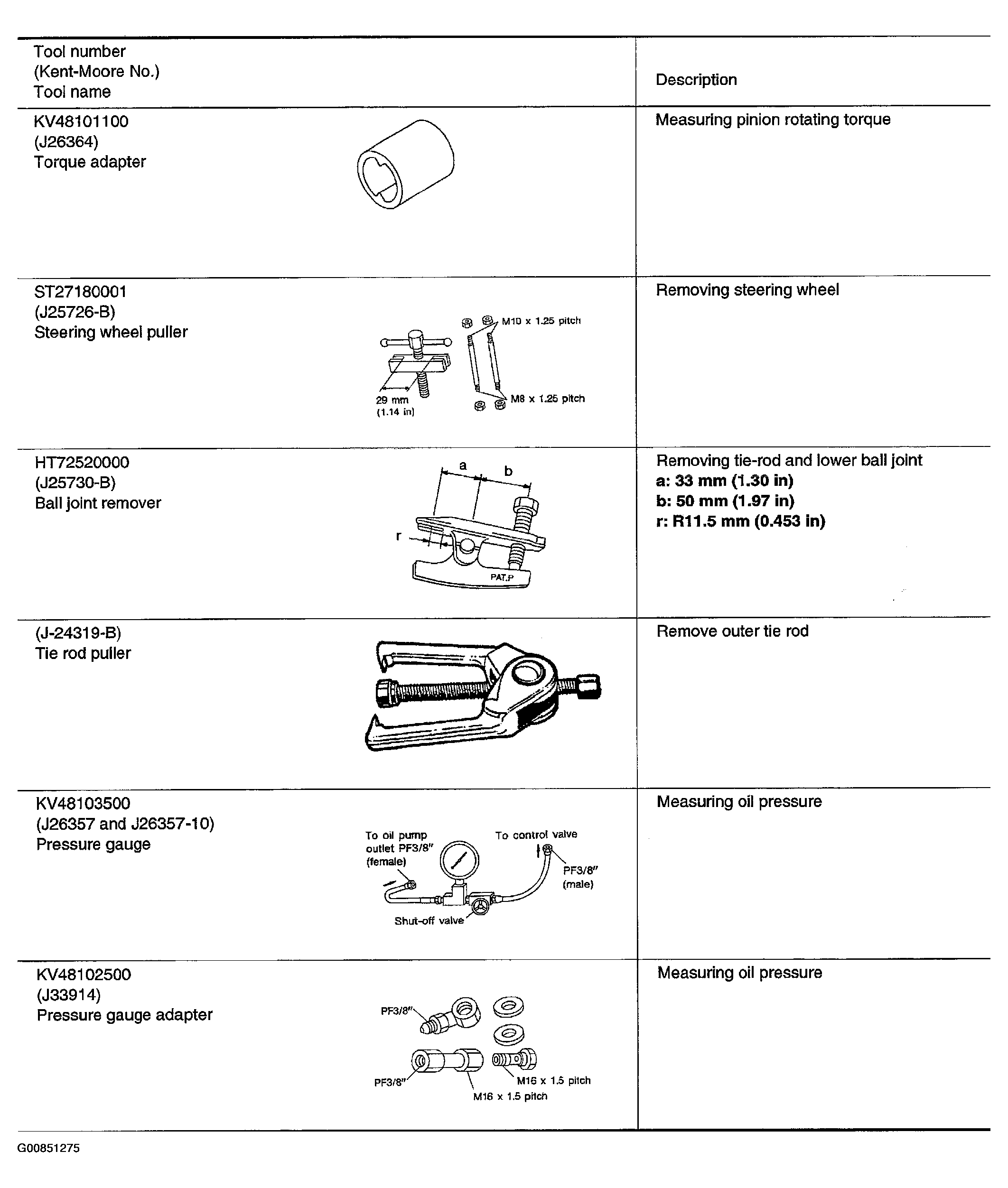

Fig 1: Identifying Special Service Tools (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

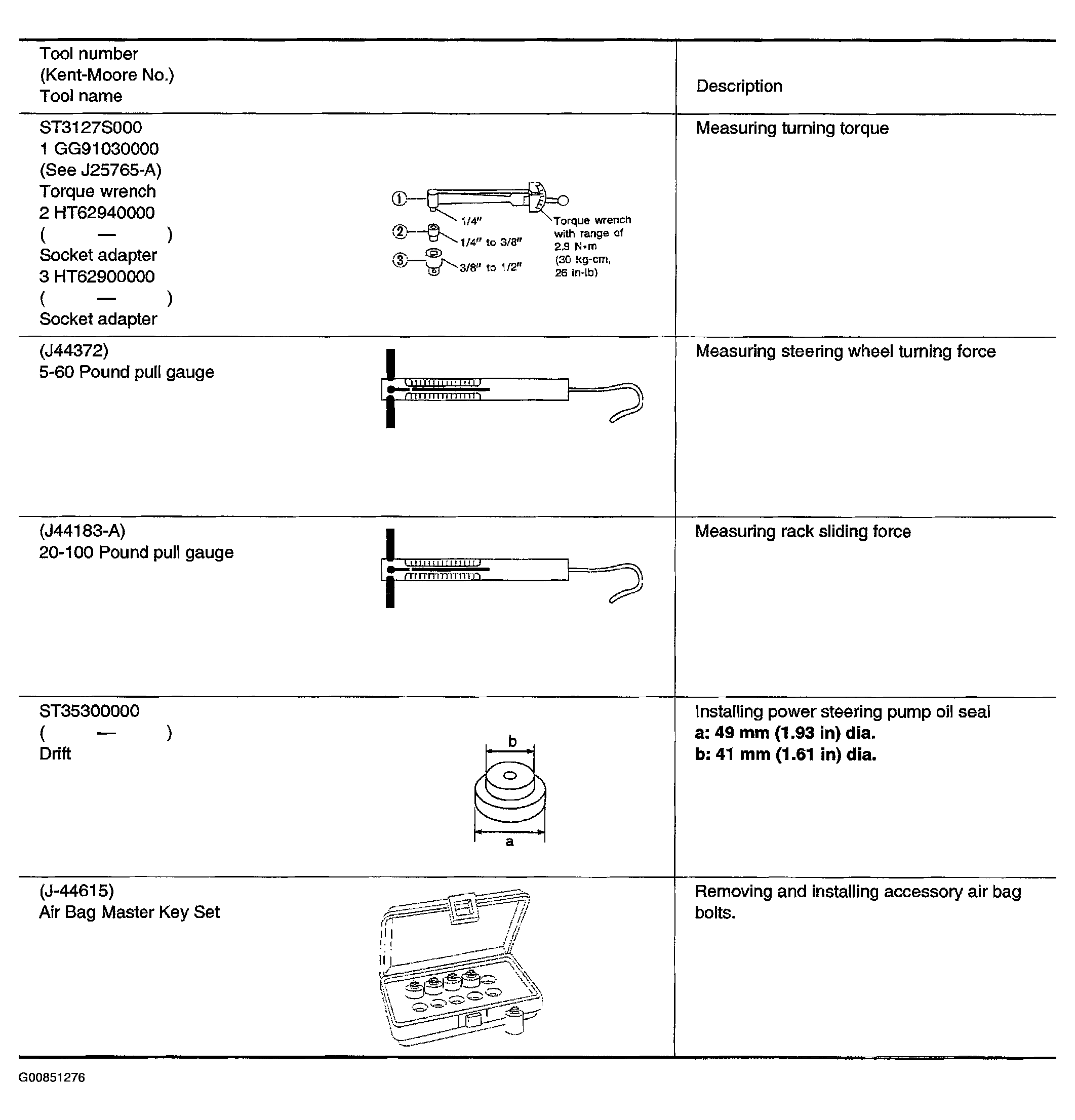

Fig 2: Identifying Special Service Tools (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
