Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Assemble oil pump, noting the following.

Make sure O-rings and oil seal are properly installed.
Always install new O-rings and oil seal.
Be careful of oil seal direction.
Cam ring, rotor and vanes must be replaced as a set if necessary.
Coat each part with Genuine NISSAN PSF or equivalent, when assembling.

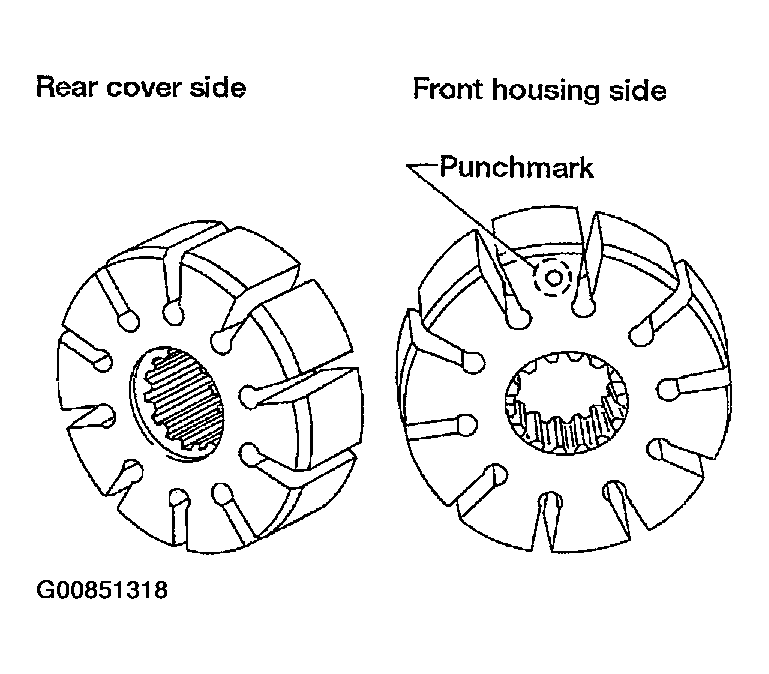

Pay attention to the direction of rotor.

Fig 1: Identifying Punch Mark
Courtesy of NISSAN MOTOR CO., U.S.A.

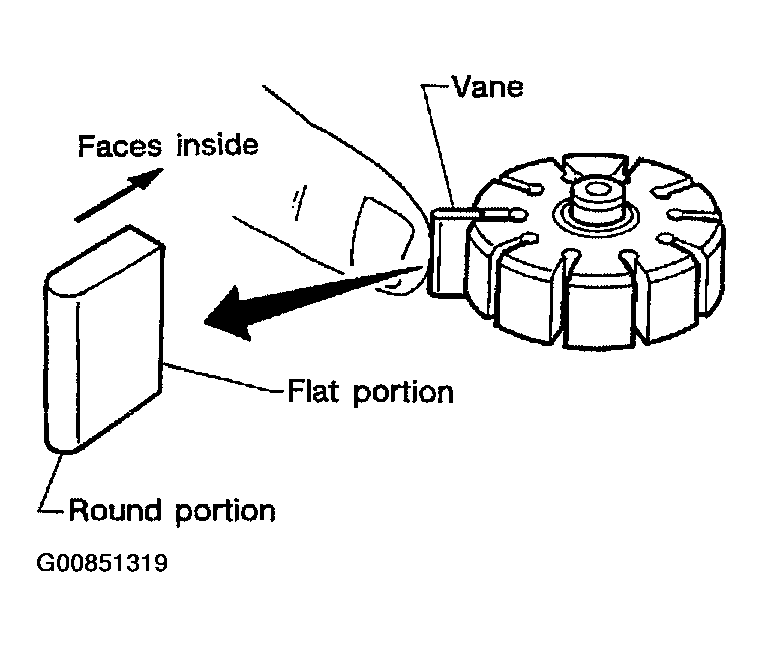

When assembling vanes to rotor, flat surfaces of vanes must face inside of rotor (rounded surfaces of vanes face cam ring side).

Fig 2: Identifying Flat Surfaces Of Vanes
Courtesy of NISSAN MOTOR CO., U.S.A.

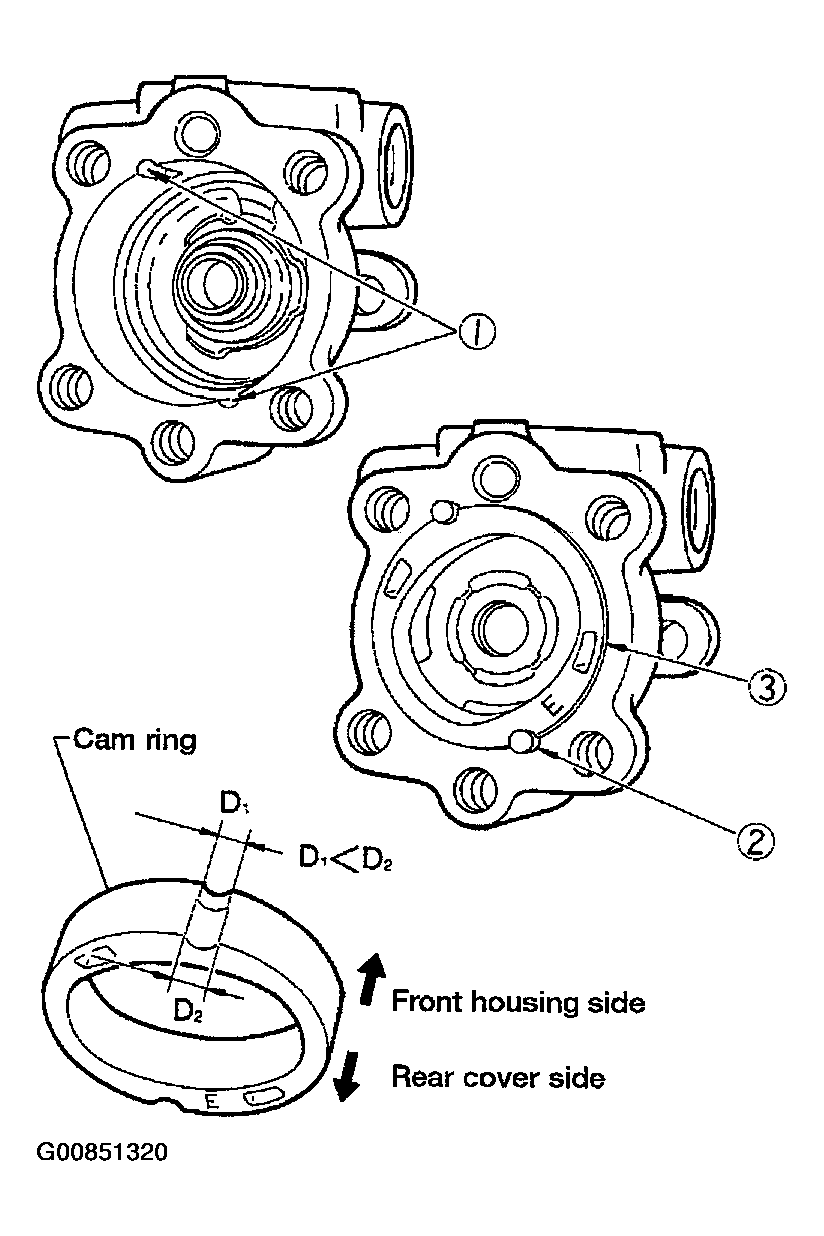

Insert pin 2 into pin groove 1 of front housing and front side plate. Then install cam ring 3 as shown at left.
Cam ring: D1 is less than D2.

Fig 3: Inserting Pin 2 Into Pin Groove 1 Of Front Housing And Front Side Plate

Courtesy of NISSAN MOTOR CO., U.S.A.
