Tie-Rod Outer And Inner Sockets

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check outer and inner ball joints for swinging force "A" and axial end play "C".
Refer to "STEERING GEAR AND LINKAGE ".
Check outer ball joint for rotating torque "B".
Refer to "STEERING GEAR AND LINKAGE ".
Check condition of dust cover. If excessively cracked, replace outer tie-rod.

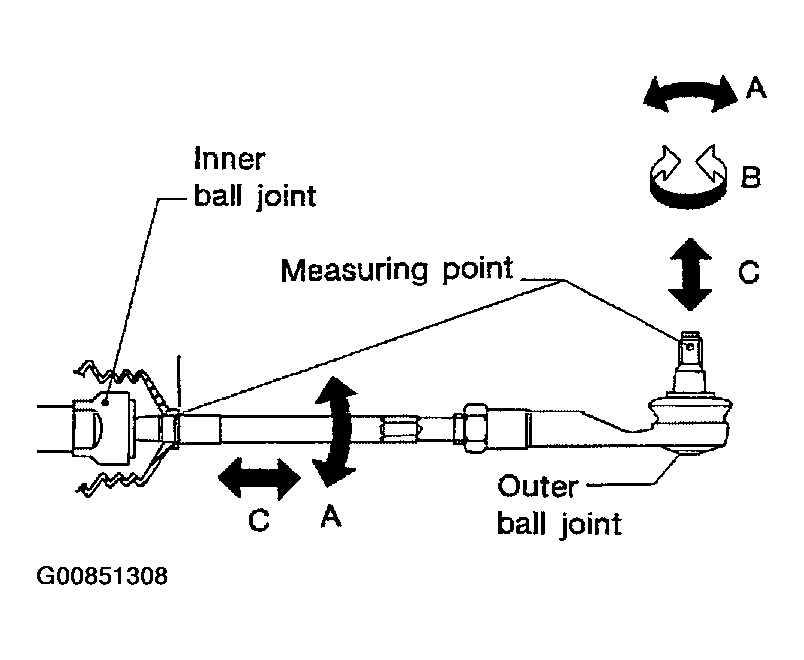

Fig 1: Checking Outer And Inner Ball Joints For Swinging Force

Courtesy of NISSAN MOTOR CO., U.S.A.
