Power Steering Gear And Linkage: Assembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

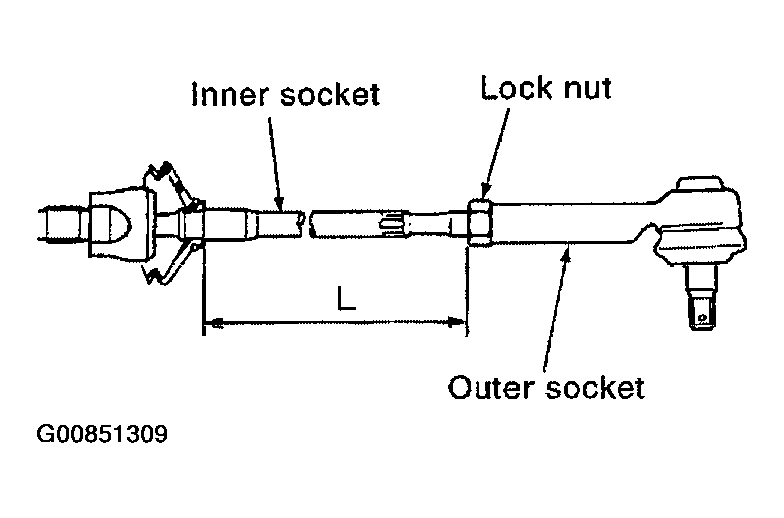

Install tie-rod inner sockets, dust boots and outer sockets.
Tighten outer socket lock nut.
Tie-rod length "L": Refer to "STEERING GEAR AND LINKAGE ".

Fig 1: Installing Tie-Rod Inner Sockets, Dust Boots And Outer Sockets
Courtesy of NISSAN MOTOR CO., U.S.A.

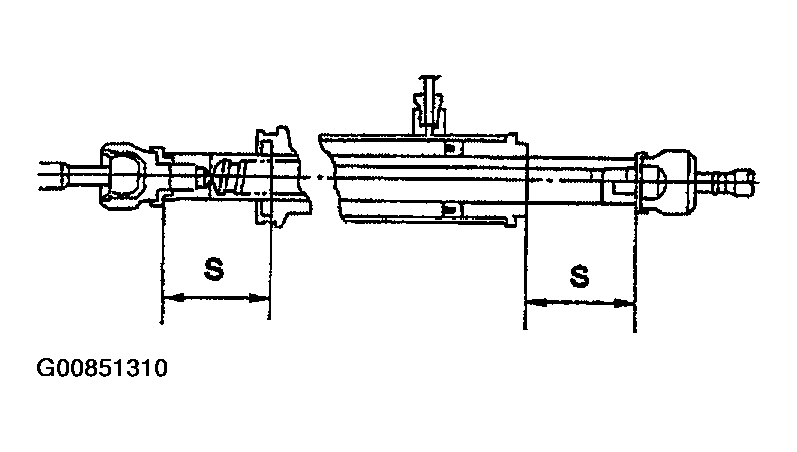

Measure rack stroke.
Rack stroke "S": Refer to "STEERING GEAR AND LINKAGE ".

Fig 2: Measuring Rack Stroke
Courtesy of NISSAN MOTOR CO., U.S.A.

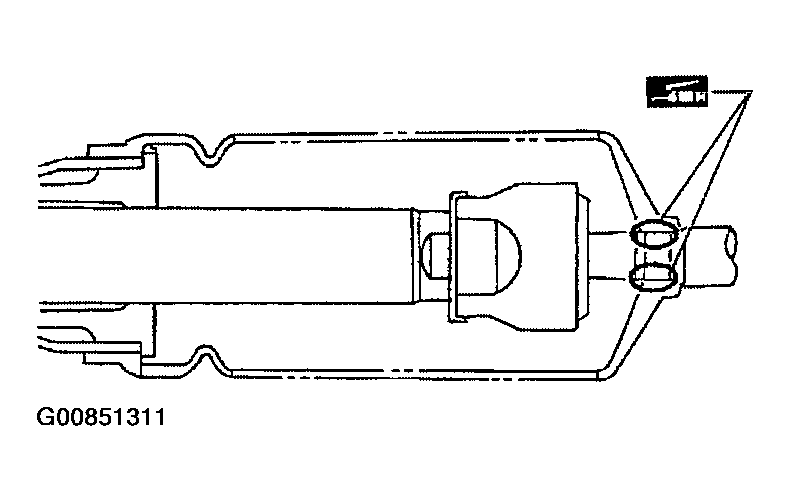

Before installing boot, coat the contact surfaces between boot and tie-rod with grease.

Fig 3: Coating Contact Surfaces Between Boot And Tie-Rod With Grease
Courtesy of NISSAN MOTOR CO., U.S.A.

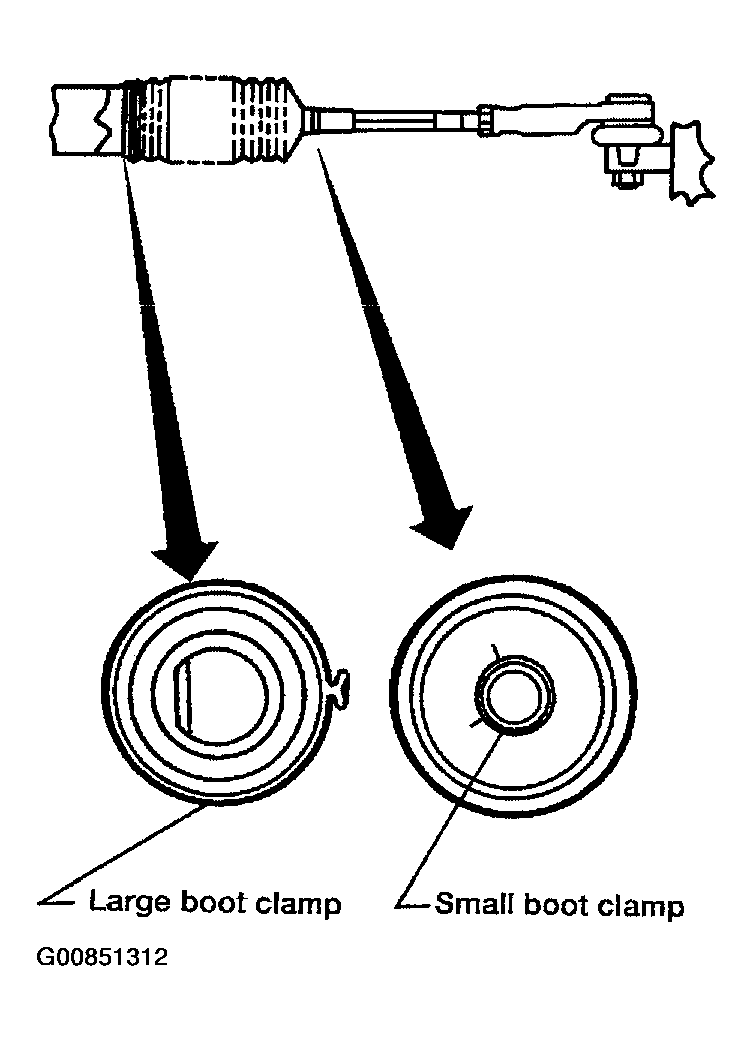

Install boot clamps.
- Install large boot clamp using suitable tool and crimp securely.
- Install small boot clamp as shown.

Fig 4: Installing Boot Clamps

Courtesy of NISSAN MOTOR CO., U.S.A.
