Front Wheel Turning Angle

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate steering wheel all the way right and left; measure turning angle.

    Turning angle of full turns: Refer to FRONT WHEEL ALIGNMENT

  2. If it is not within specification, check rack stroke.

    Rack stroke "S": Refer to "STEERING GEAR AND LINKAGE "

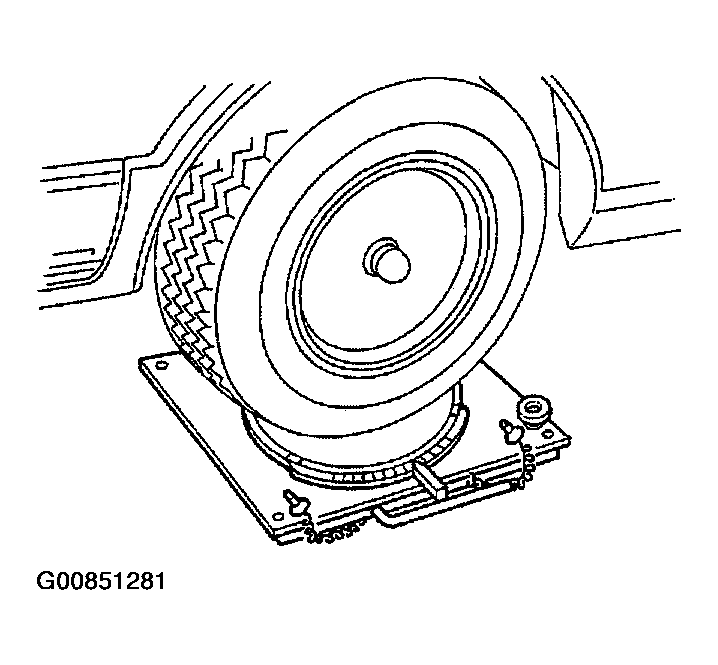

Fig 1: Measuring Turning Angle
G00851281Courtesy of NISSAN MOTOR CO., U.S.A.
