Checking Fluid Level

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check fluid level, referring to the scale on reservoir tank.

Use "HOT" range for fluid temperatures of 50 - 80°C (122 - 176°F).
Use "COLD" range for fluid temperatures of 0 - 30°C (32 - 86°F).

CAUTION:

Do not overfill.
Recommended fluid is Genuine NISSAN PSF or equivalent.

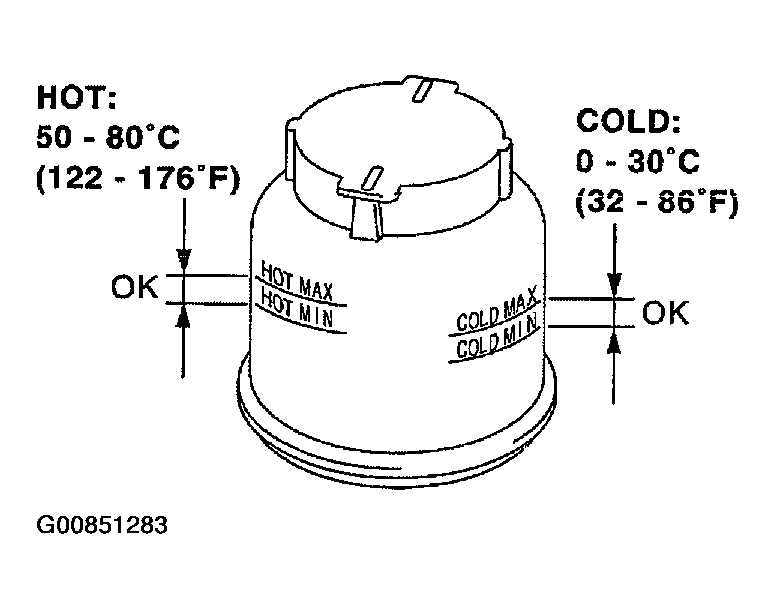

Fig 1: Checking Fluid Level

Courtesy of NISSAN MOTOR CO., U.S.A.
