Wheel Bearing

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

When replacing wheel bearing, replace complete wheel bearing assembly (inner race and outer race).

Remove bearing inner race.

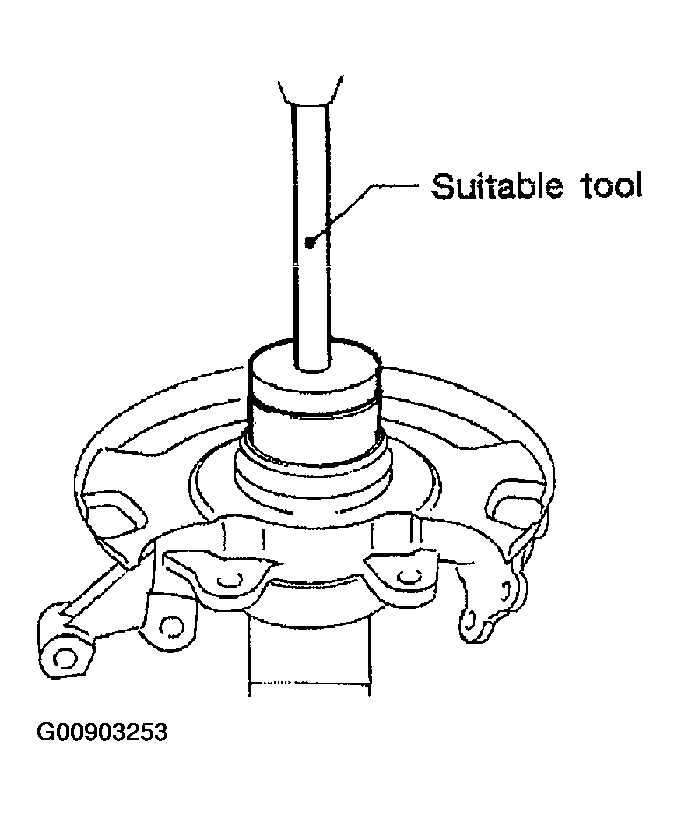

Fig 1: Removing Bearing Inner Race
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap rings.

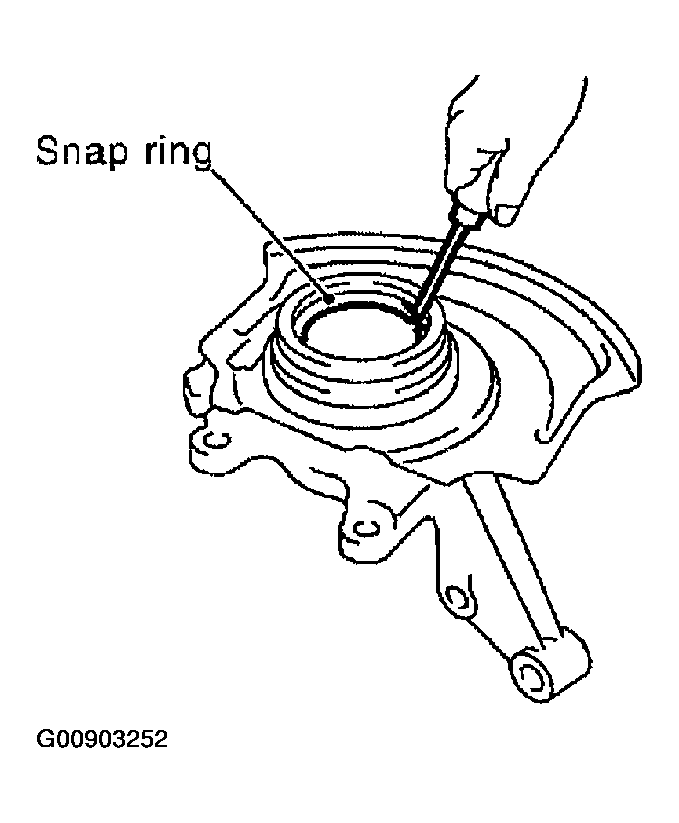

Fig 2: Removing Snap Rings
Courtesy of NISSAN MOTOR CO., U.S.A.
Press out bearing outer race.
Remove baffle plate, if required.

Fig 3: Removing Baffle Plate

Courtesy of NISSAN MOTOR CO., U.S.A.
