Stall Test Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check A/T fluid and engine oil levels. If necessary, add fluid and oil.
  2. Drive vehicle for approx. 10 minutes or until fluid and oil reach operating temperature.
    1. ATF operating temperature: 50 - 80°C (122 - 176°F)
  3. Set parking brake and block wheels.
  4. Install a tachometer where it can be seen by driver during test.
    • It is good practice to mark the point of specified engine rpm on indicator.

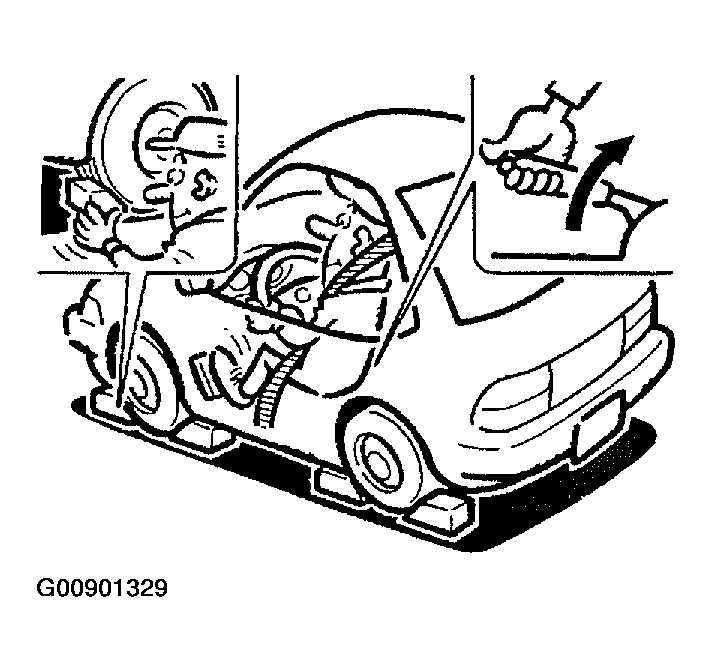

    Fig 1: Setting Parking Brake
    G00901329Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Start engine, apply foot brake, and place selector lever in D position.
  6. Accelerate to wide open throttle gradually while applying foot brake.
  7. Quickly note the engine stall revolution and immediately release throttle.
    • During test, never hold throttle wide open for more than 5 seconds.
      1. Stall revolution: 2, 350 - 2, 800 rpm

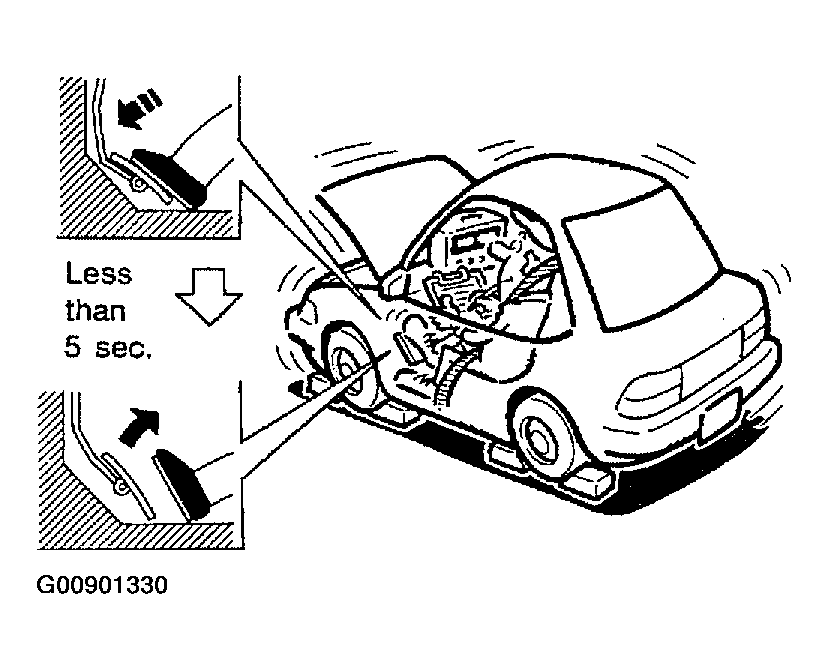

    Fig 2: Applying Foot Brake
    G00901330Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Move selector lever to N position.
  9. Cool off ATF.
    • Run engine at idle for at least one minute.
  10. Repeat steps 5 through 9 with selector lever in 2, 1 and R positions.

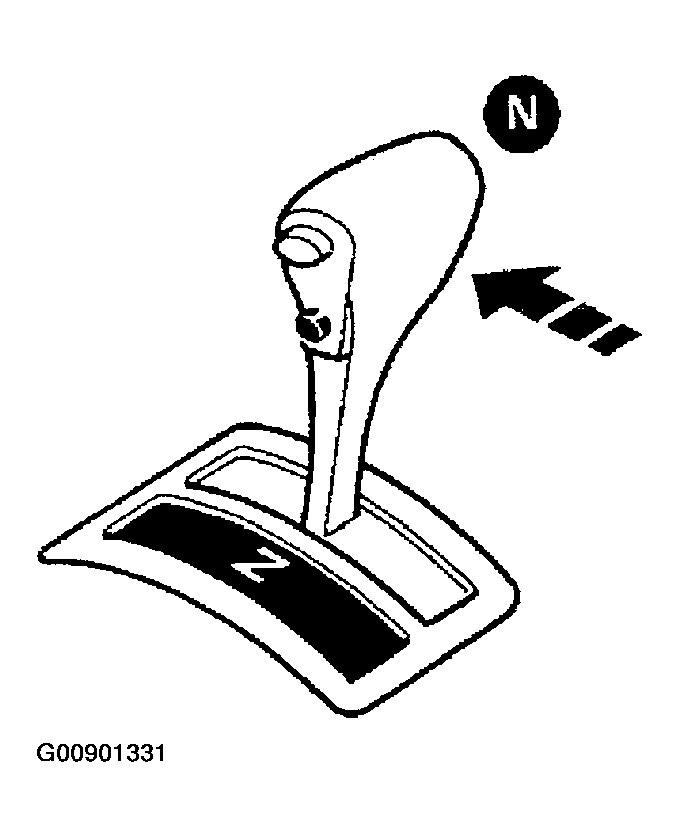

Fig 3: Moving Selector Lever To "N" Position
G00901331Courtesy of NISSAN MOTOR CO., U.S.A.
